Flir - Vue TZ20-R - 60hz

  • $7,500.00

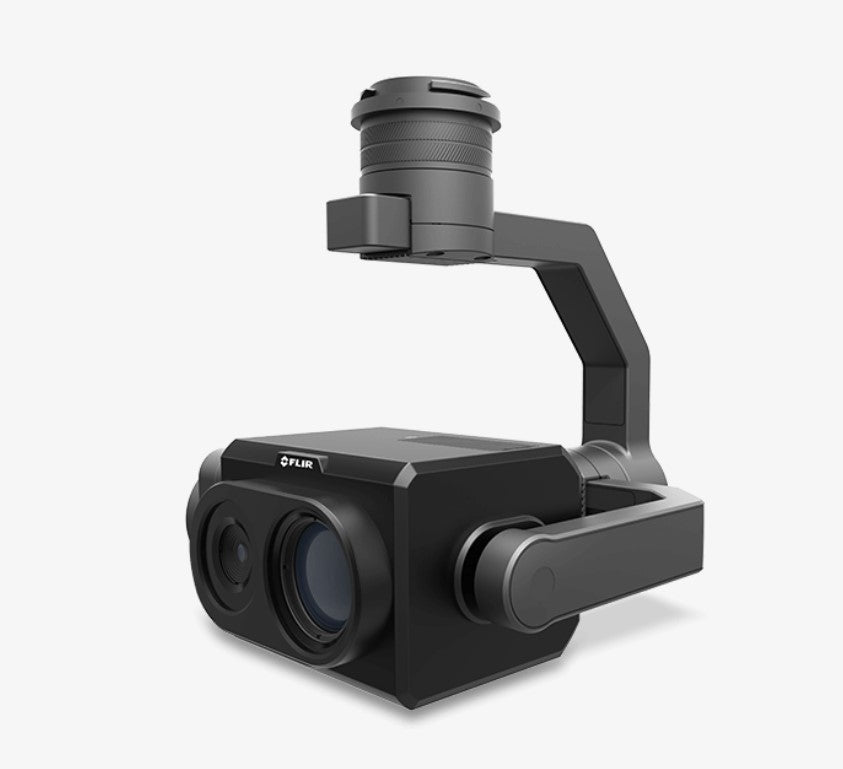

HIGH RESOLUTION GIMBALIZED DUAL THERMAL ZOOM PAYLOAD

The FLIR VUE TZ20-R Radiometric Thermal Zoom Payload for DJI V2 Matrice 200/300 drones enables pilots to see and measure thermal details not possible with some other leading sUAS aircraft and payloads. The TZ20-R features two FLIR Boson thermal cameras with 5, 10, and 20x zoom capability. Utility, roofing, solar farm, and other industrial inspectors can zoom into objects of interest, identify them with clarity, and take and record radiometric temperature measurements, all from a safe distance. In addition, emergency response pilots in search and rescue, law enforcement, firefighting, and public safety can search and observe in silence while using the thermal zoom to reduce false positives and make critical decisions faster.

Search and Inspect More Area in Less Time

Unmatched thermal zoom performance and clarity at 5, 10, and 20×.

Safely and Accurately Measure Temperature from Farther Away

Dual Bosons provide 4× more radiometric pixels on target at every zoom level versus all competitors.

Ready to Fly and Measure

Plug-and-play with DJI Matrice 300, DJI V2 Matrice 200 series, and post-process reporting software.

FLIR Vue TZ20-R Specs

Electrical Interface: Skyport 2.0, 13.6 V, 2 A
Environmental Sealing: IP44
Operational Temperature: -4 to 113°F / -20 to 45°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Tested EMI Performance: FCC Part 15 Class B
Imaging Streaming Video: 640 x 512 at 25 Hz
IR Camera Optics (Wide): FOV 95°, HFOV 4.9 mm EFL
IR Camera Optics (Narrow): FOV 18° HFO 24 mm EFL
Measurement Thermal Sensitivity: 85 mK at f/1.0
Mechanical Skyport 2.0, X-Port DJI Gimbal
Radiometric Data Accuracy: 5% at ±41°F / 5°C
For Scenes: 50 to 212°F / 10 to 100°C
Scene Dynamic Range: 14 to 572°F / -10 to 300°C
Pixel Pitch 12 µm LWIR
Recording Still: Radiometric JPEG, Raw, TIFF
Still Periodic Capture: 1 to 30-Second Interval (All Still Image Formats)
Video (MPEG): 25 Hz (Zoomed)
Video (Radiometric CSQ): 5 Hz (Zoomed)
Video (Raw Multipage TIFF): 10 Hz (Wide & Narrow FOV Separate)
Array Format 2 x FLIR Boson, 640 x 512
Other Airframe Compatibility: DJI V2 Matrice 200-Series and Matrice 300
Gimbal Range of Motion (3-Axis Pitch): 30° to -120°
Gimbal Range of Motion (Yaw): ±270°
Ground Control: DJI Pilot App
Measurement Functions: Spot Meter, Measurement Box with Min/Max/Average Isotherms Above or Below Threshold Temperature
