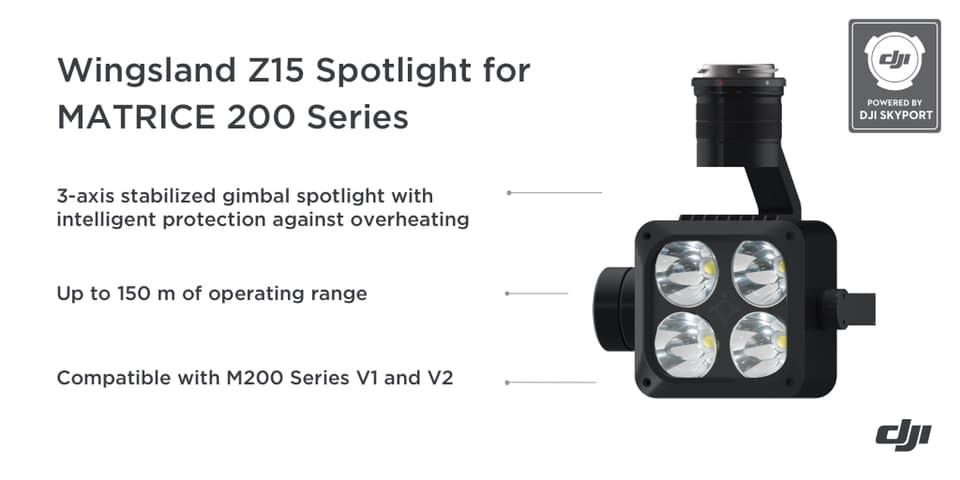

DJI - Wingsland Z15 Gimbal Spotlight for Matrice 200 series

WINGSLAND Z15 GIMBAL SPOTLIGHT FAQ

●Which platform does Z15 support?
A: Support M200 V1 series and M200 V2 series; Matrice 300 Series

●How to install Z15 to the drone?
A: Z15 is designed based on the DJI SKYPORT and can be directly installed to the M200 drone, the same steps as installing DJI Zenmuse camera;

●How to install Z15 to the M210 dual downward gimbal slot?
A: If Z15 is used with ZENMUSE X5S/X7/XT2, please install Z15 to II position gimbal slot; B: If the Z15 is used alone, please install the Z15 to I position gimbal slot;

●Does Z15 support the M210 V1 dual Downward Gimbals?
A: The M210 V1 dual Downward Gimbals function needs to update the drone firmware to the latest;

●Does Z15 support DJI PILOT?
A: Yes, DJI PILOT officially supports natively, no need to install third-party application APP;

●What are the characteristics of Z15 compared to the M2E spotlight? A:

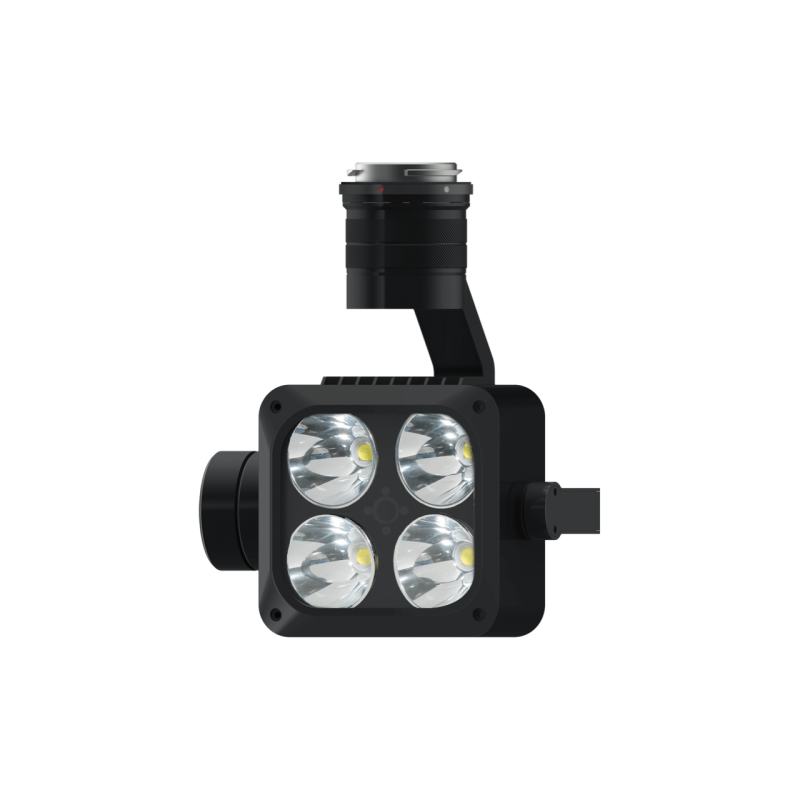

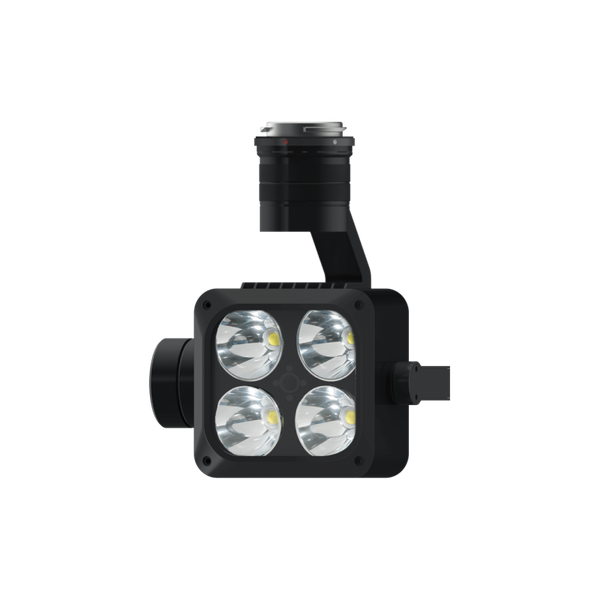

Z15 has a 3-axis gimbal for flexible adjustment of the lighting angle;
Using 4 high-power Cree lamp beads, power up to 68W, luminous flux up to 10200lm; Supporting dual Downward Gimbals with DJI Zenmuse camera;

●What is the actual lighting effect of Z15?
A: Under the overhead light of 120 meters, the ground staff can read the newspaper;

●What is the area illuminated by Z15 at different flight altitudes?
A:At an altitude of 120 meters, the area illuminated by the ground is 1863 m², which is equivalent to the area of 5 standard basketball courts;
At an altitude of 50 meters, the area illuminated by the ground is 323 m², which is equivalent to a standard basketball court area;

●Is Z15 spotlight harmful to the human eye? A: Please don't illuminate the human eye;
