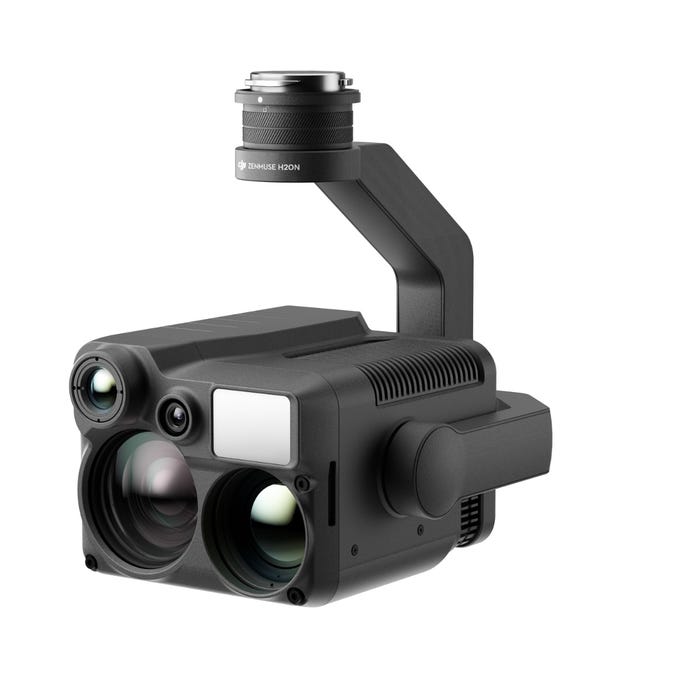

DJI - Zenmuse H20N SP Plus

The Zenmuse H20N's zoom and wide-angle cameras are equipped with starlight sensors, which enhance its performance. When you combine this with twin zoom thermal cameras and a laser rangefinder, you have a highly adaptable hybrid payload that can handle any situation. Combine these with the Matrice 300 and you will be able to see beyond the cover of darkness.

  • Starlight Night Vision
  • 640×512 Dual Thermal Cameras; 2× and 8× Optical Zoom
  • 20× Hybrid Optical Zoom
  • Laser Rangefinder; 1200 m Max Range

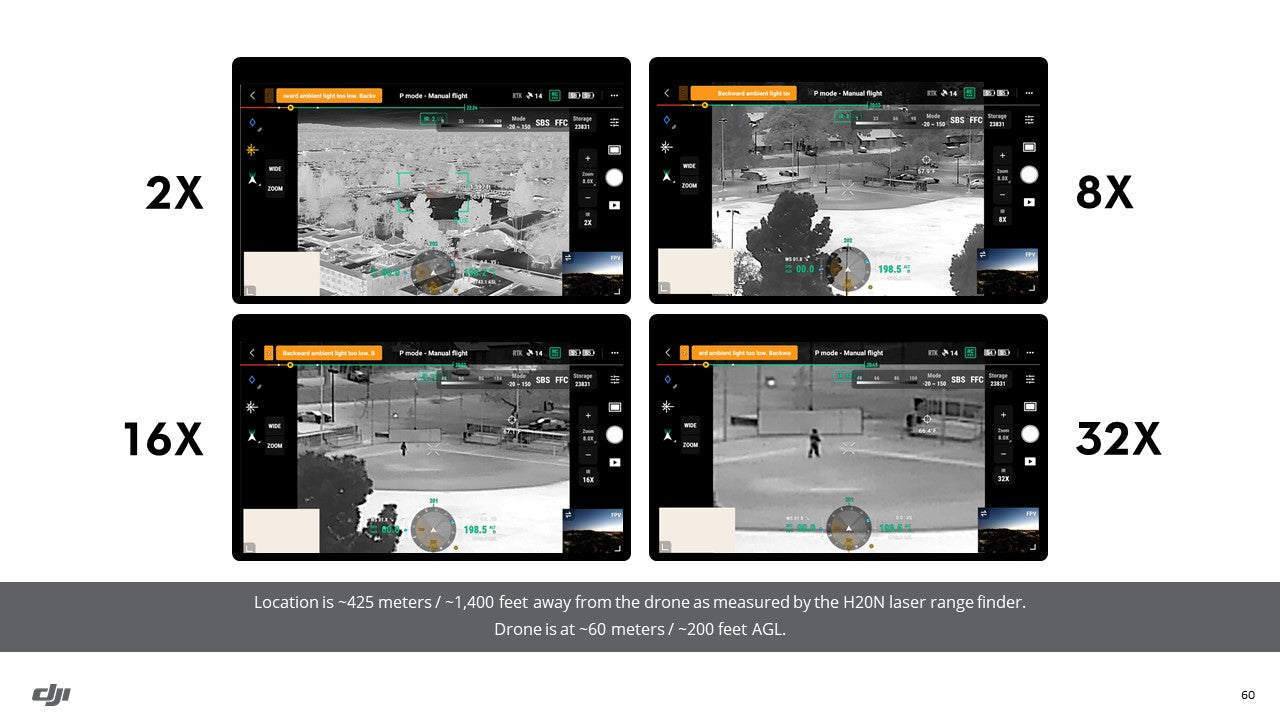

  • Synchronized Split-screen Zoom
  • Intelligent Night Scene Enhancement

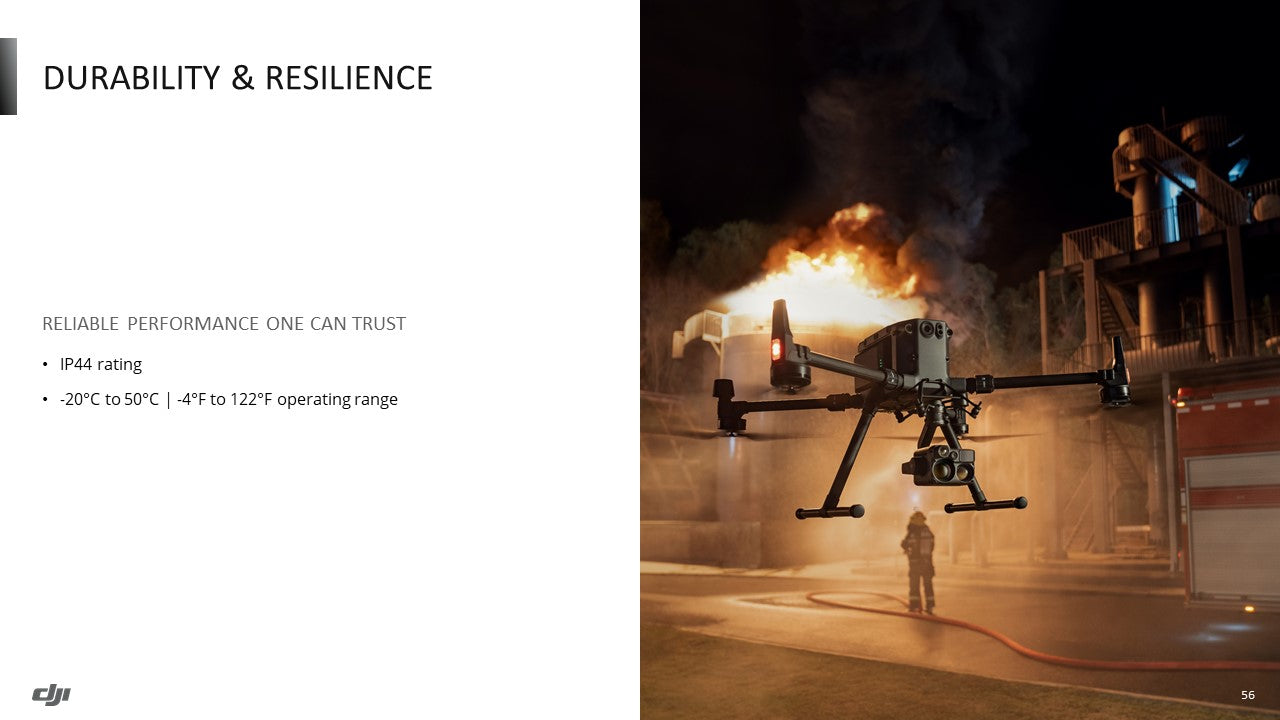

  • IP44 Rating
  • -20°C to 50°C Operating Temperature

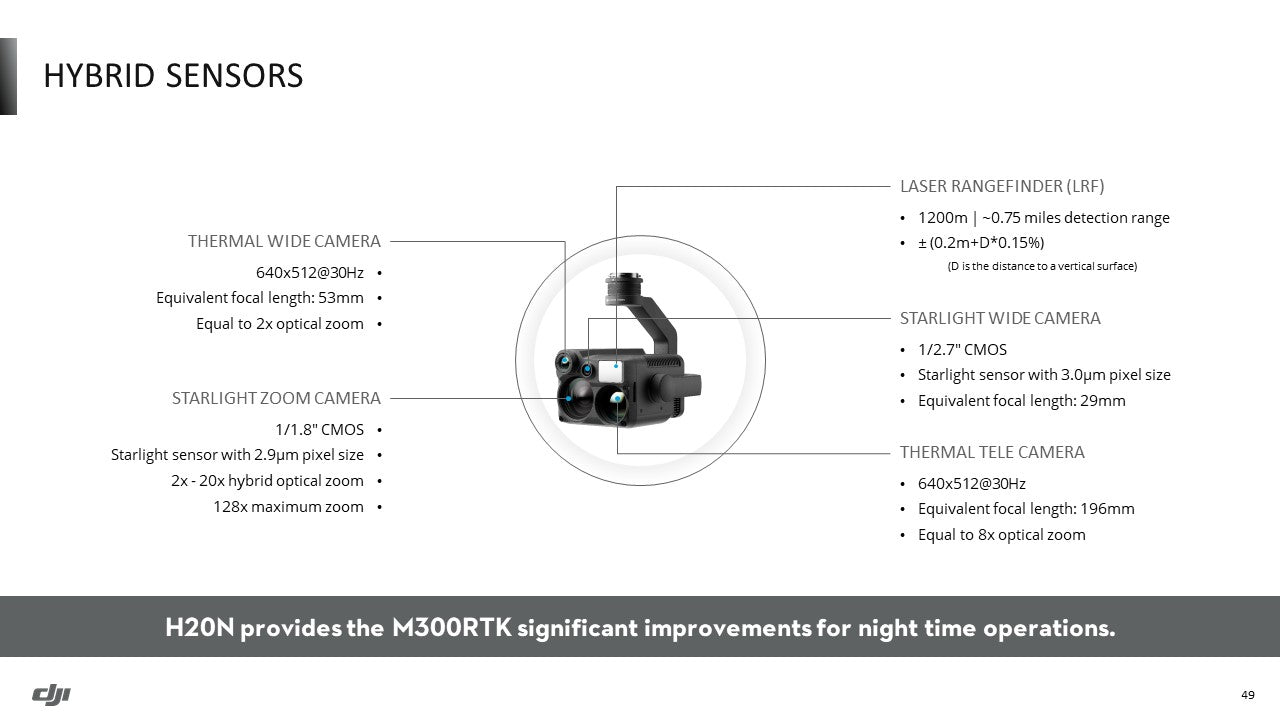

Sensors have been upgraded in a variety of dimensions.

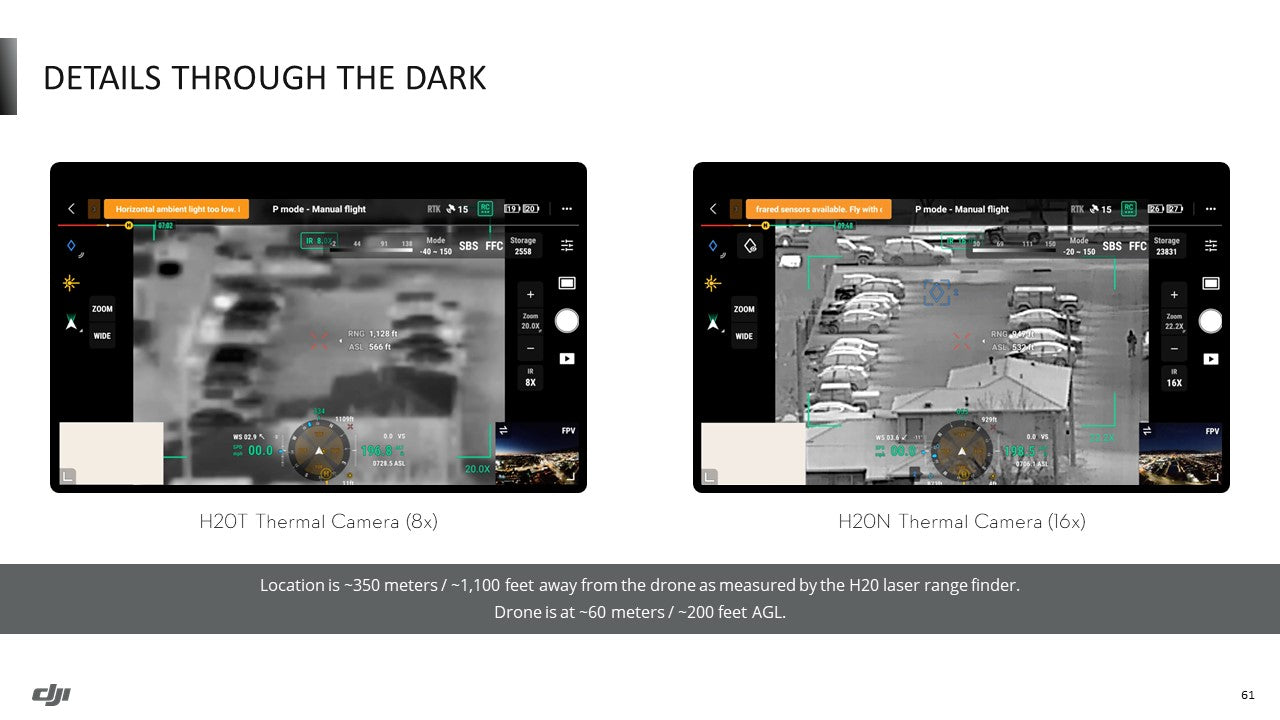

Infrared Zoom

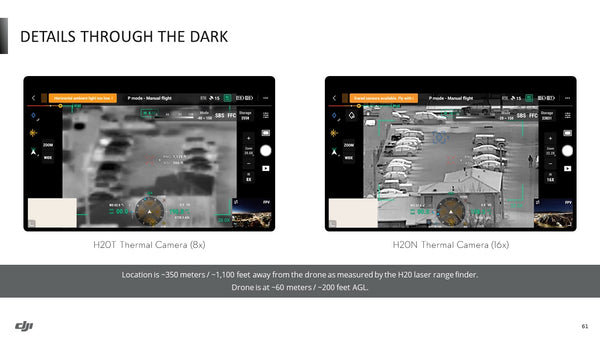

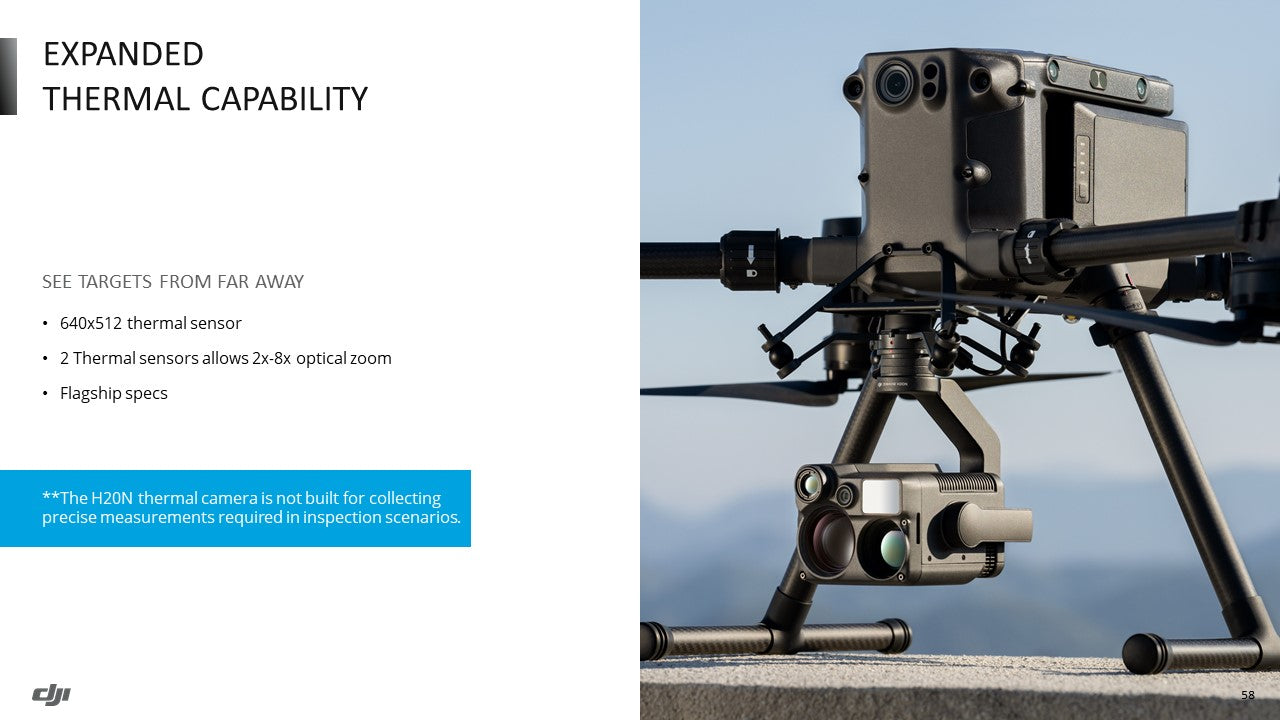

Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm) 8x Zoom (Equivalent Focal Length: 196 mm)

See the Big Picture

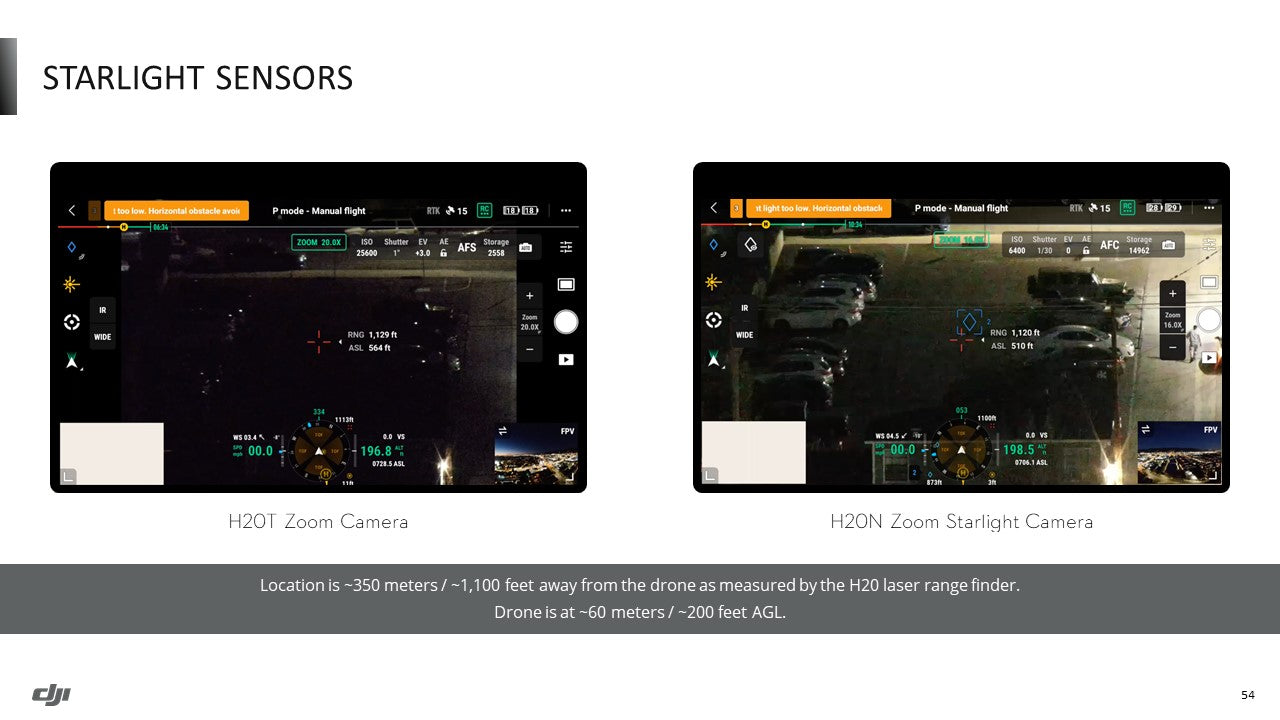

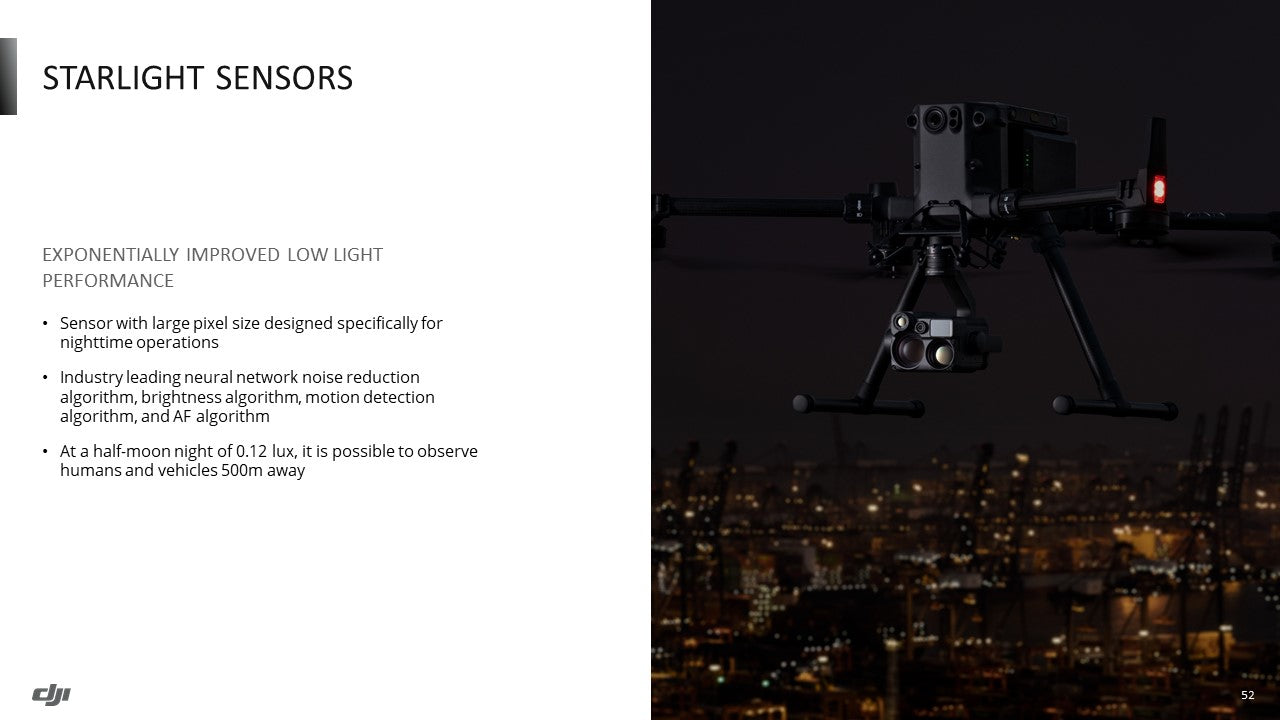

Night Vision Wide Camera Starlight Sensor: 2MP
Stronger Low-Light Performance

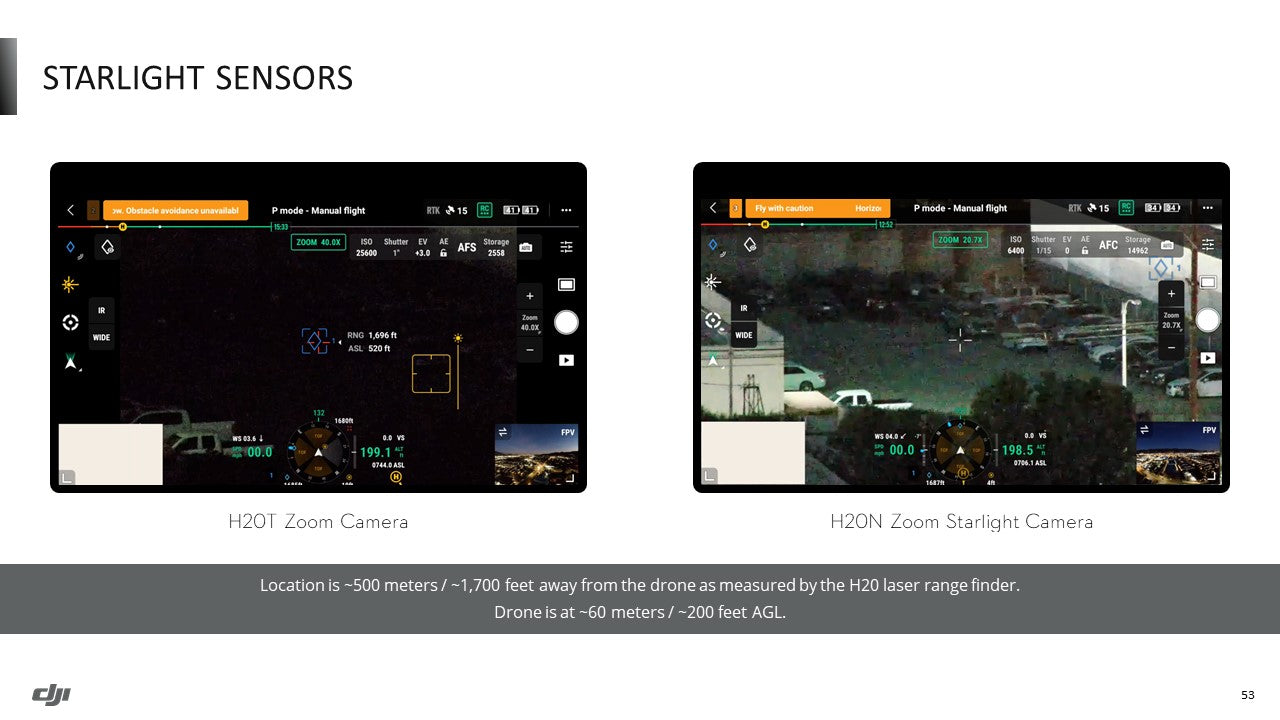

Pierce Through the Veil
Night Vision Zoom Camera Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom Low-Light Details

Precise Distance Data
Laser Rangefinder
Range: 3 m to 1200 m Accuracy: ± (0.2 m + D×0.15%)



General

  • Product Name: Zenmuse H20N
  • Dimensions: 178x135x161 mm
  • Weight: 878±5 g
  • Protection Rating: IP44
  • Laser Safety: Class 1M (IEC 60825-1:2014)
  • Supported Aircraft: Matrice 300 RTK

Gimbal

  • Angular Vibration Range: ±0.01°
  • Mount: Detachable

Zoom Camera

  • Sensor: 1/1.8" CMOS; Effective Pixels: 4M
  • Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) | Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night) | Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)

Wide Camera

  • Sensor: 1/2.7" CMOS; Effective Pixels: 2M
  • Lens: DFOV: 73.6° | Focal Length: 4.5 mm (equivalent: approximately 29 mm) | Aperture: f/2.8 | Focus: 1 m to ∞

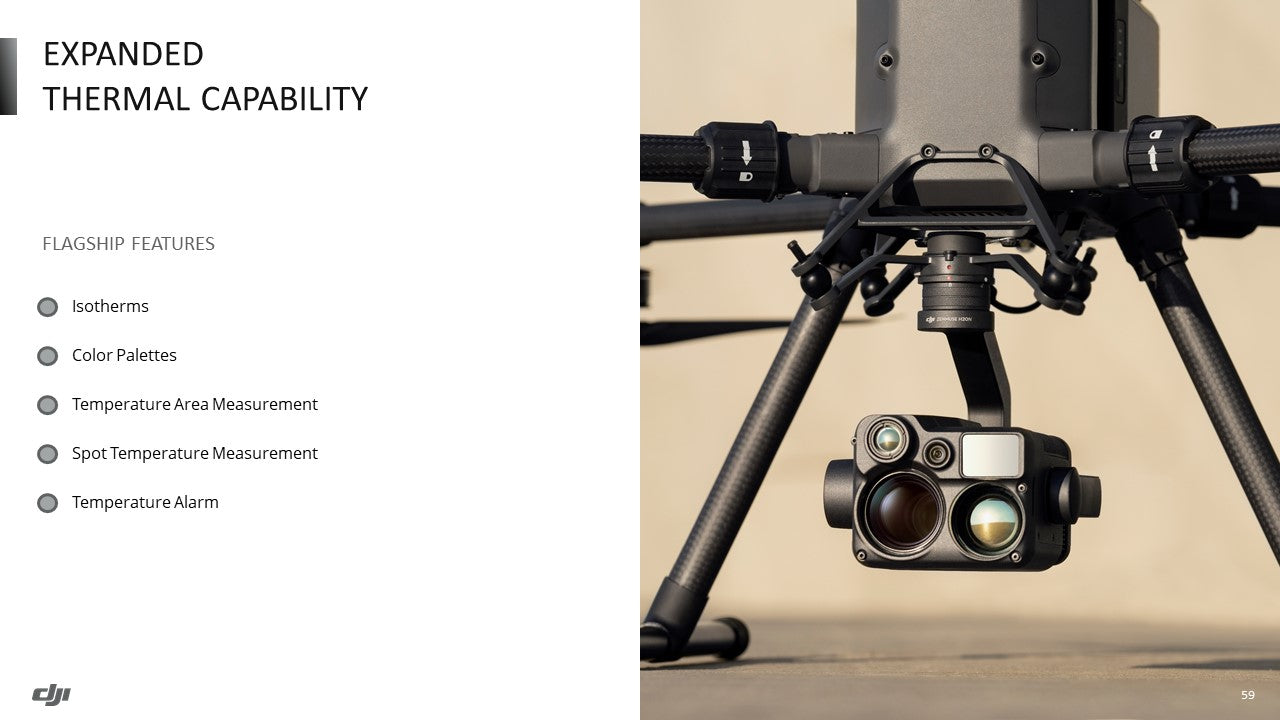

Tele Infrared Thermal Camera

  • Thermal Imager: Uncooled VOx Microbolometer
  • Lens: DFOV: 12.5° | Focal Length: 44.5 mm (equivalent: approximately 196 mm) | Aperture: f/1.2 | Focus: 45 m to ∞

Wide Infrared Thermal Camera

  • Thermal Imager: Uncooled VOx Microbolometer
  • Lens: DFOV: 45.5° | Focal Length: 12 mm (equivalent: approximately 53 mm) | Aperture: f/1.0 | Focus: 5 m to ∞

Laser Range Finder

  • Wavelength: 905 nm
  • Maximum Power: 3.5 mW
  • Single Pulse Width: 6 ns
  • Measuring Accuracy: ± (0.2 m + target distance x 0.15%)
  • Measuring Range: 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)

Storage

  • Supported microSD Cards: Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
  • Supported File System: exFAT

Environment

  • Operating Temperature: -20° to 50° C (-4 to 122°F)
  • Storage Temperature: -20° to 60° C (-4 to 140°F)



DJI Zenmuse H20N x1
