Quantum Systems - Micasense RedEdge-P

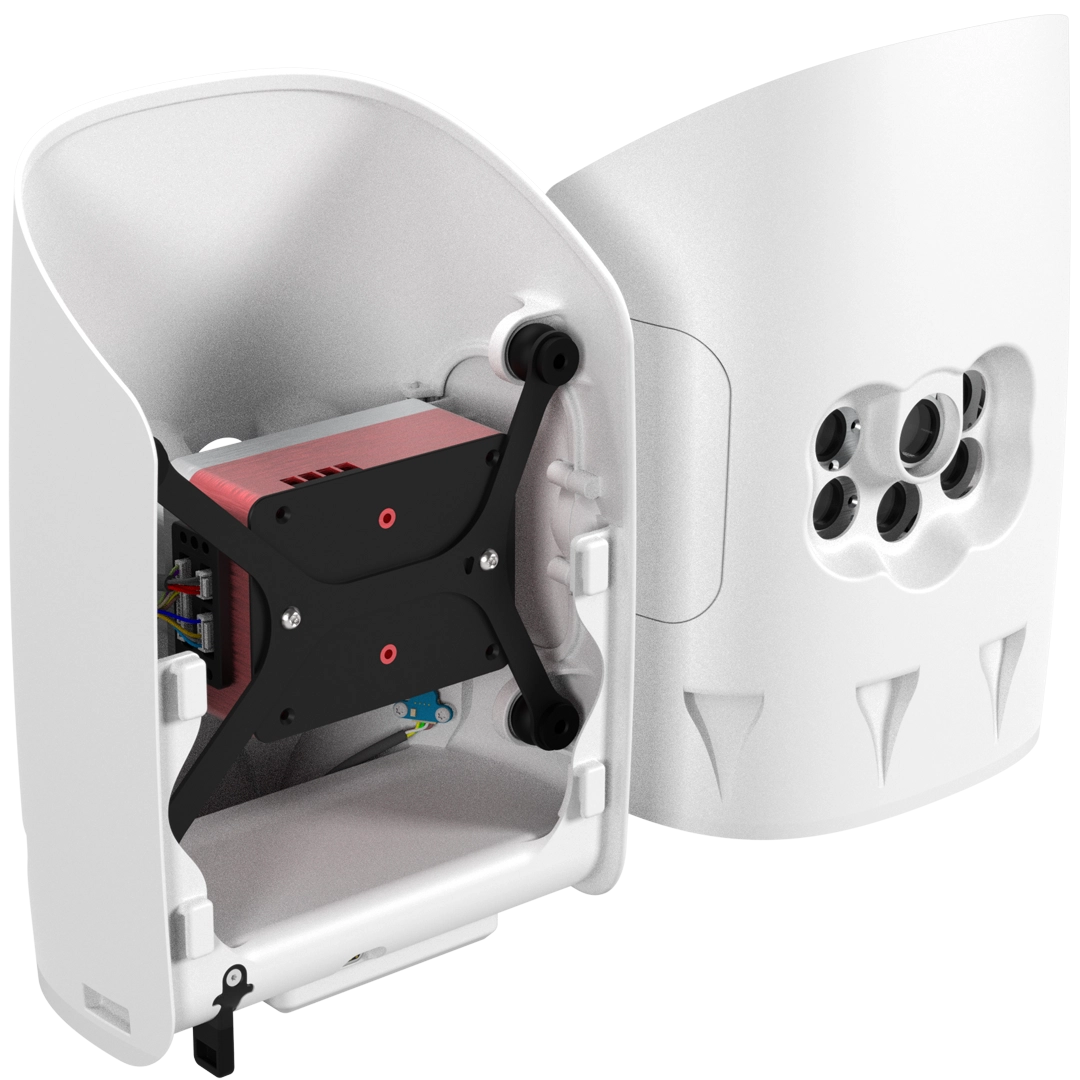

MicaSense RedEdge-P

RGB and Multispectral Camera

The RedEdge-P is the ultimate premium solution for high res RGB and multispectral data applicable for agriculture, forestry, environmental monitoring and more.

The RedEdge-P is the premium multispectral sensor for general plant health monitoring plus plant counting, early weed detection and other tasks requiring machine learning. With pan-sharpening.

RedEdge-P Sensor
Technical Specification

Sensor resolution 1456 x 1088 (1.6MP per MS band), 2464 x 2056 (5.1MP panchromatic band)
Wave length Blue (475 nm center, 32 nm bandwidth), Green (560 nm center, 27 nm bandwidth),
Red (668 nm center, 14 nm bandwidth), RedEdge (717 nm center, 12 nm bandwidth),
near-IR (842 nm center, 57 nm bandwidth)
RGB Color output 5.1 MP (global shutter, aligned with all bands)*
GSD 7.7 cm per pixel (per MS band) at 120m (~400 ft) AGL 3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL
Exposure Interval 0.8s
Interfaces 3 configurable GPIO / select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage
Field of view 50° HFOV x 38° VFOV (MS), 44° HFOV x 38° VFOV (PAN)
Storage CFexpress Card
Payload weight RTF 504 g
Dimensions 8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in)
External power 7.0 V – 25.2 V
Power input 5.5/7.0/10W (standby, average, peak)

*with appropriate post-processing
