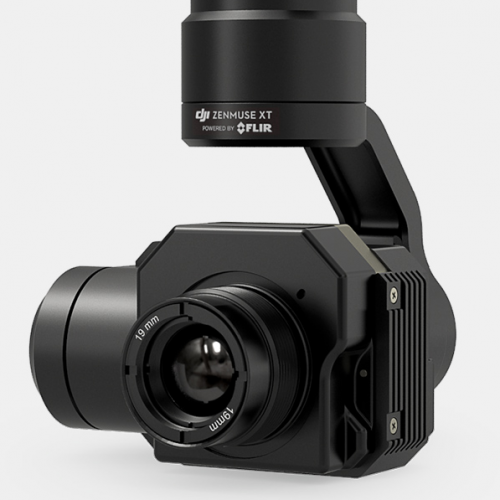

The DJI Zenmuse XT 640 resolution makes aerial thermal imaging easier than ever. DJI is the industry expert in gimbal technology and image transmission. Meanwhile FLIR is leading the industry in thermal imaging technology. DJI and FLIR combined their expertise to create the Zenmuse XT. The Zenmuse XT is the best solution for quick and reliable thermal imaging from the air.
Integrated Thermal Camera
FLIR developed the camera on the DJI Zenmuse XT. This model provides high-sensitivity (50mK) thermal imaging at 640/30 fps. The high sensitivity provides extremely accurate temperature measurements making it ideal for analytics. A custom DJI gimbal controls the Zenmuse XT. The gimbal provides beautiful imagery and 360 degrees of seamless rotational movement.
Thermal Imager
Uncooled VOx Microbolometer
FPA/Digital Video Display Formats
640 x 512
336 x 256
Pixel Pitch
17 m
Full Frame Rates
30 Hz (NTSC) 25 Hz (PAL)
Exportable Frame Rates
<9Hz *
Sensitivity (NEdT)
<50 mK at f/1.0
Photo Formats
JPEG (8 bit) / TIFF (14 bit)
Video Format
MP4
Digital Zoom
2x, 4x, 8x
2x, 4x
Lens Options
7.5mm, 9mm, 13mm, 19mm
6.8mm, 9mm, 13mm, 19mm
*Please refer to the Export page for details about the Zenmuse XT in your market.
Precision Full-Screen Temperature Measurement
The Zenmuse XT 640 resolution camera provides twice the accuracy of the standard Zenmuse XT. It also has new analysis and recording functions. These functions allow you to view of the temperature of any part of the image that you tap. You can also select an area to see the highest, lowest, average temperatures, and their locations. You can calibrate the camera to increase the precision of temperature measurement. Do this by setting external parameters including background temperature, scene emissivity and more. If you capture photos in the TIFF format, you can record the temperature of each pixel for further processing and analysis. A temperature alert threshold can be set. When it detects the temperature, the threshold will activate. This capability could simplify and speed up search and rescue and inspection activities.
Applications
Image Enhancement Software
Infra-red imagery requires optimization to ensure the greatest definition for capturing information. The Zenmuse XT features a suite of image enhancements designed by FLIR. These enhancements include: Digital Detail Enhancement, Smart Scene Optimization, Active Contrast Enhancement, and Information Based HEQ (IBHEQ). Smart Scene Optimization enhances extremes in bi-modal scenes. Active Contrast Enhancement adjusts scene contrast relative to its temperature difference. Information Based HEQ compresses complex image data to create the best quality image.
Fingertip Control
You can control the Zenmuse XT completely through the DJI GO app. The app provides real-time, low latency view of what the camera sees. The app also provides access to core camera functions including the following:
Spot metering, temperature measurement at the mid-point
Digital zoom
Single or interval shooting modes
Photo, video preview and download
Take photos while recording video
Various camera settings and parameters including:
Palette, also referred to as Look-up Table (LUT)
Scene, also referred to as Automatic Gain Correction (AGC)
Region of Interest (ROI)
Isotherm mode
Seamless Efficiency
When used with either the Inspire 1 or the Matrice 100, you can put the Zenmuse XT into the air in seconds! It is seamlessly integrated, giving it complete access to key features. These features include the powerful Lightbridge video transmission system (providing up to 3.1 miles (5KM*) of HD range), automated Point of Interest, Course and Home Lock, Follow Me, and the DJI SDK.When combined with the Inspire 1, the Zenmuse XT works with incredible speed, efficiency and convenience. When used with the Matrice 100, the Zenmuse XT can stay in-flight for up to 35 minutes*. This is ideal for large scale inspections and is especially useful in search and rescue scenarios.Flight Time:
