Evo MAX 4T Bundle

SKU: evomax4t
Price
$8,999
Pre-Order - This product has recently launched and we have not recieved our initial batch. Please note all pre-orders are shipped out in the order they are received.

Pre-Order Today!

A Leader of Drone Intelligence

The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

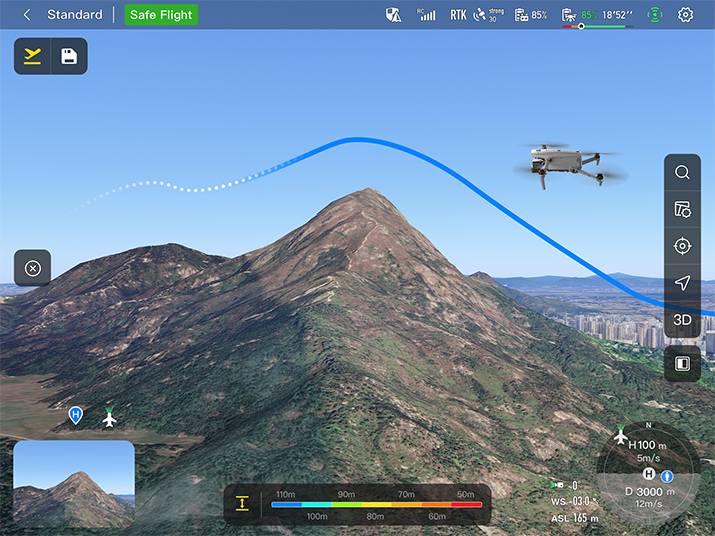

Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Navigation in GPS Denied Environment
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.

Accurate Object Identification and Tracking
Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

Specifications:

Aircraft

Weight

3.5 lbs (1600g, battery and gimbal included)

Dimensions

576*660*149 mm (folded, incl. propellers)

340*407*148 mm (folded, excl. propellers)

257*136*133 mm (unfolded, excl. propellers)

Diagonal Wheelbase

1.52 ft (464mm)

Max Ascent Speed

8m/s

Max Descent Speed

6m/s

Max Horizontal Speed (windless near sea level)

23m/s

Max Service Ceiling Above Sea Level

23000ft (7000m)

Max Flight Time (windless)

42 mins

Max Hovering Time (windless)

38 mins

Max Wind Resistance

27mph*

*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).

IP Rating

IP43

Max Tilt Angle

35°

Max Angular Velocity

Pitch: 300°/s; Yaw: 120°/s

Operating Temperature

-4°F to 122°F (-20℃ - 50℃)

Operating Frequency

2.4G/5.2G*/5.8G/900MHz*

Transmitter Power (EIRP)

2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC)

5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE)

5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)

5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)

Hovering Accuracy

Vertical:

±0.1 m (Vision System enabled);

±0.3 m (GPS enabled);

±0.15 m (RTK enabled);

Horizontal:

±0.15 m (Vision System enabled);

±0.3 m (GPS enabled);


Gimbal

Mechanical Range

Pan: -135° to 45°

Tilt: -45° to 45°

Roll: -45° to 45°

Controllable Range

-90° to 30°

Stable system

3-axis mechanical gimbal (pan, tilt, roll)

Max Control Speed (pitch)

200º/s

Angular Vibration Range

<0.005°


Zoom Camera (Telephoto)

Sensor

1/2" CMOS, Effective pixels: 48M

Lens

Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm)

Aperture: f/2.8-f/4.8

Exposure Compensation

±3EV 0.3EV/step

ISO Range

Normal Mode:

Auto: ISO100 ~ ISO6400

Manual:

Photo: ISO100 ~ ISO12800

Video: ISO100 ~ ISO6400

Shutter Speed

Photo: 8s ~ 1/8000s

Video: 1s ~ 1/8000s

Max Photo Size

8000×6000

Max Video Resolution

7680×4320


Wide Camera

Sensor

1/1.28 CMOS, Effective pixels: 50M

Lens

DFOV: 85°

Focal length: 4.5 mm (equivalent: 23 mm)

Aperture: f/1.9

AF motor: 8-wire SMA, PDAF focus

Exposure Compensation

±3EV 0.3EV/step

ISO Range

Auto:

Photo: ISO100~ISO6400

Video: ISO100~ISO64000 (Night scene mode: up to ISO64000)

Manual:

Photo: ISO100~ISO12800

Video: ISO100~ISO6400

Shutter Speed

Photo: 8s ~ 1/8000s

Video: 1s ~ 1/8000s

Max. Video Resolution

3840×2160

Photo Size

8192*6144

4096*3072




Thermal Camera

Thermal Imager

Uncooled VOx Microbolometer

Lens

DFOV: 64°

Aperture: 13mm

Focus: f/1.2

Infrared Temperature Measurement

Accuracy

26.6~37.4 ℉ or reading ±3% (using

the larger value) @ambient

temperature -4℉ to 140℉

Video Resolution

640*512

Photo Size

640*512

Pixel Pitch

12 um

Temperature Measurement Method

Center measurement, pot measurement, rectangular measurement

Temperature Measurement Range

-4℉ to 302℉, 32℉ to 1022℉ (-20°C to

150°C, 0 to 550°C)

Temperature Alert

High and low temperature alarm thresholds, reporting coordinates and temperature values



Laser Range Finder

Measurement Accuracy

±1m

Measuring Range

1.2km


Image Transmission

Operating Frequency

2.4G/5.2G*/5.8G/900MHz*

*5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

Max Transmission Distance

(unobstructed, free of interference)

20km(FCC), 8km(CE)

Independent Networking

Autel Smart Controller V3

Transmitter Power (EIRP)

2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC)

5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE)

5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC)


Autonomy

Non-GPS Hovering and Manual Flight

Indoor: Horizontal error ≤3cm (At least have texture at one direction)

Outdoor:

Daytime: Within 500m flight height, horizontal error < 0.01*height

Night: Manual flight is controllable within 100m flight height

Non-GPS Return-to-Home

Within 500m flight height, horizontal error of Return-to-Home point < 30cm

Automatic Obstacle Rerouting

High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m

High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.5m

Multi-target Recognition and Tracking

Target identification types: people, vehicles, boats

Number of targets detected: 64

Comprehensive recognition accuracy: > 85%


Millimeter-wave Radar

Frequency

60Ghz~64Ghz

Size

38*14*2mm

Weight

2g

EIRP

18dbm

Distance Detection Range

For Obstacle Avoidance:0.2m~100m

For Height Measurement:0.05m~200m

Ranging Accuracy

For Obstacle Avoidance:0.1m

For Height Measurement:0.02m

Speed Measurement Range

± 60m/s(4D Mode);±28m/s(3D Mode);

Speed Measurement Accuracy

≤1%

Max. Tracking Target Number

32


Visual Sensing System

Obstacle Sensing Range Forward/Upward/Downward/Backward/Sideward: 0.2~50m
FOV Forward/Backward/Sideward: 60°(H),80°(V)
Upward/Downward: 360°(H),190°(V)


Autel Smart Controller V3

Screen

7.9 inch, 2000nits max. brightness, 2048*1536 resolution

External Battery

Capacity: 5800mAh

Voltage: 11.55V

Battery Type: Li-on

Energy: 67Wh

Charing time: 120mins

Intelligent Lithium Ion Battery

Operating Time

3 hours (Max. brightness)

4.5 hours (50% brightness)

Max Transmission Distance

(with interference)

FCC: 20km

CE: 8km

IP Rating

IP43

Storage

128G

GNSS

GPS+GLONASS+Galileo+Beidou

Operating Temperature

-20℃ to 40℃

Wi-Fi Protocol

WiFi Direct, Wi-Fi Display,

802.11a/b/g/n/ac

Support 2 x 2 MIMO Wi-Fi

Operating Frequency

2.400 - 2.4835 GHz;

5.150 - 5.250GHz;

5.725 ‒ 5.850 GHz

Transmitter Power (EIRP)

2.400 - 2.4835 GHz

FCC/CE:≤20dBm

5.150 - 5.250GHz

FCC:≤17dBm

5.725 ‒ 5.850 GHz

FCC:≤17dBm

CE:≤14dBm


Aircraft Battery

Capacity 8070mAh
Voltage 14.88V
Battery Type LiPo 4S
Energy 120wh
Net Weight 520g
Charging Temperature 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in
a low temperature may shorten the lifetime of the battery)
Hot Swap Support

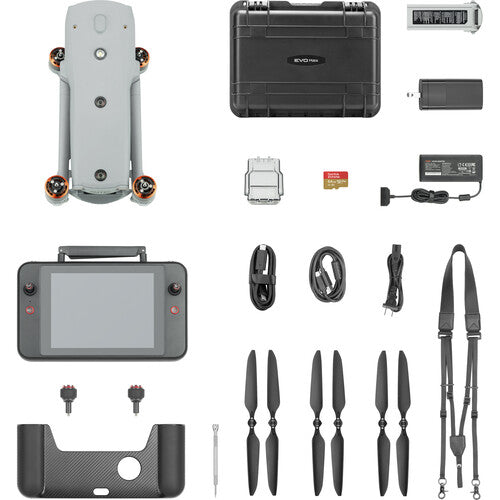

In The Box

Aircraft (battery, propeller, gimbal, gimbal cover, 64G SD card included) x1
Battery Charge + Power Cable x1
Spare Propeller (pair) x1
Repair Tool Kit x1
Smart Controller v3 x1
Smart Controller Lanyard x1
Smart Controller Cover x1
Smart Controller Spare Joystick (pair) x1
RC Charger x1
RC Charging Cable x1
Data Cable x1
Manuals
Rugged Case
