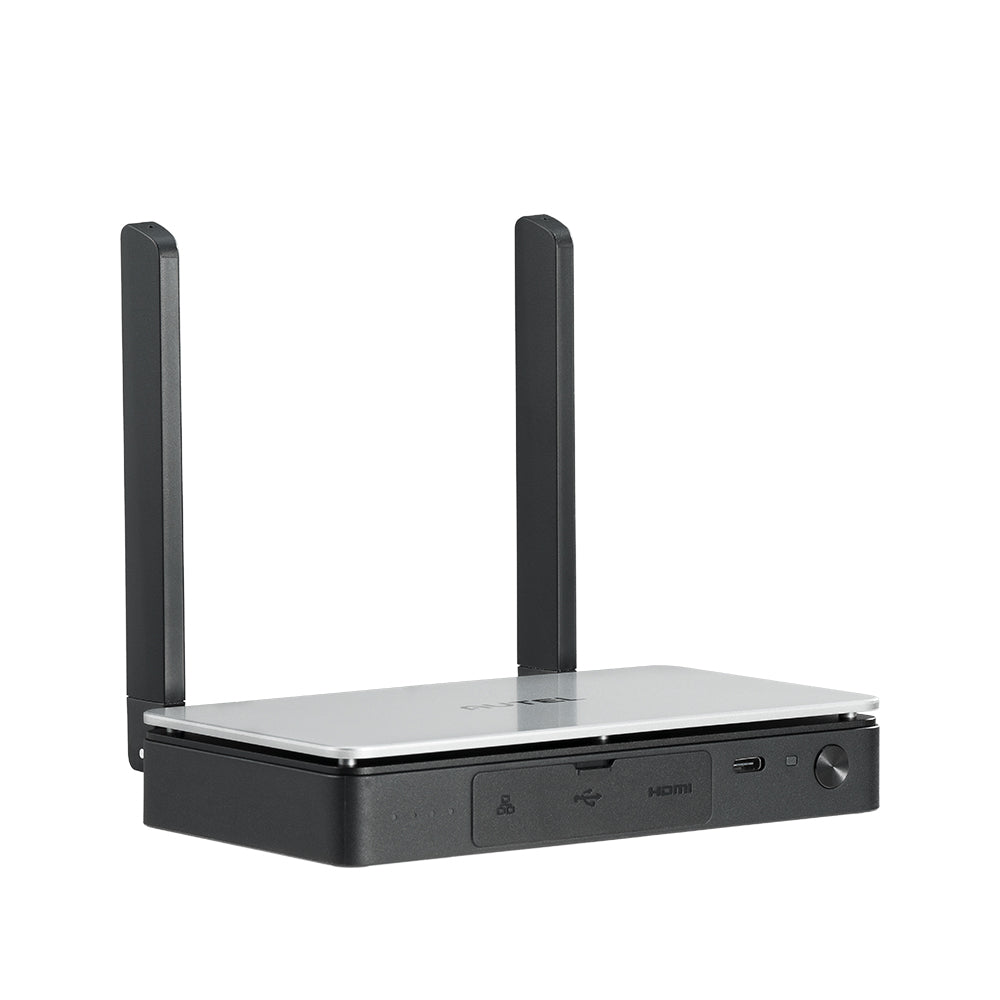

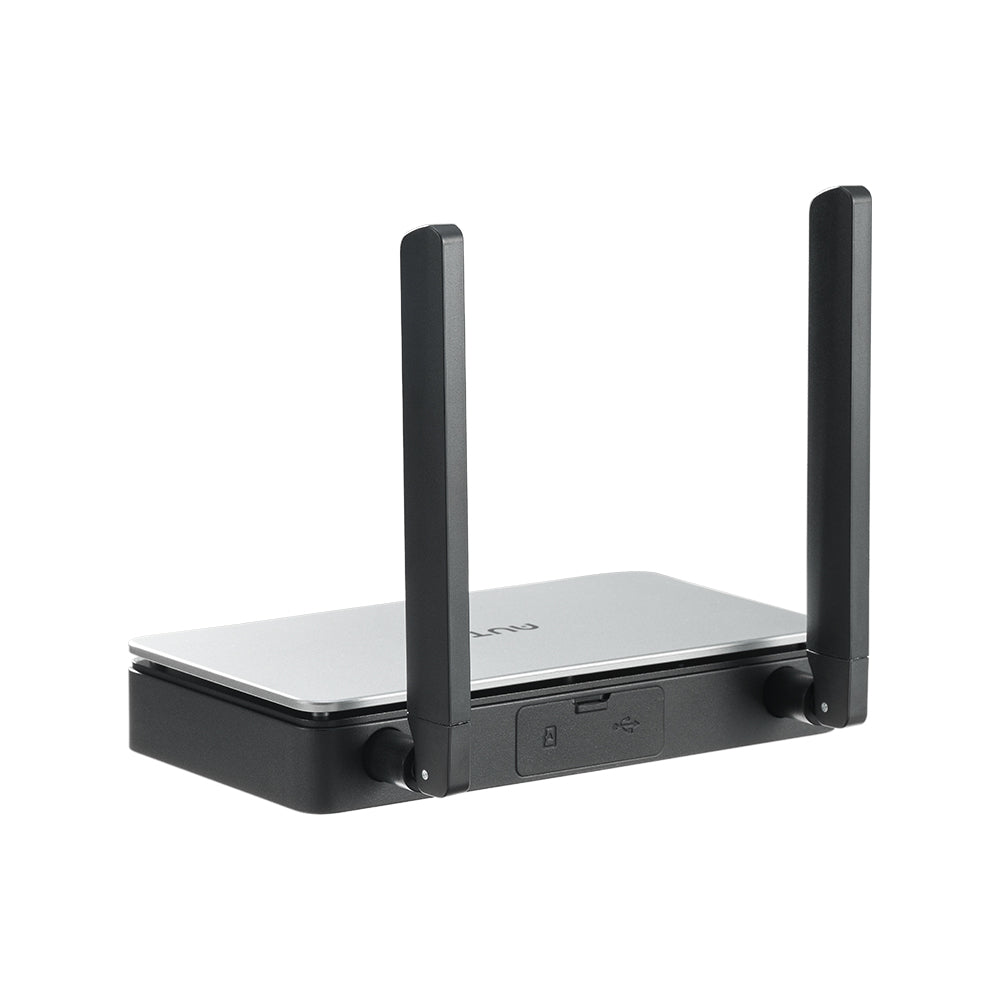

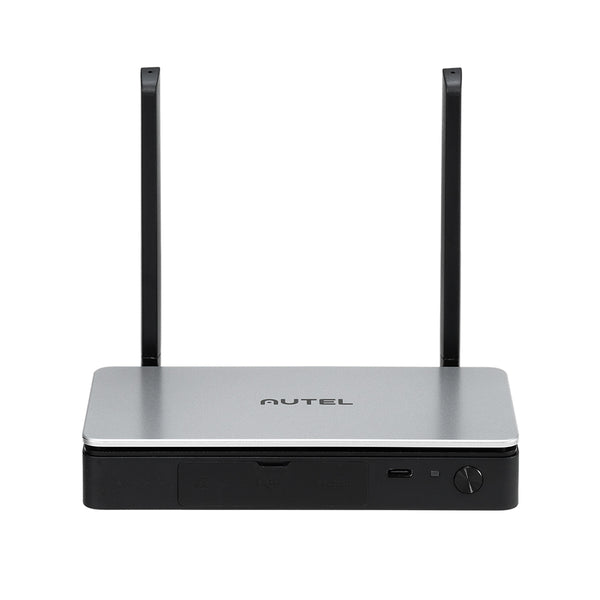

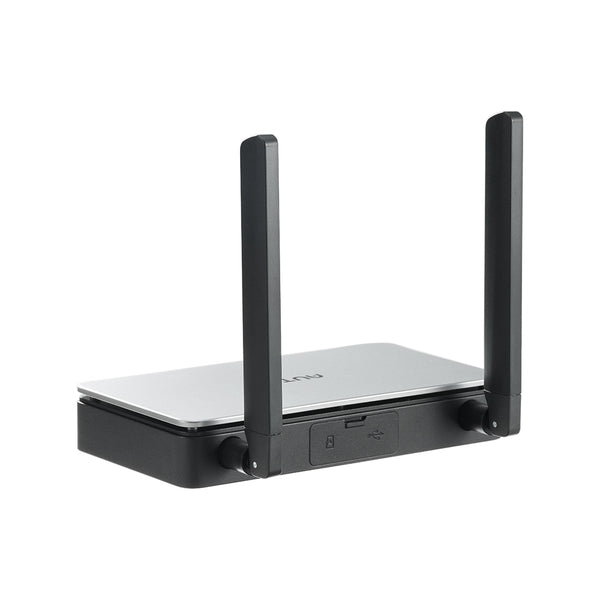

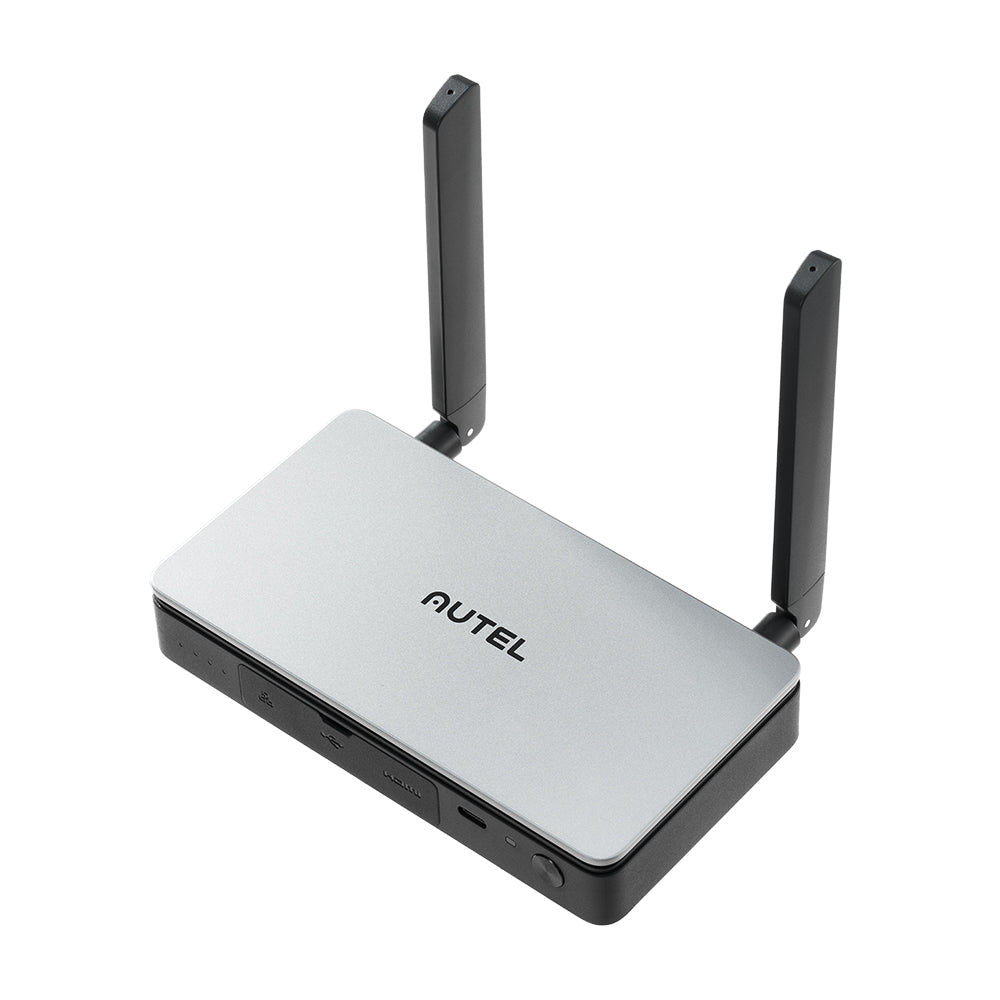

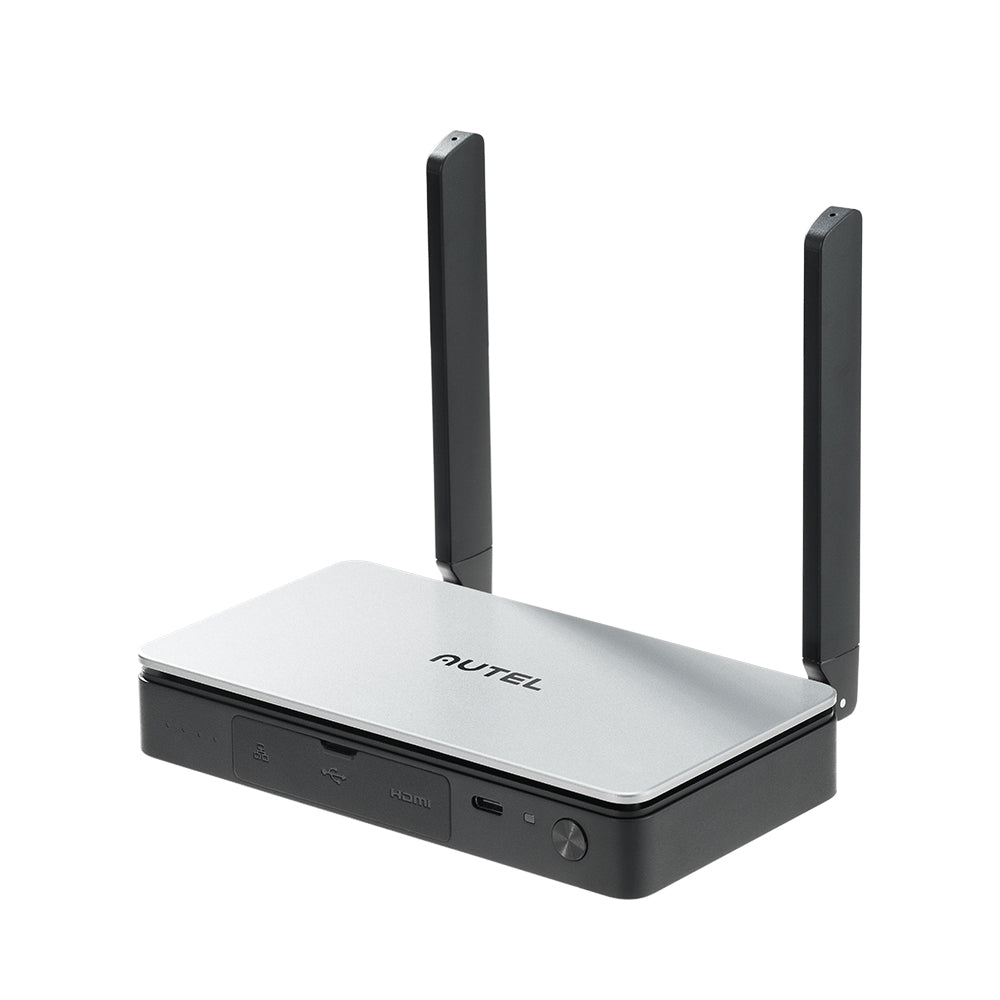

Autel Robotics Live Deck 2 (for V3 drones)

SKU: 102001438
Price
$699
In stock! Usually ships within 1-2 business days
Pickup available at 209 S Tower Avenue

Usually ready in 2 hours

View store information

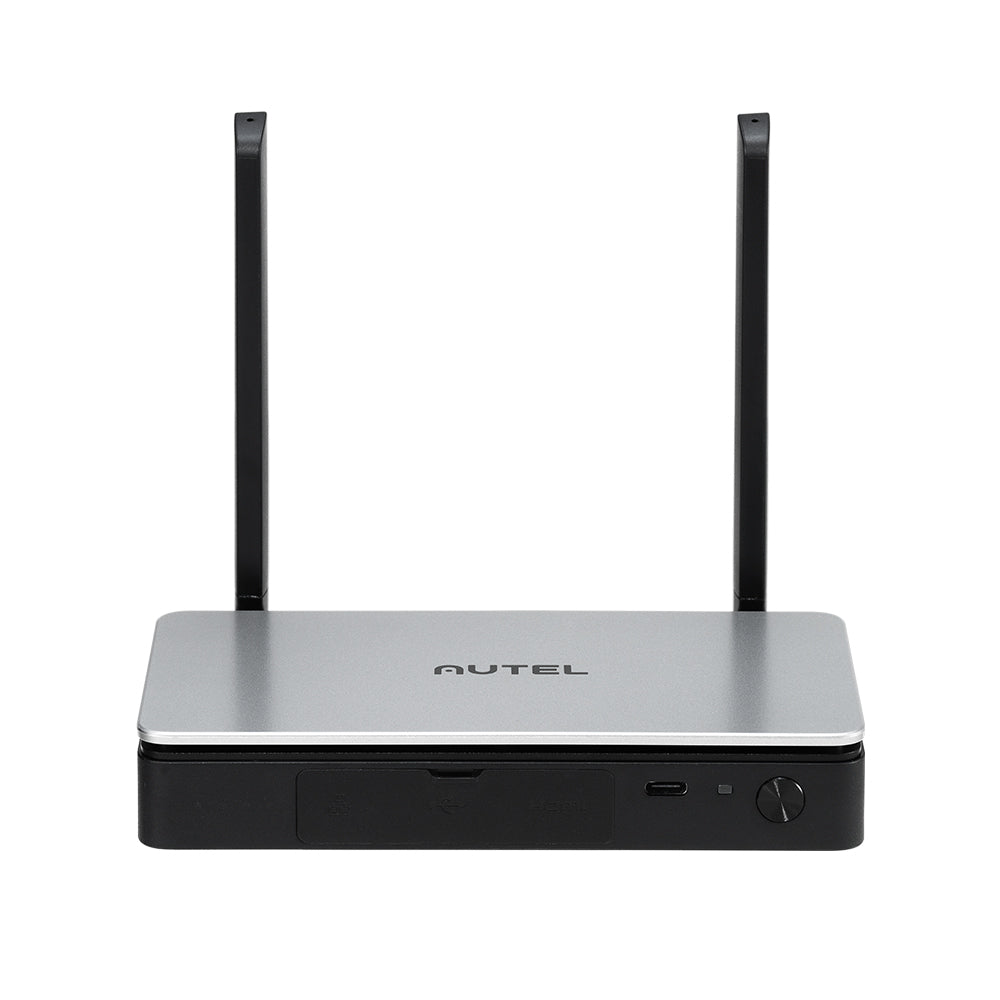

Broadcast with Live Deck 2

Live Deck (Android-based) transmits real-time full HD video to your TV, computer, and/or multiple cell phones s via Ethernet, USB-A, HDMI interface, or livedeck generated WiFi. Adopted with upgraded image transmission technology, its anti-interference ability is times greater than Live Deck 1. It supports 2.4GHz/5.8GHz/900MHz working frequency.

Multi-Band Strong Transmission

Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency have improved greatly.

Advanced Signal Anti-Interference System

Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/workflow in difficult working environments.

Stream Anywhere

The Live Deck 2 supports multiple video output options, including HDMI, USB-A, and Ethernet, enabling users to view clear visuals to the device of their choosing.

5-Hour Battery Life

Powered by a 6200mAh lithium battery, Live Deck 2 can run for up to 5 hours on a single charge. Once depleted, juice up anywhere using the micro USB port or a portable battery pack.

Specifications:
Weight 424.5g
Dimensions 152*111*23.2mm (antennas folded)
223.9*152*23.3mm (antennas unfolded)
Ingress Protection IP43
Operating Frequency 902-928MHz(FCC)
2.400-2.4835GHz
5.725-5.850GHz(Non-Japan)
5.650-5.755GHz(Japan Only)
Transmitter Power (EIRP) 900MHz:
FCC<=33dBm
2.4GHz:
FCC/NCC<=33dBm; CE/MIC/SRRC/KC<=20dBm
5.8GHz/5.7GHz:
FCC/SRRC/NCC<=33dBm; KC<=20dBm; CE<=14dBm
Max Transmission Distance (unobstructed, free of interference) 12km
Operating time 5h
Operating Current/Voltage 1.3A/3.85V (not connected to smartphone)
Battery Type Li-Po
Battery Capacity 6200mAh
Rated Power 5 W
Operating Temperature 14°F~104°F (-10°C~40°C)
Operating Humidity 95%RH
HDMI 1080p@60 fps
Ethernet 100M
Supported Aircrafts EVO II Pro V3
EVO II Dual 640T V3
EVO II RTK Series V3
EVO II Enterprise V3

    UPC: 889520012928

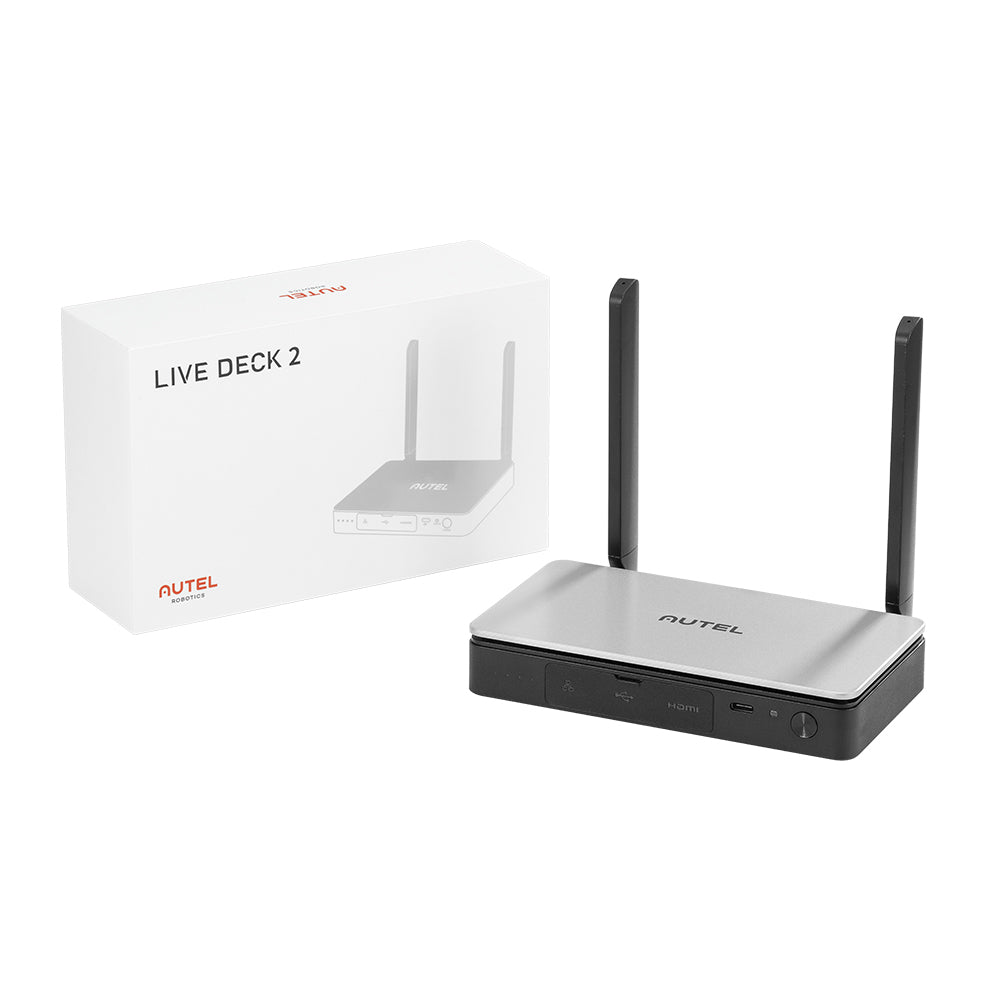

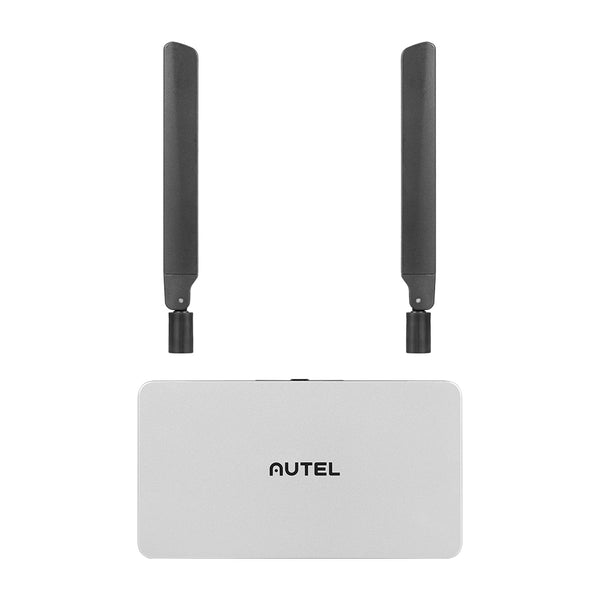

    In The Box

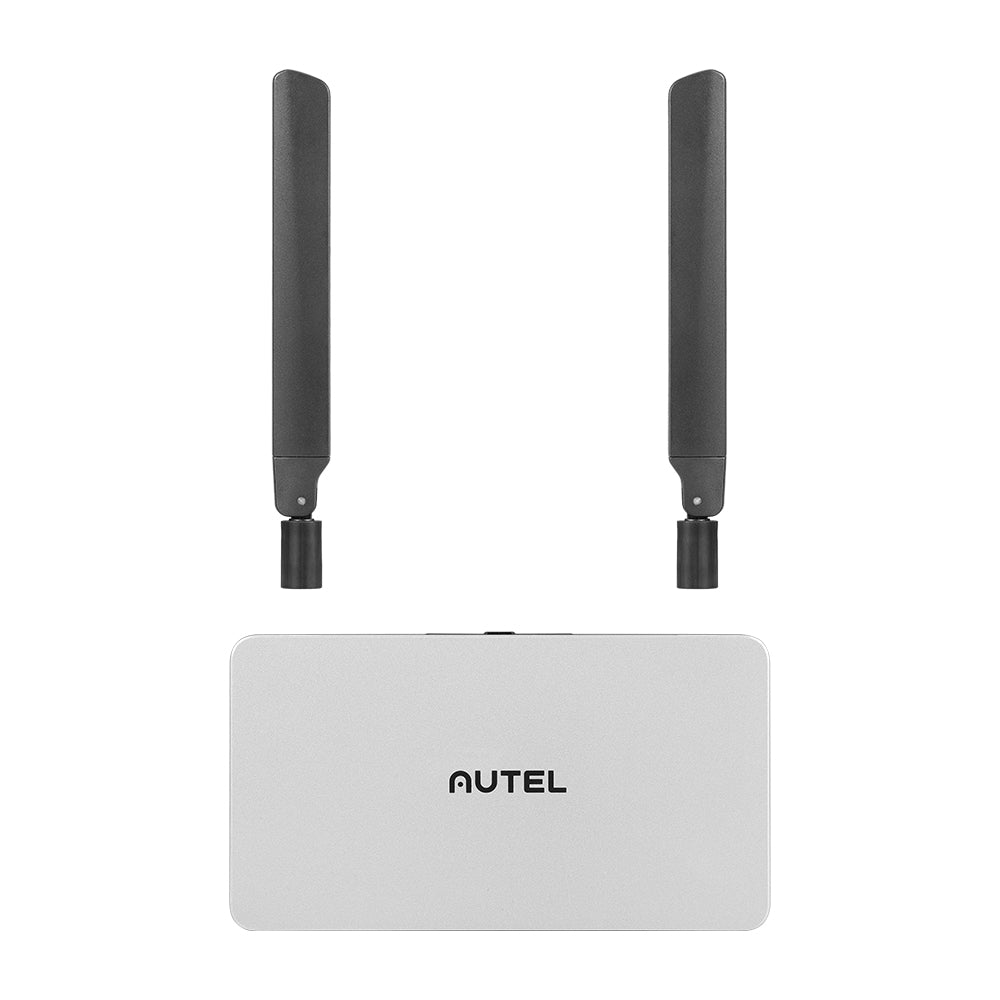

    One live Deck x1
    Antennas x2
