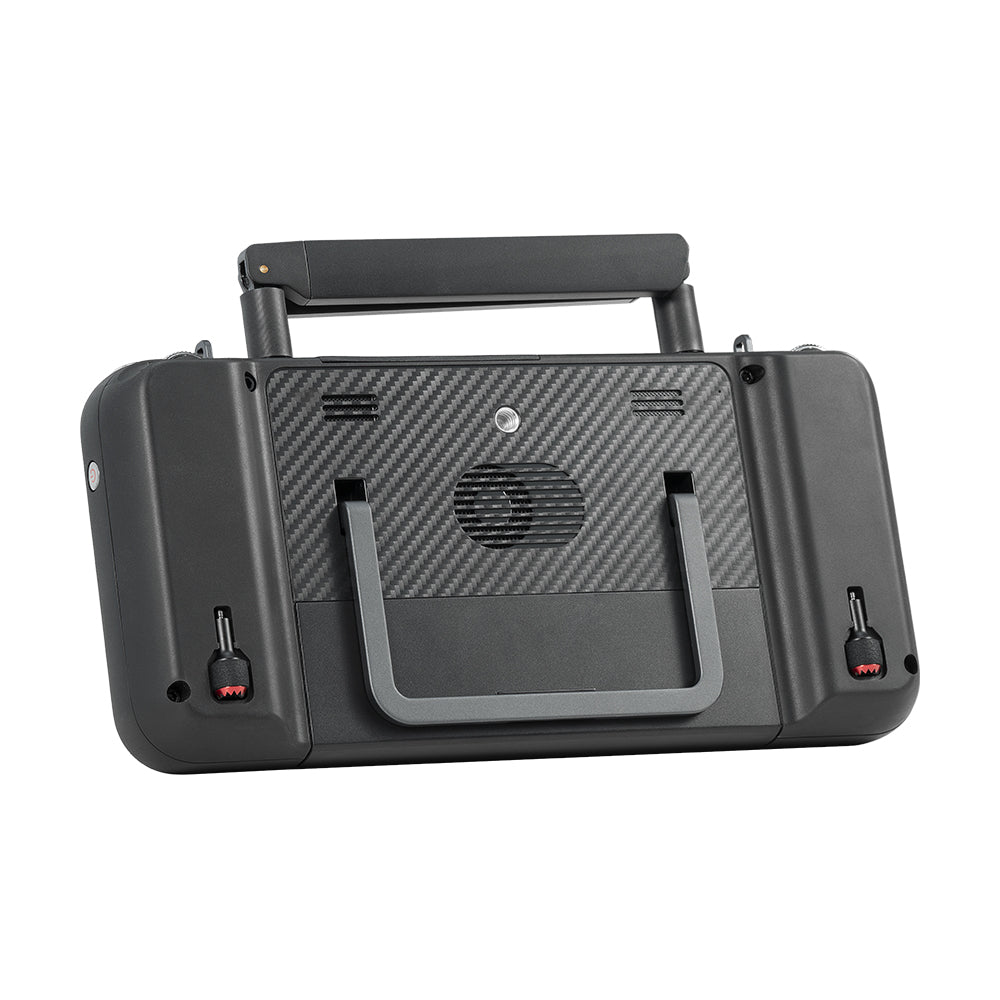

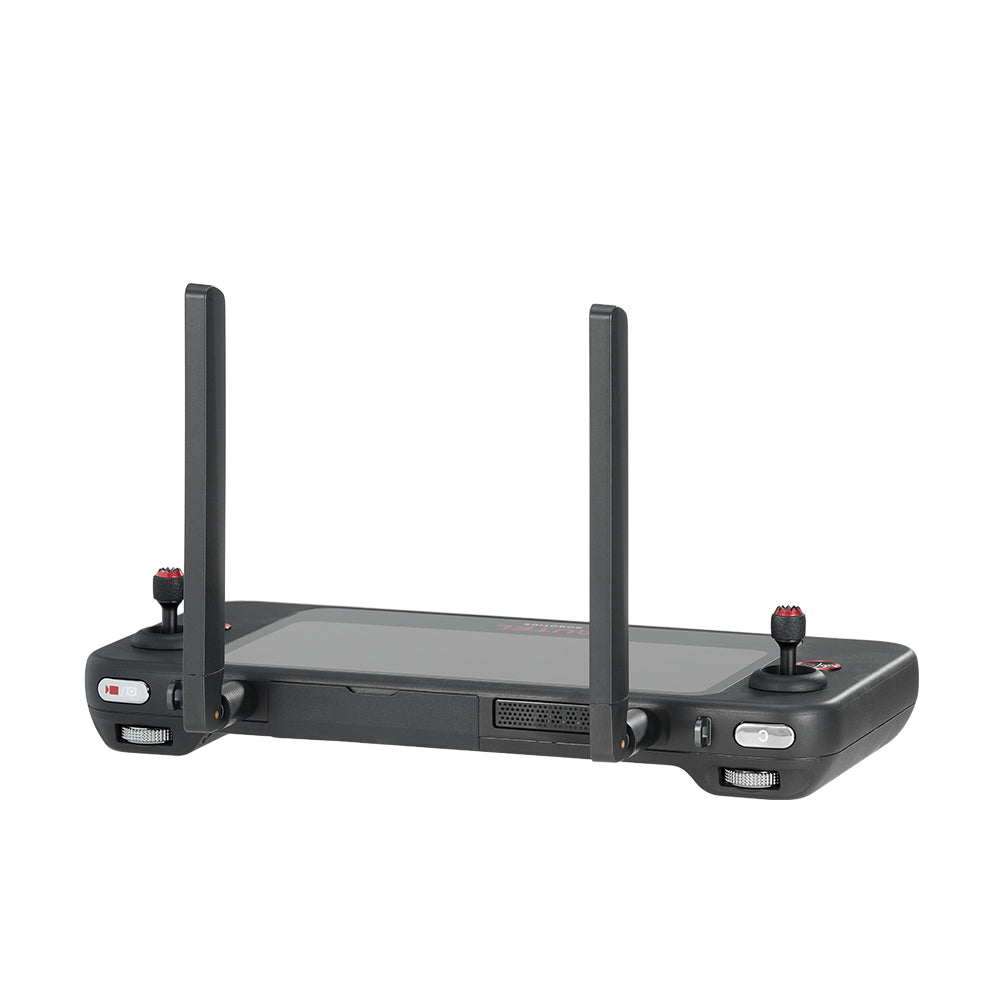

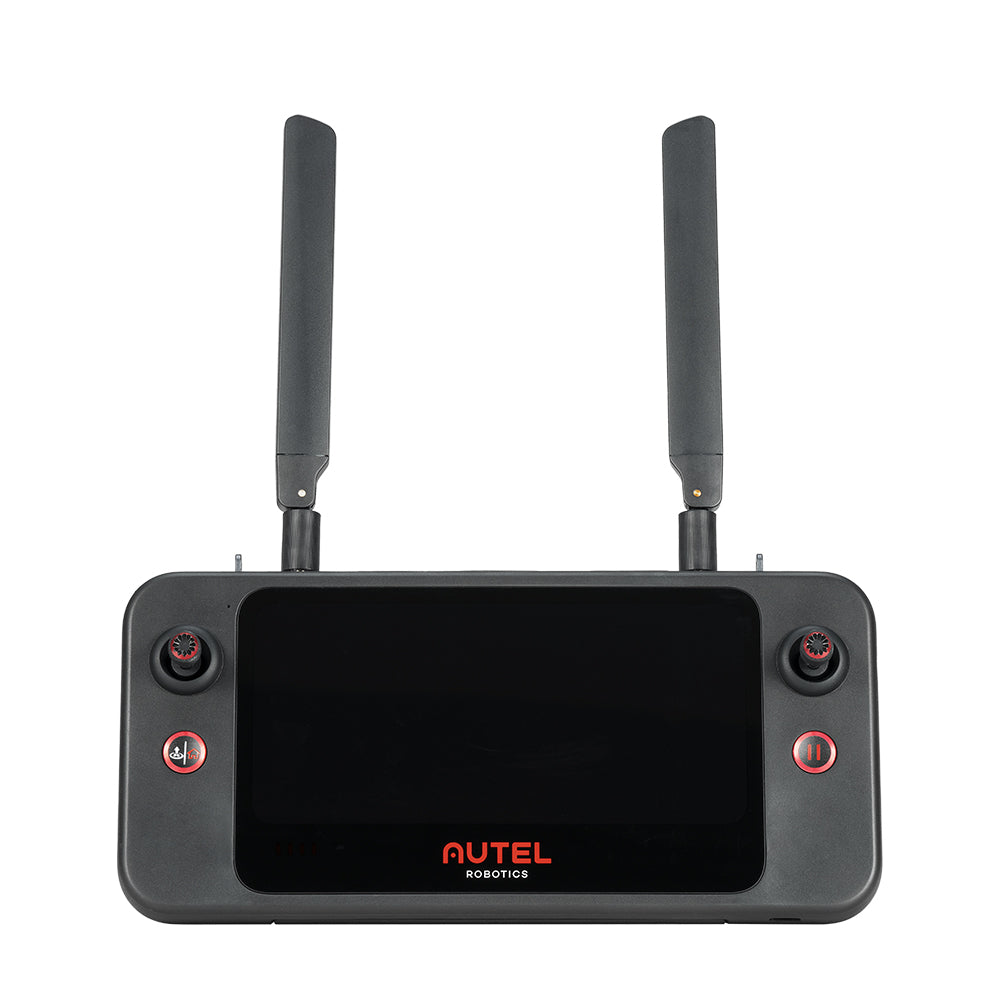

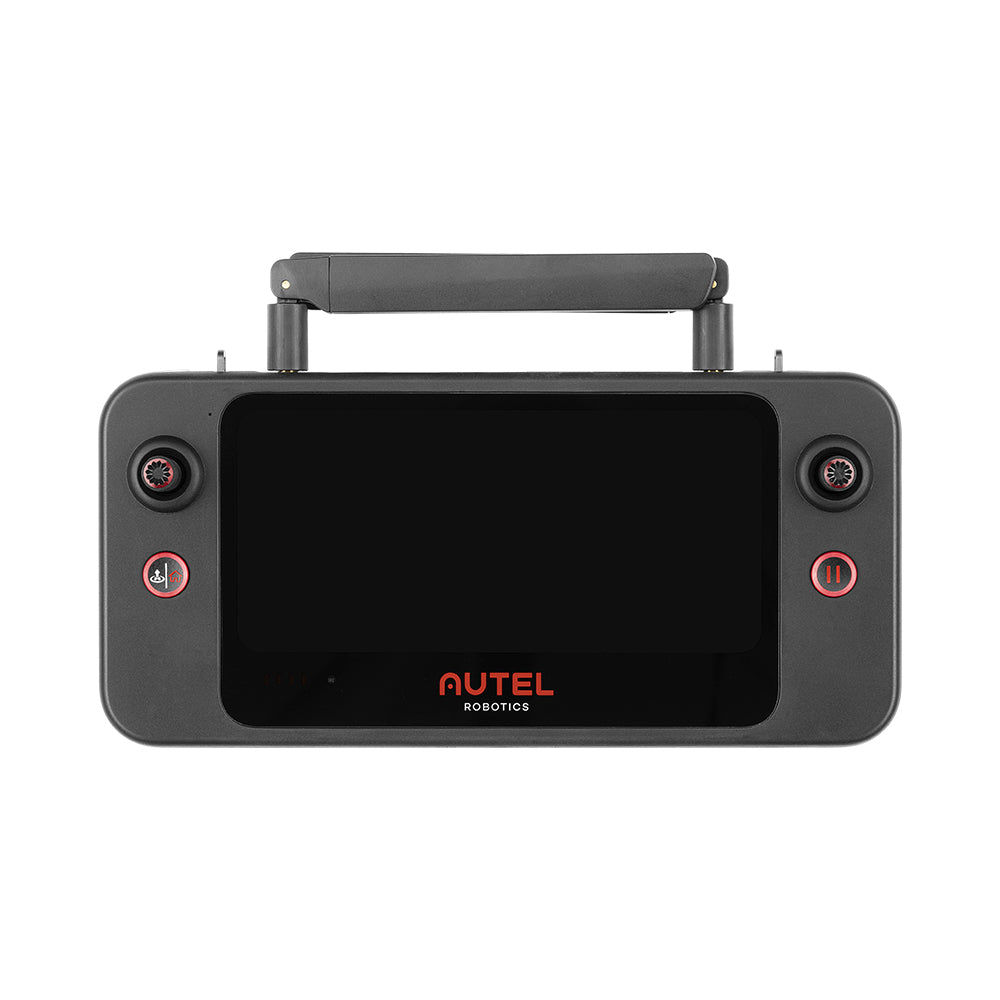

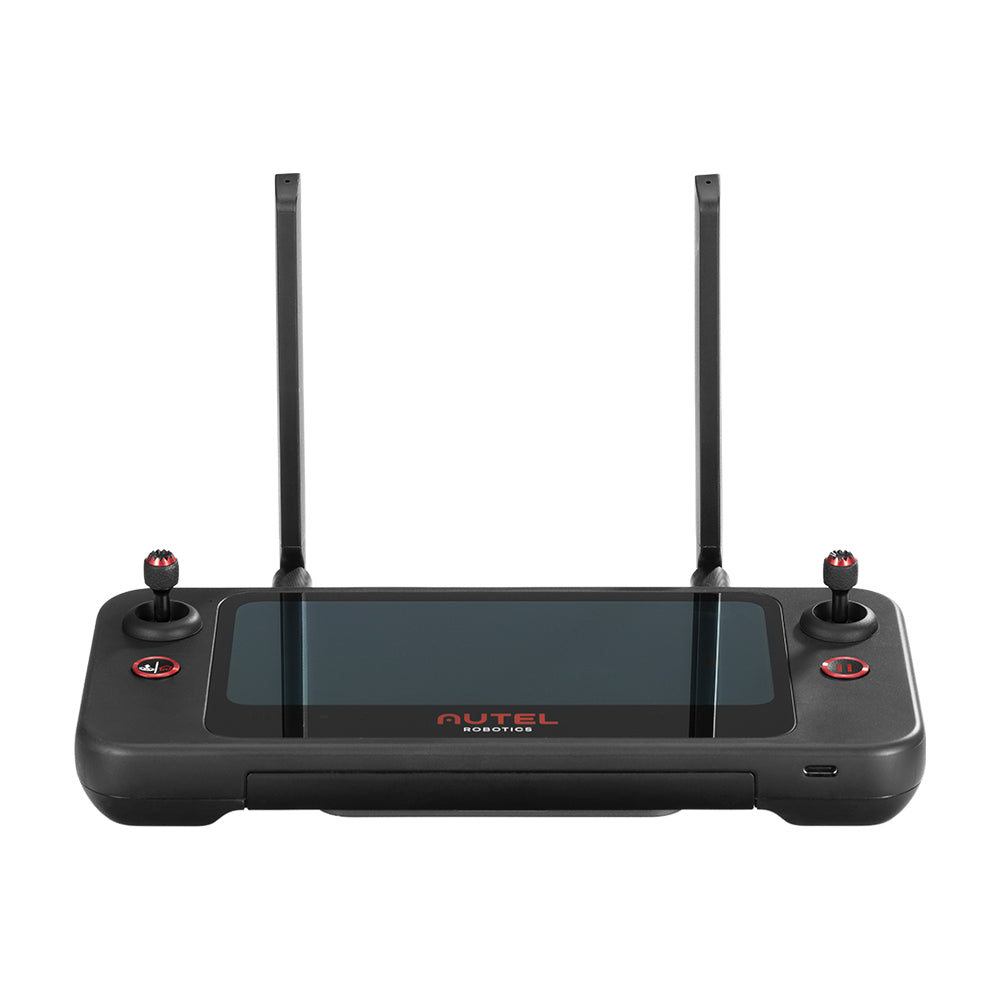

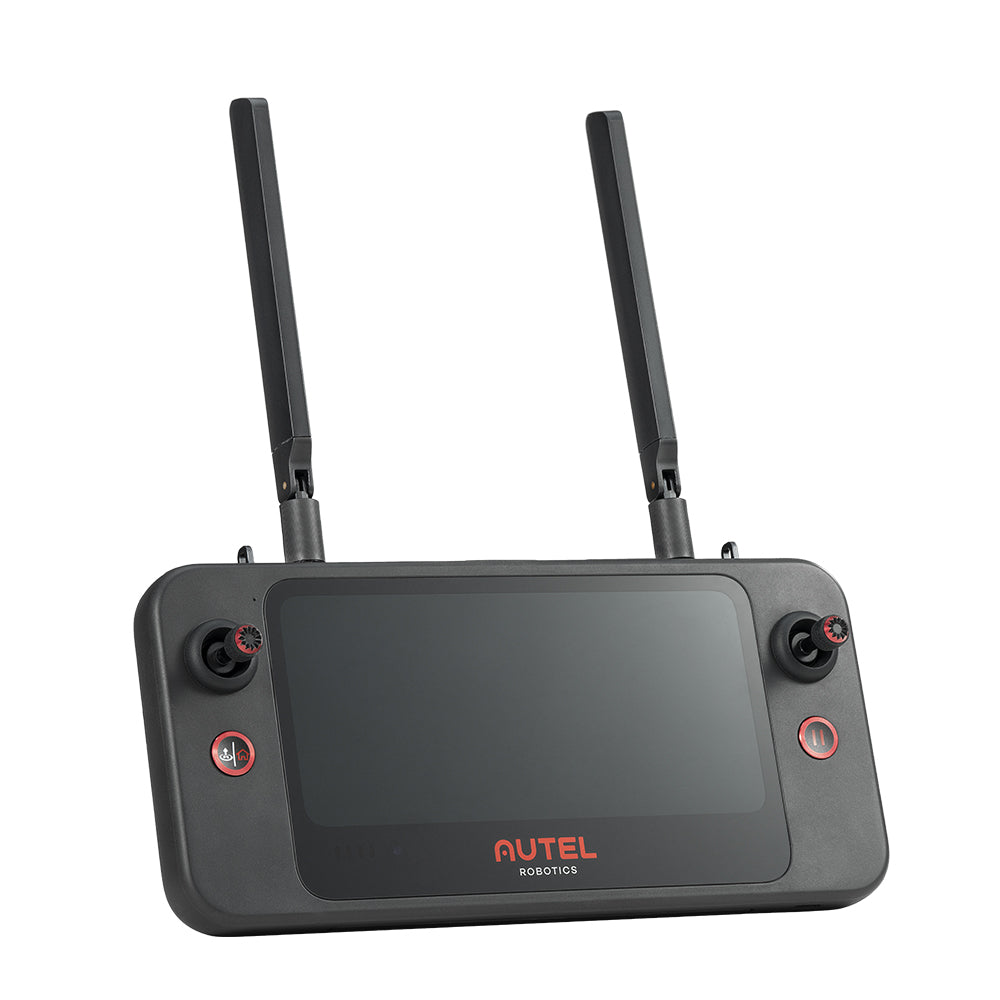

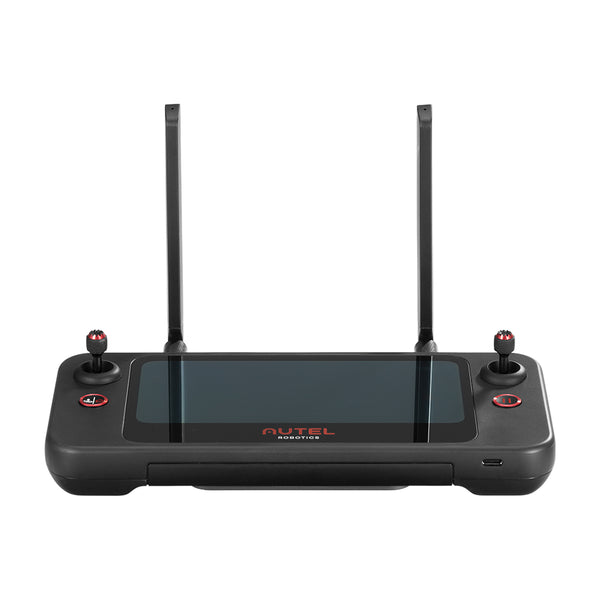

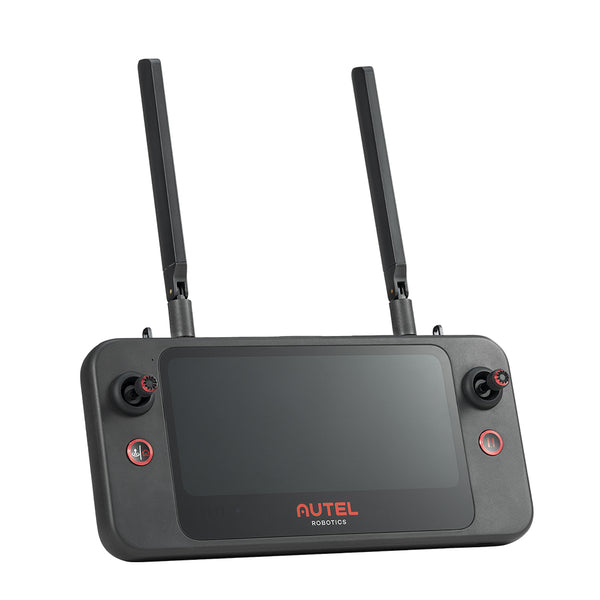

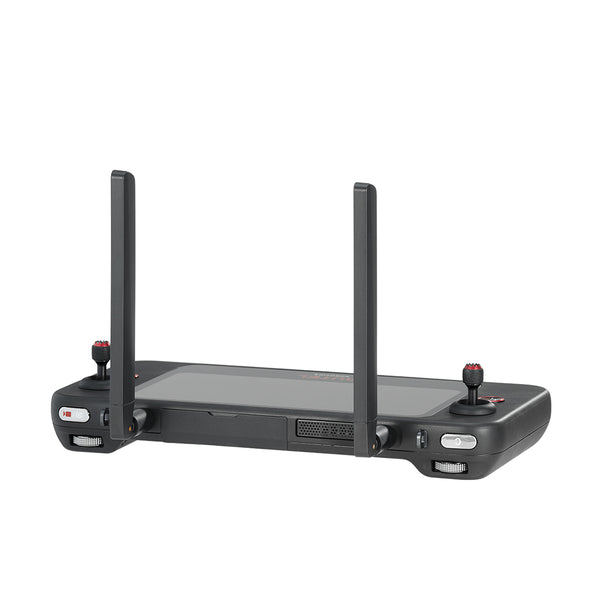

Autel Robotics Smart Controller SE V3

Autel RoboticsSKU: 102001508

UPC: 889520012126


Price:
Sale price$749.00
Stock:
Coming Soon

Pickup available at 1319 Grand Avenue

Usually ready in 2 hours

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

The NEW EVO II Version 3

This is NOT backwards compatible with any other remote controls.  It will work with existing EVO II Batteries.

Autel Robotics Smart Controller SE V3

Smart Controller SE comes with an 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

6.4-Inch OLED Screen; 15km Transmission Range; Removable Battery; 3rd Party Apps; -10℃ to 40℃ Operating Temperature

High Resolution OLED Screen
The Autel Smart Controller SE comes with an 6.4" OLED 2340x1080 touch screen with exceptional touch sensitivity. The OLED's high contrast and 800 nit brightness makes the Smart Controller SE readable in most daylight conditions

SkyLink 2.0 Transmission Technology
Autel Smart Controller SE uses Autel's latest SkyLink 2.0 transmission technology, capable of QHD video within 1km and HD video up to 15km away. SkyLink 2.0 utilizes triple frequencies of 5.8Ghz, 2.4Ghz, and 900 Mhz for enhanced anti interference capabilities in urban environments.
*900MHz is only applicable for FCC contries.

High Performance Hardware
Featuring Qualcomm 8-core processor, the Smart Controller SE comes with stronger computing capability while lowering power consumption. It is capable of decoding 4K videos and processing audios in high-fidelity. The supporting of Wi-Fi 5 protocol enables it to download third-party applications real fast.

3rd Party App Support
Smart Controller SE's Android system allows for the installation and customization of

3rd party Apps
Livestream
Smart Controller SE supports livestreaming to a local monitor via the HDMI port or through 3rd party apps downloads

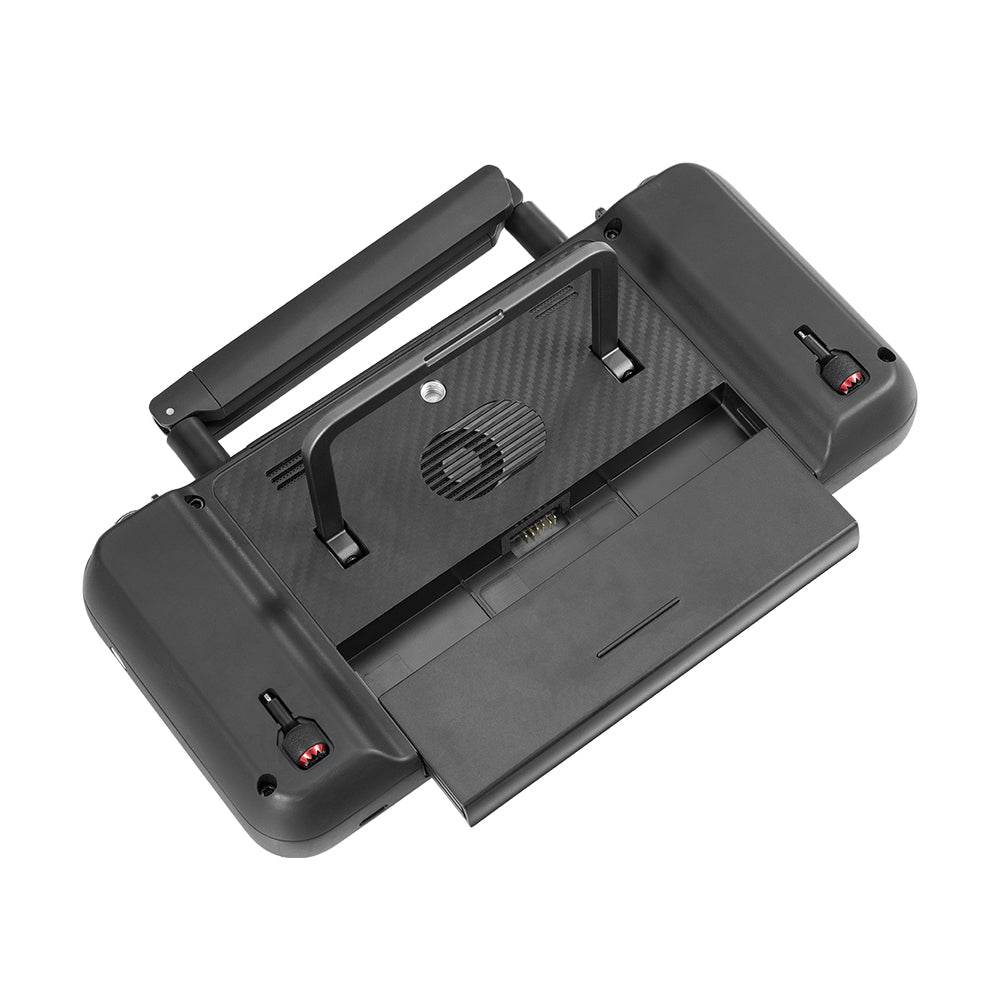

Fast/Swift Charging and Removable Batteries
Get up to 4 hours of non stop operation thanks to improved processing efficiency. The Smart Controller SE shortens charging time to 1.5 hours and supports quick battery swaps between missions.

Weather Sealed and Temperature Tolerant
Autel Smart Controller SE has an IP43 against dust and light rain. An operating temperature between -10c to 40c enhances reliability of the Smart Controller SE in all seasons.

Lightweight and Portable
Coming in at 617g, the Smart Controller SE is light enough for all day carrying and removable joysticks are conveniently stowed in the backside for easy access

Enhanced Connectivity
Autel Smart Controller SE comes with SMA compatible connectors, which allows for quick replacements or 3rd party upgrades.

Muti-Ports
HDMI, quick removable SD card, and USB-C ports solve all your broadcasting, charging, and transfer needs

EVO 2 V3 Compatibility Chart



Specifications
Antenna 2 Antennas, 1T2R
*Operating Frequency 902-928MHz(FCC)
2.400-2.4835GHz
5.725-5.850GHz(Non-Japan)
5.650-5.755GHz(Japan Only)
Max Transmission Distance(unobstructed, free of interference) FCC: 15km
CE/SRRC: 8km
Transmitter Power (EIRP) FCC:≤33dBm
CE:≤20dBm@2.4G, ≤14dBm@5.8G
SRRC:≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
Protocol Wi-Fi 802.11a/b/g/n/ac, 2x2 MIMO
*Operating Frequency 2.400-2.4835GHz
5.725-5.850GHz
Transmitter Power (EIRP) FCC:≤26dBm
CE:≤20dBm@2.4G, ≤14dBm@5.8G
SRRC:≤20dBm@2.4G, ≤26dBm@5.8G
Protocol Bluetooth 5.0
Operating Frequency 2.400-2.4835GHz
Transmitter Power (EIRP) ≤11dBm
Resolution 2340×1080
Dimensions 6.4inches
Frame Rate 60fps
Max. Brightness 800nits
Touch Screen 10-point multi-touch
Type Li-ion
Rated Capacity 1900mAh
Nominal Voltage 7.7V
Rated Power 14.63W
Operating Time ~2 hours (Max. Brightness)
~4 hours (50% Brightness)
Charging Time 90 minutes
Charging Temperature 5℃ to 45℃(41℉ to 113℉)
Internal Storage ROM 128GB + expandable storage via micro-SD card
Video Output Port HDMI
USB-A Voltage/Current 5V/2A
Operating Temperature -10℃ to 40℃ (14℉ to 104℉)
Storage Temperature >3 months: -20℃ to 25℃(-4℉ to 77℉)
1-3 months: -20℃ to 45℃(-4℉ to 113℉)
<1 month: -20℃ to 60℃(-4℉ to 140℉)
Ingress Protection IP43
Dimensions 226.3×137.7×31.5mm (antennas folded)
226.3×215.4×31.5mm (antennas unfolded)
Weight 617g
**Supported Aircrafts EVO II Pro V3
EVO II Dual 640T V3
EVO II RTK Series V3
EVO II Enterprise V3
GNSS GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS

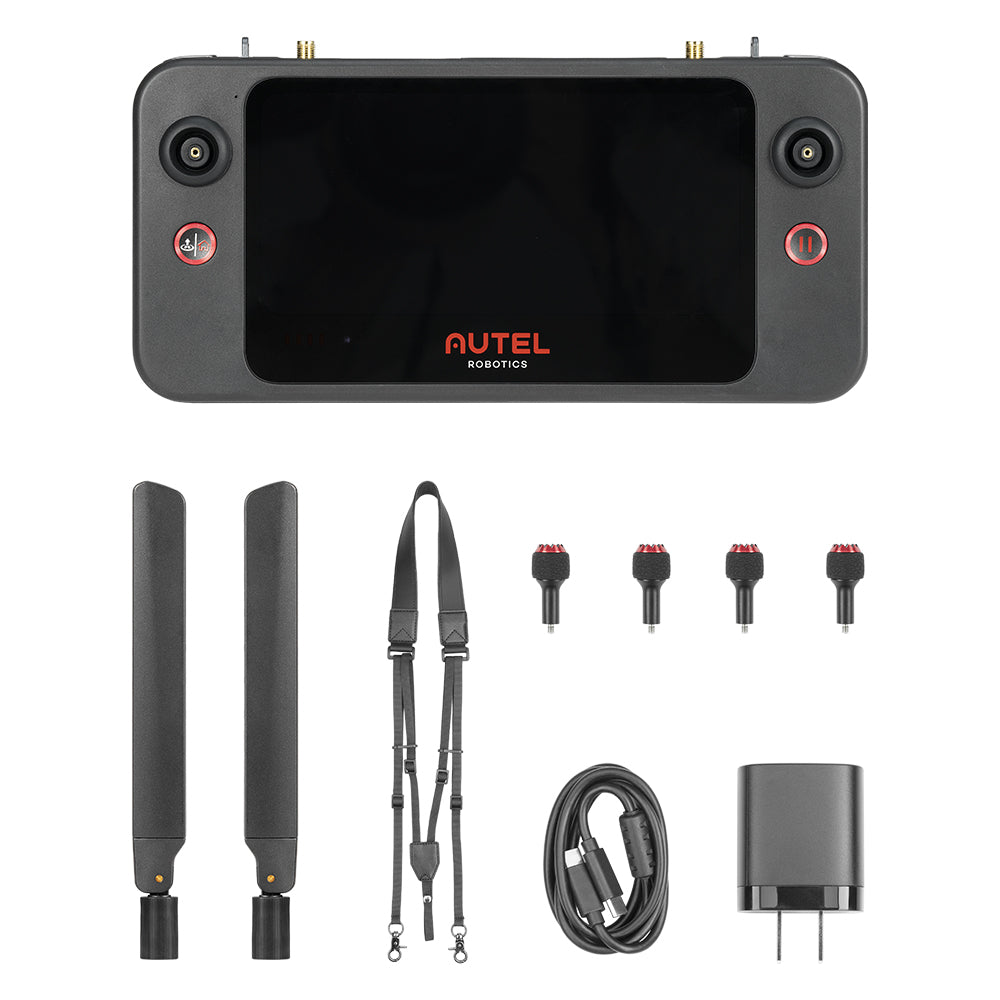

6.4" Smart Controller x1
USB - C Controller Charging Cord x1
Charging Brick x1
Controller Sticks x2 (Pairs)
Smart Controller Hanging Neck Strap x1
Controller Antenna x1 (Pair)
