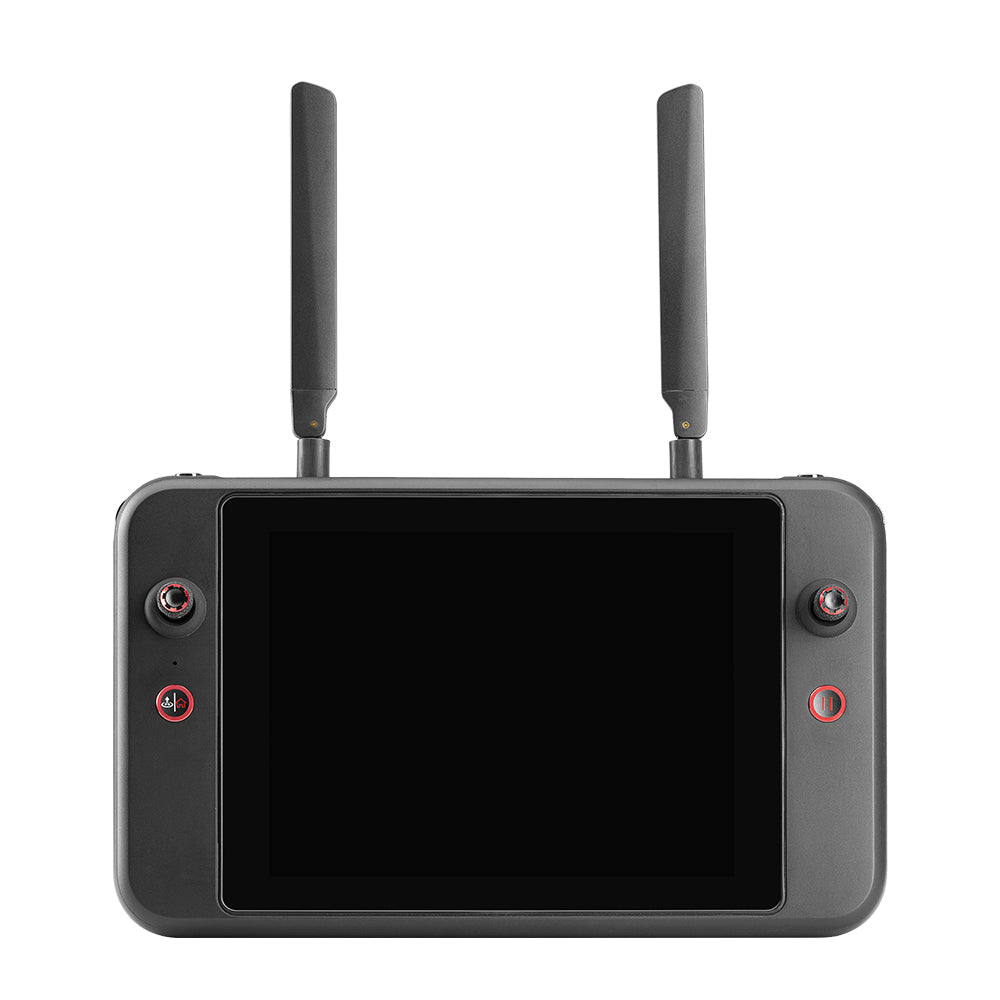

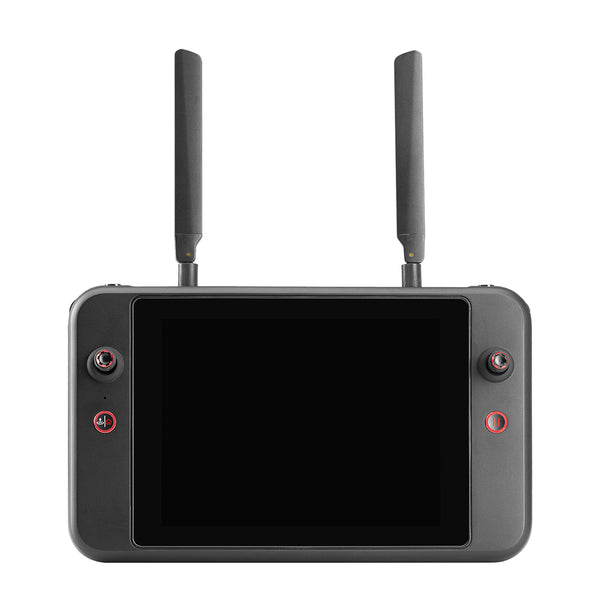

Autel Robotics Smart Controller V3

SKU: 103000052
Price
$1,199
Special Order - This item takes extra time to ship. Typically it will ship within 14 business days

The NEW EVO II Version 3

This is NOT backwards compatible with any other remote controls.  It will work with existing EVO II Batteries.

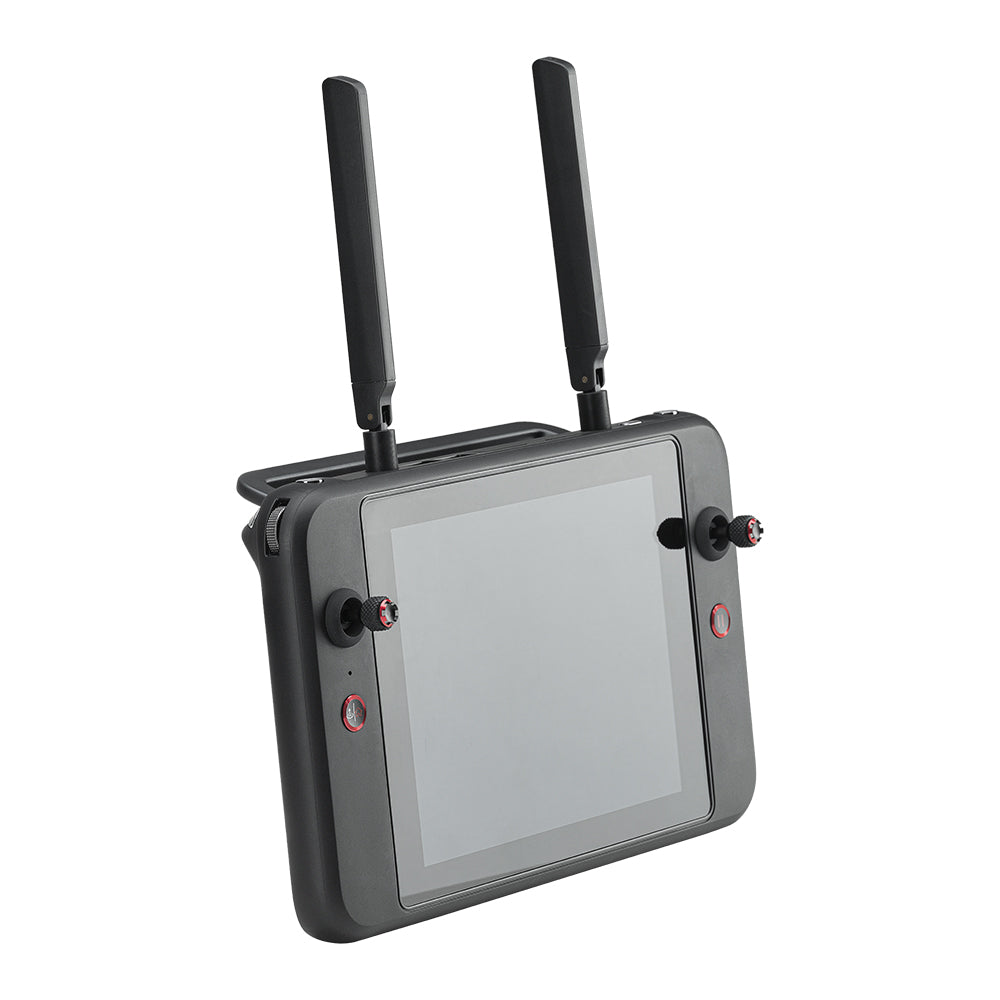

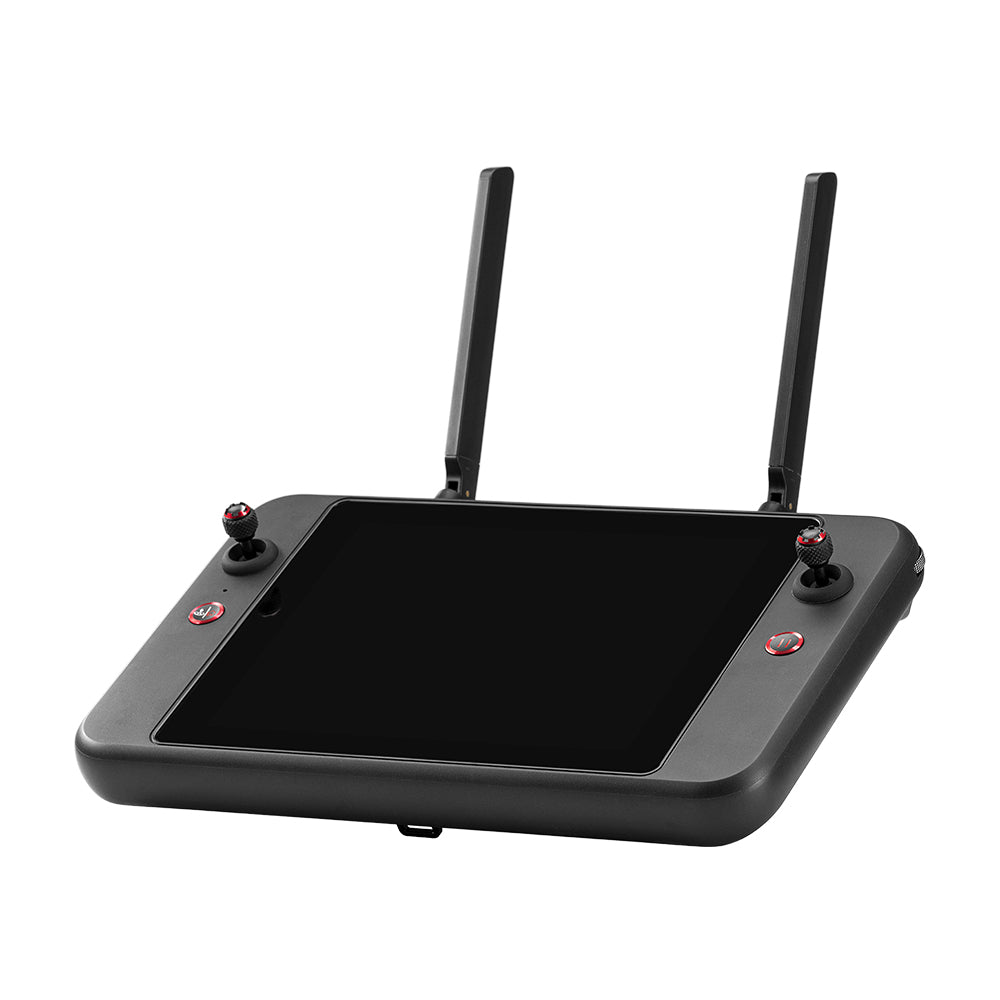

Autel Robotics Smart Controller V3

Simplicity, Clarity, Control.
15km Transmission Range, Maximum 2000nit Brightness, 4.5 Operating Hour

Portable, Efficient, and Easy to Use
2000nit Super-Bright Screen:  The built-in display is twice as bright as the next leading competitor and 4 times brighter than a conventional cell phone screen. The 7.9-inch QHD display offers anti-glare coatings and provides clear visibility under direct sunlight.

  • 4.5h Ultra-Long Battery Life: The 5800mAh Lithium-ion battery within lasts up to 4.5 hours in continuous use and supports 2-hour fast charging. The Smart Controller is ready to met your demands in aerial operation for those long days out in the field.
  • 128GB Internal Memory: Ample internal storage has space for media and flight logs without the need for external storage.
  • -20~40℃ Working Temperature: Bigger heatsinks allow the Smart Controller to operate with a wider temperature range, giving you a more stable, reliable operation in extreme environments without overheating or freezing.
  • Customized OS System: The Smart Controller runs on a customized Android system and supports additional flexibility for third party system workflow by allowing users to download additional third party apps and can allows users create their own exclusive operating system.
  • 8-core Processor: The Qualcomm 8-core processor can smoothly play 4K/60fps H.264 and 4K/60fps H.265 video.

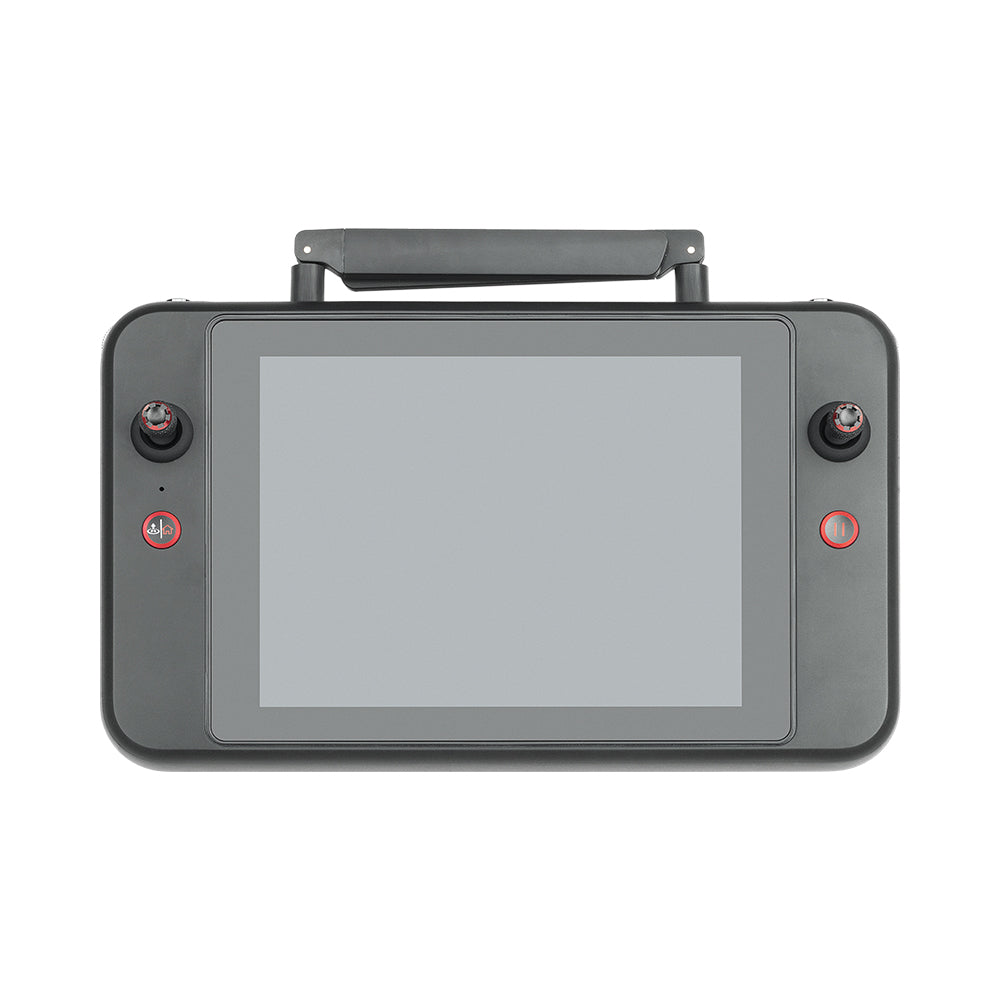

Supersharp, High Brightness Display
Smart Controller V3's bulit in display at 2000nit is 4 times brighter than a conventional cell phone screen and the 7.9 inch Ultra-HD (2048x1536) touch screen provides clear visibility under direct sunlight. Intergrated true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for the pilot in any lighting enviroment.

SkyLink 2.0 Video Transmission
Smart Controller V3 supports 2.4GHz/5.8GHz/900MHz tri-band communication and can automatically frequency hop for maximum anti-interference capability. 2.7K 30p video resolution is available within 1km and 1080p HD image comes standard between its 1km-15km transmission range.
* 900MHz is only supported in countries covered by FCC certification.

Extensive Battery Life
The 5800mAh lithium battery guarantees 4.5 hours of continuous work, and can be fully charged in 2 hours.

Premium Material, Rugged Design

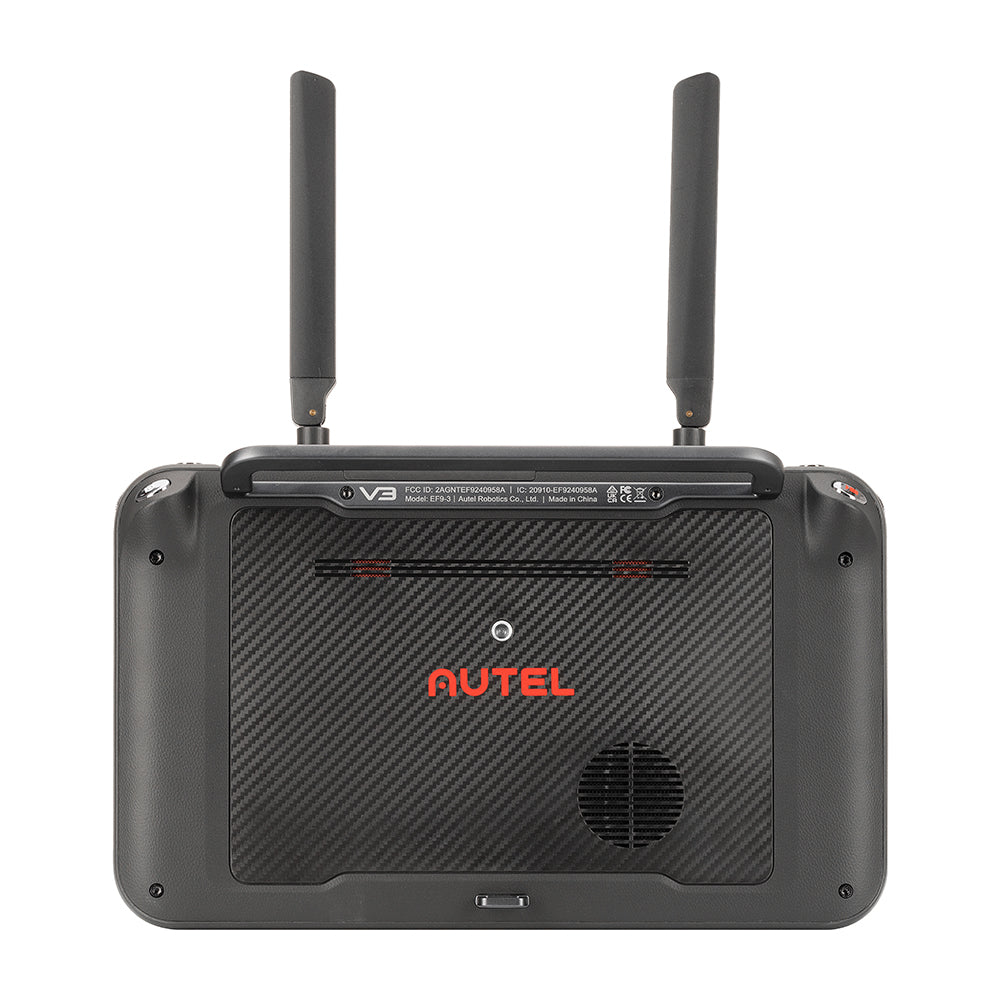

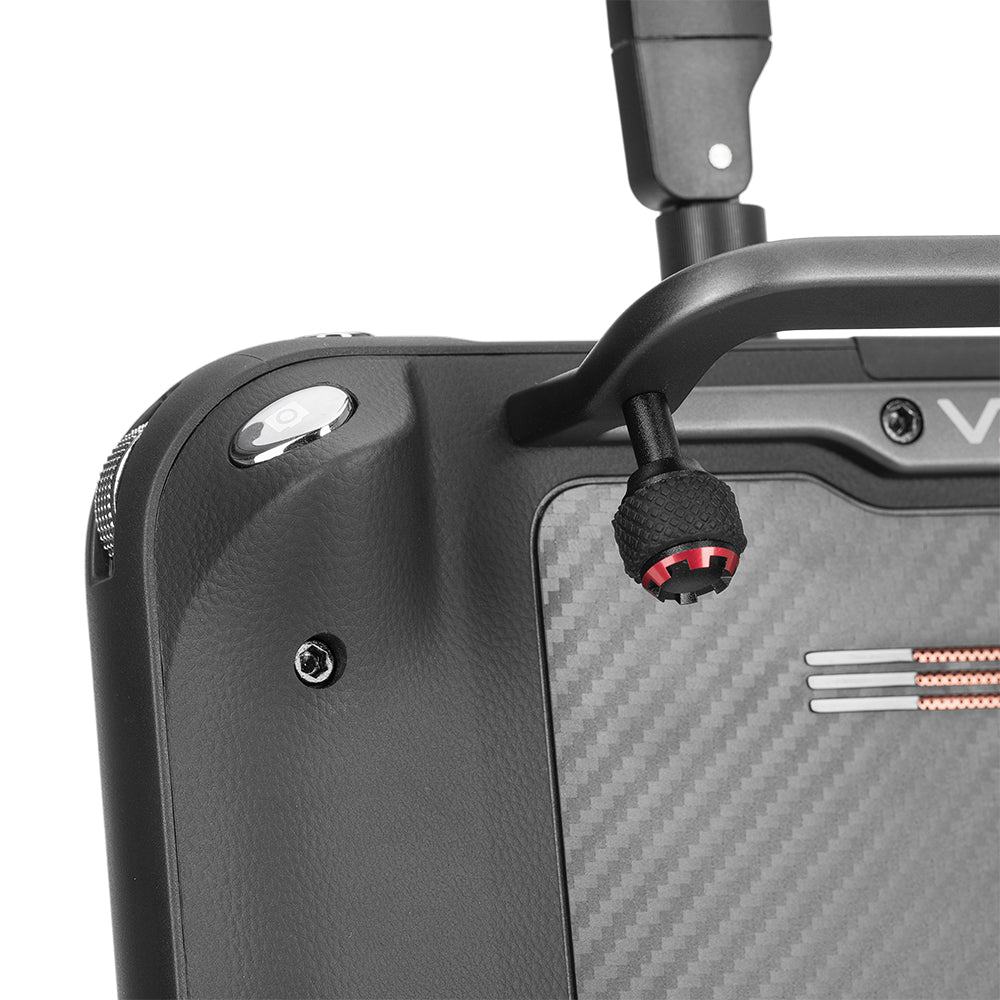

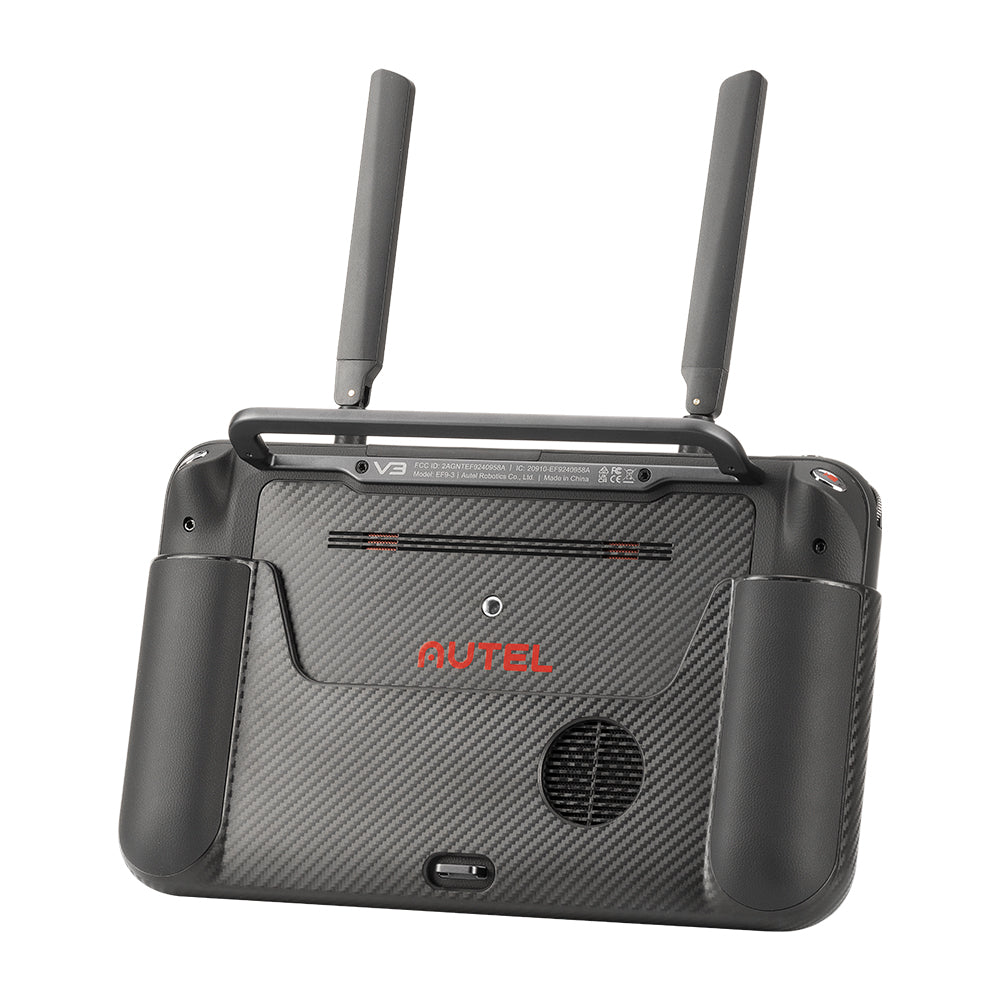

The back of the controller is made from reinforced composites and is 3D laser engraved for improved ergonomics, grip, and durability.

Sleek and Portable
The Smart Controller weighs 1150g and comes with removable Command sticks and storage so it can be tucked into a carrying bag with ease.

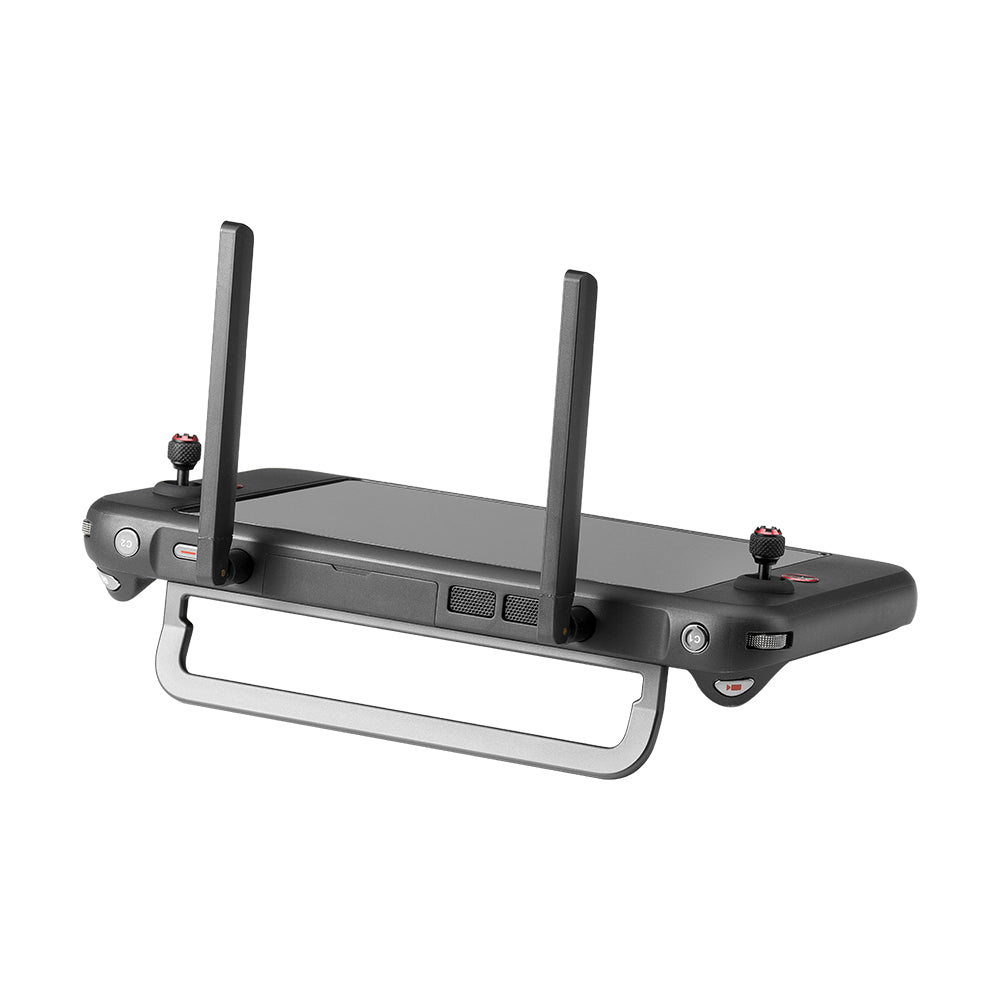

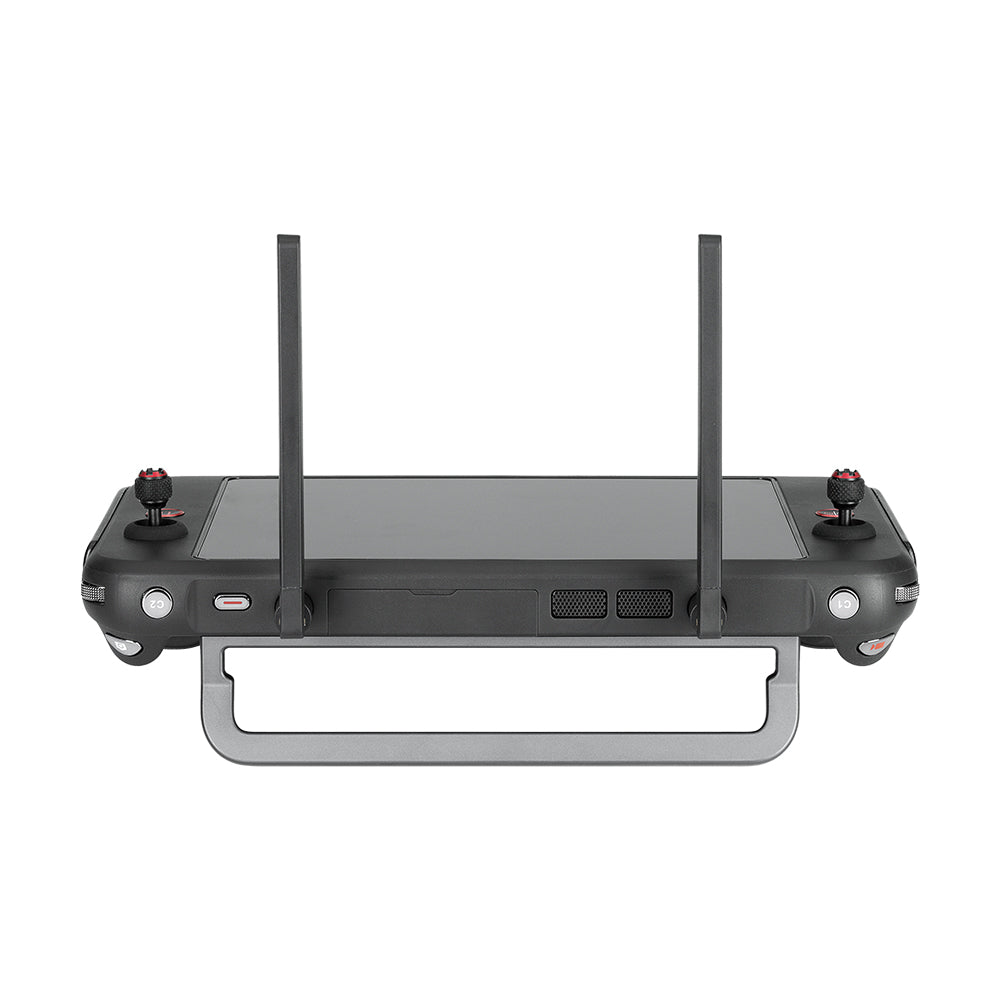

Multi-port Output
HDMI, USB-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allows the antennas to be detachable and replaced or upgraded with SMA compatible third party devices.

EVO 2 V3 Compatibility Chart



Specifications
Antenna 2 Antennas, 1T2R
*Operating Frequency 902-928MHz(FCC)
2.400-2.4835GHz
5.725-5.850GHz(Non-Japan)
5.650-5.755GHz(Japan Only)
Max Transmission Distance(unobstructed, free of interference) FCC: 15km
CE/SRRC: 8km
Transmitter Power (EIRP) FCC:≤33dBm
CE:≤20dBm@2.4G, ≤14dBm@5.8G
SRRC:≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
Protocol Wi-Fi 802.11a/b/g/n/ac, 2x2 MIMO
*Operating Frequency 2.400-2.4835GHz
5.725-5.850GHz
Transmitter Power (EIRP) FCC:≤26dBm
CE:≤20dBm@2.4G, ≤14dBm@5.8G
SRRC:≤20dBm@2.4G, ≤26dBm@5.8G
Protocol Bluetooth 5.0
Operating Frequency 2.400-2.4835GHz
Transmitter Power (EIRP) ≤11dBm
Resolution 2048×1536
Dimensions 7.9inches
Frame Rate 60fps
Max. Brightness 2000nits
Touch Screen 10-point multi-touch
Type Li-po
Rated Capacity 5800mAh
Nominal Voltage 11.55V
Energy 67Wh
Operating Time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)
Charging Time 120 minutes
Charging Temperature 5℃ to 45℃(41℉ to 113℉)
Internal Storage ROM 128GB
Video Output Port HDMI
USB-A Voltage/Current 5V/2A
Operating Temperature -20℃ to 40℃ (-4℉ to 104℉)
Storage Temperature >3 months: -20℃ to 25℃(-4℉ to 77℉)
1-3 months: -20℃ to 45℃(-4℉ to 113℉)
<1 month: -20℃ to 60℃(-4℉ to 140℉)
Ingress Protection IP43
Dimensions 303×190×87mm (antennas folded)
303×273×87mm (antennas unfolded)
Weight 1150g (without protective case)
1250g (with protective case)
**Supported Aircrafts EVO II Pro V3
EVO II Dual 640T V3
EVO II RTK Series V3
EVO II Enterprise V3
GNSS GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS

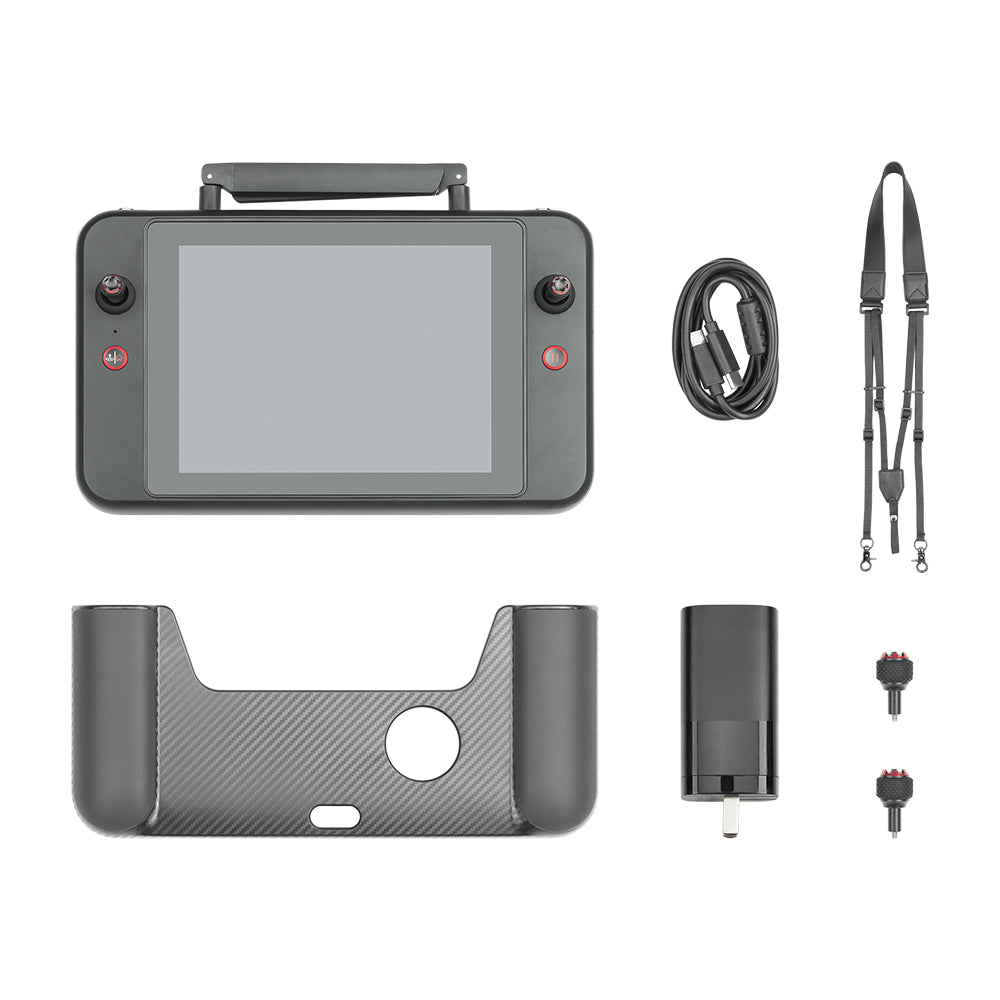

In The Box
Autel Robotics V3 7.9" Smart Controller Quantity
7.9" Smart Controller (With Controller case) 1
USB - C Controller Charging Cord 1
USB - A & C Charging Brick 1
Controller Sticks 2 (Pairs)
Smart Controller Hanging Neck Strap 1
