CHASING Omniscan 450 FS Sonar for M2 PRO MAX

Chasing InnovationsSKU: 40.30.700.0095

UPC: 860008012920


Product Features

  • High-Resolution Imaging: Offers clear 2D and 3D imaging modes, suitable for various underwater applications.
  • Wide Range of Applications: Includes emergency rescue, aquaculture, hydrological monitoring, and underwater science.
  • Outstanding Performance: The Omniscan has significant price and performance advantages compared to similar
Request a Quote

The manufacturer does not allow us to advertise this product's price online. Please use the form button below or Call +1 (844) 474-8833 Our team will be happy to provide and answer any questions you might have.

Have questions? Want to see sample footage or data? We're here to help. Free consultations conducted by our specialists.

This Product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Special Orders over $5000.00 require payment by Wire Transfer or ACH.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

CHASING Omniscan 450 FS-100m Rated Sonar

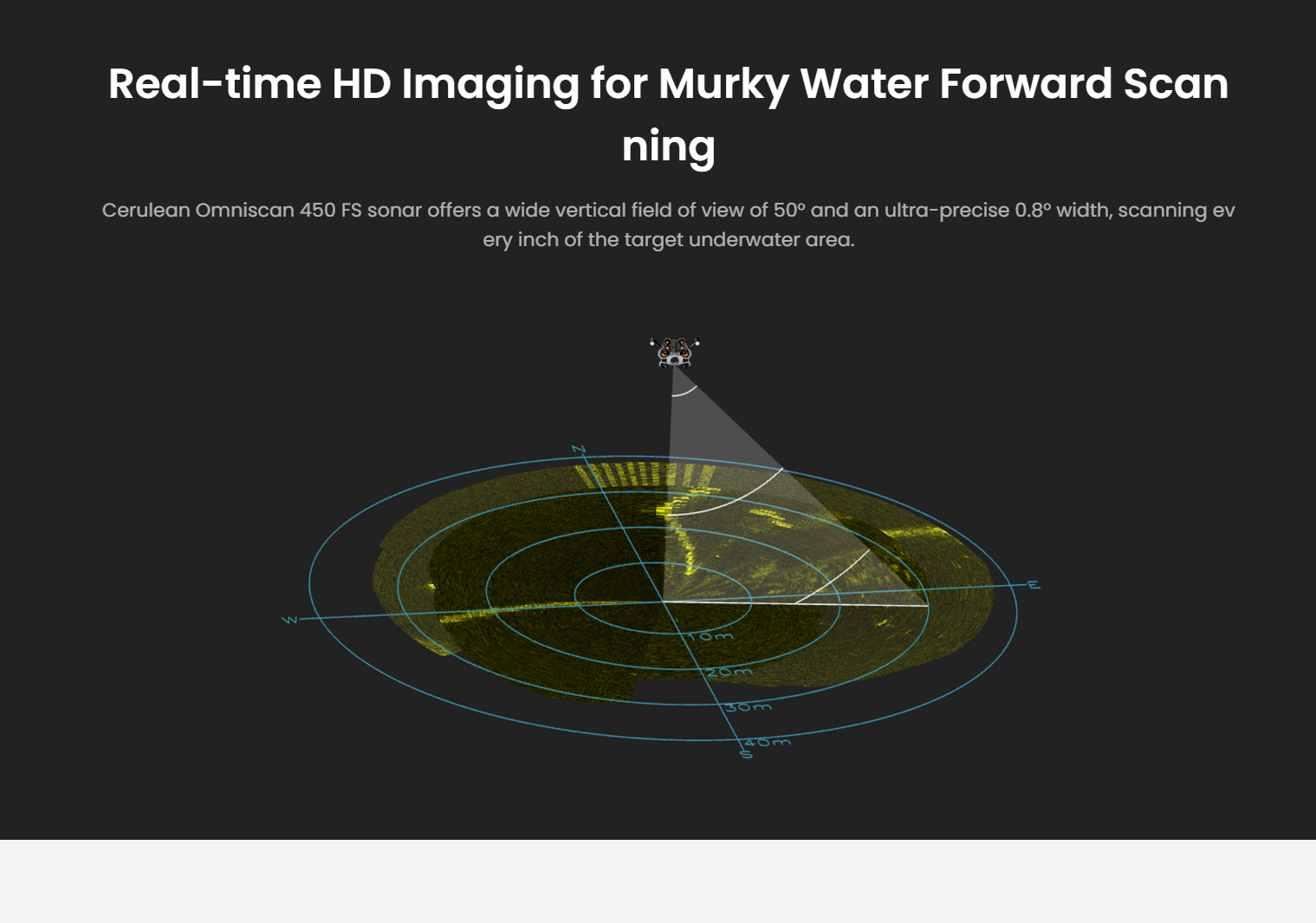

As the ROV or surface vessel moves, Cerulean SonarView “paints” the image of the scanned area of the sea floor giving excellent situational awareness in the murkiest conditions.

In the case of a surface vessel with GPS or an ROV with DVL, scanning is translational as well as rotational. For underwater vehicles without positioning information, Omniscan's Dopper Position Tracking can be used for translational information in the direction of the beam. Using a pair of Omniscan 450 FS units, one forward and one 90 degrees to either side, full 2d motion tracking is available. This also enables position hold mode.

Using Omniscan 450 FS on an ROV, the scanning is under the direct control of the ROV driver so that they can focus on specific areas of interest rather than waiting for a mechanical scanning sonar to slowly come around to sweep the particular sector they want to see. Using the “Heading Up” mode in SonarView makes this manual scanning very intuitive and provides excellent situational awareness.

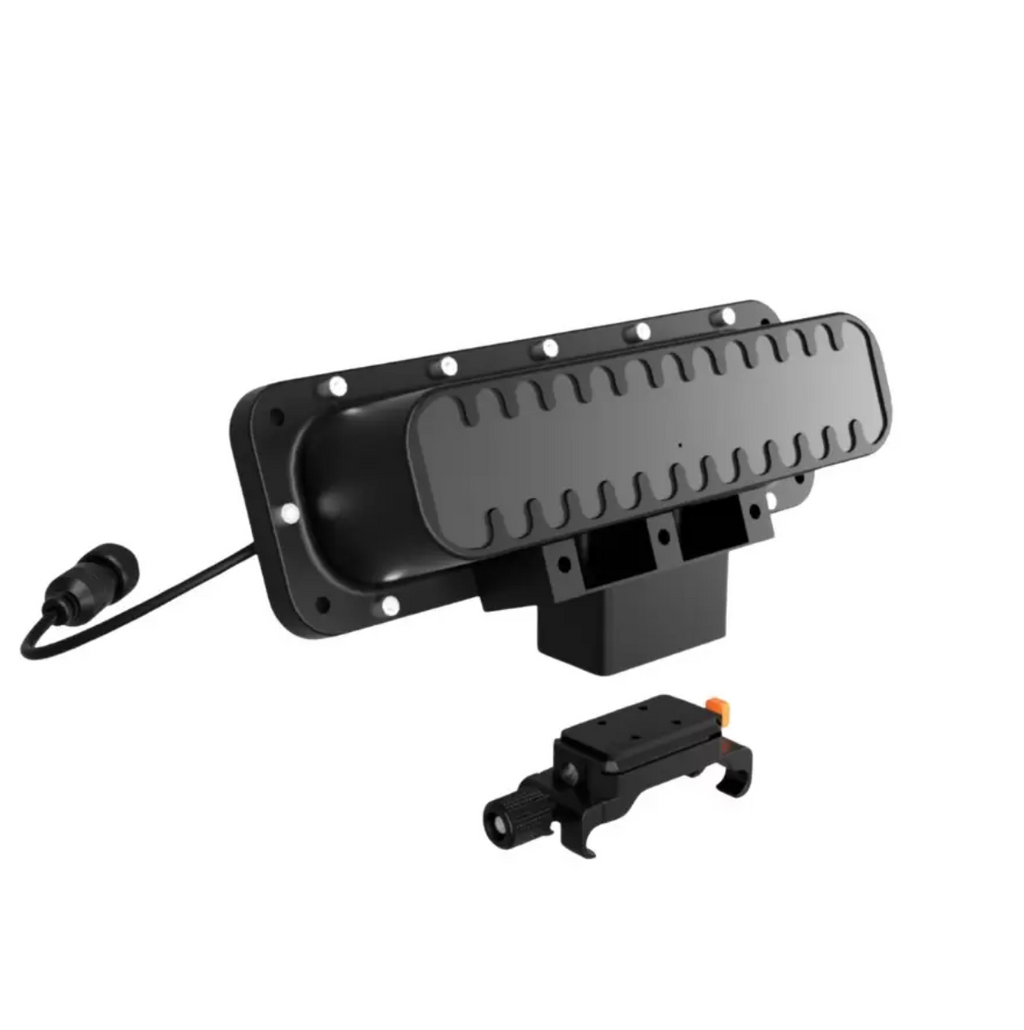

  • Omniscan 450 FS for Pro Mox
  • Pro Max Mounting Kit
  • Operational Software

  • Viewing Software: SonarView by Cerulean
  • Frequency: 450 kHz
  • Range Resolution: Up to 1/1200 of range setting
  • Maximum Ping Rate: 20 pings per second up to 30m range, thereafter limited by range and speed of sound. Examples: 10 pps @ 50m, 5 pps @ 140m range setting
  • Power Supply: 10-30 Volts, 5 watts max at idle, 10 watts max while pinging
  • Data Interface: 100BaseT Ethernet
  • Electrical Connection: Single cable with 4 pin JST for data (Blue Robotics Ethernet standard), plus a wire pair for power. Adapter provided for standard RJ-45 ethernet connection.
  • Maximum Range: 100m
  • Far Field (Note 1): 7m
  • Beam Width (Note 2): 0.8°
  • Beam Height: 50°

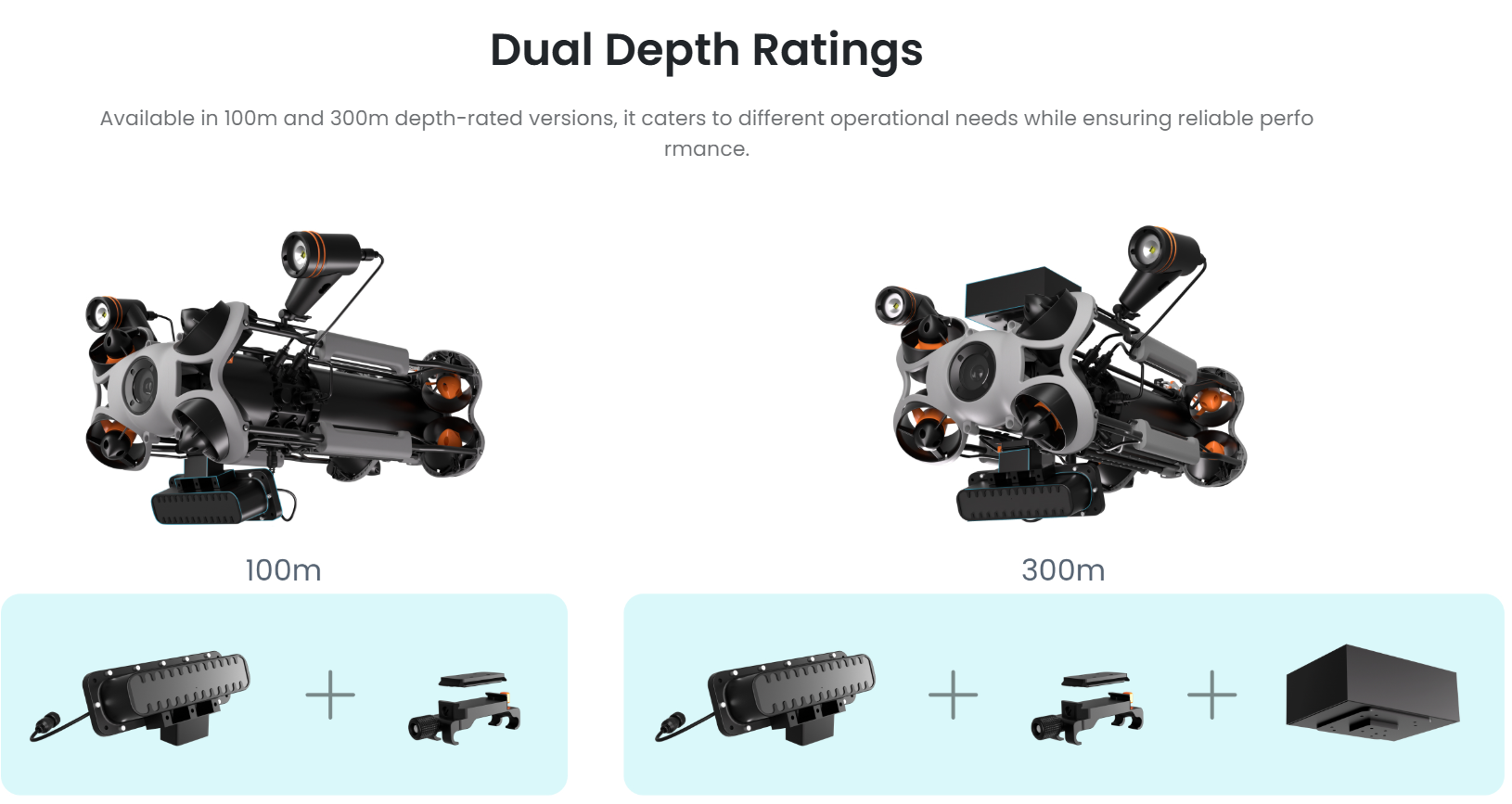

  • Maximum Operating Depth: 100m and 300m versions
  • Weight in Air: 440g(100m), 825g(300m)
  • Weight in Water: -60g(100m), +325(300m)
  • Overall Dimensions: 55x67x200mm
