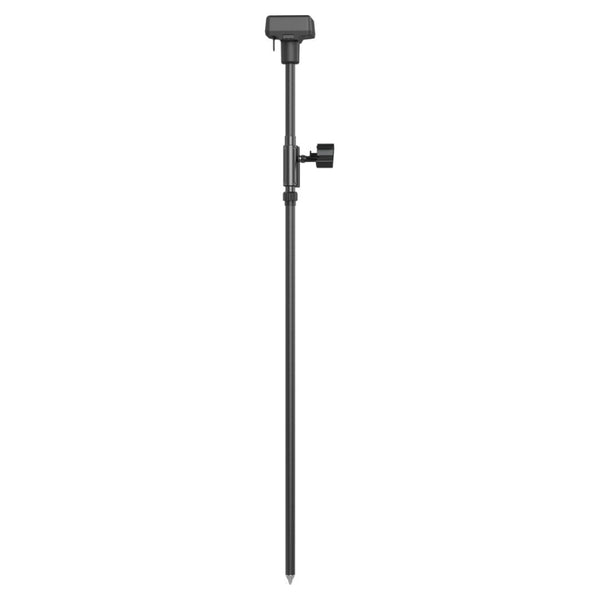

DJI - D-RTK 2 Mobile Station

  • $3,600.00
Overview

Gain improved relative accuracy with centimeter-level precision positioning data using the D-RTK 2 High Precision GNSS Mobile Station, which supports all major global satellite navigation systems and provides real-time differential corrections.

Highlights

Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B

Connect multiple drones to conduct coordinated operations

IP65 Ingress Protection

Specifications

Simultaneously receives: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B


Positioning Accuracy:

Single Point

Horizontal: 1.5 m(RMS)

Vertical: 3.0 m(RMS)

RTK

Horizontal: 1 cm+ 1 ppm(RMS)

Vertical: 2 cm+ 1 ppm(RMS)

1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.


Ingress Protection Rating: IP65

Operating Temperature: -20° to 55° C (4° to 131° F )

Compatibility

The D-RTK 2 Mobile Station is compatible with Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2 and Matrice 300 RTK*. It also supports DPS (DJI Positioning Service), which provides high precision positioning data within the cover range of the base station, making it the ideal tool for surveying, aerial inspections, agriculture, and other industrial applications.

* Once updated to v03.00.0013 or above using DJI Assistant 2, the D-RTK 2 Mobile Station For Matrice Series is compatible with Phantom 4 RTK,
P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2, and Matrice 300 RTK by switching to the corresponding modes.





 D-RTK 2

  • D-RTK 2 Body × 1
  • Extension Rod × 1
  • Charging Hub × 1
  • AC Power Adapter × 1
  • Intelligent Battery (WB37) × 2
  • Battery Cover × 1
  • AC Power Cable × 1
  • USB-C Cable × 1
  • USB-C OTG Cable × 1
  • Hex Key × 1
