50kg spreading payload | 40kg spraying payload | Active Phased Array Radar + Binocular Vision | Dual Atomized Spraying System | Supports flight spraying/spreading and RC mapping | Core Modules IPX6K | EFI Generator 15% fuel saving

• 52 acres (21.3 Hectare) per flight hour
• 10.56 gallons (40 liters ) spray tank
• 12-megapixel adjustable camera
• 36 ft (11m) Swath (Spray Width)
• Centrifugal Nozzles
• Coaxial Twin Rotor

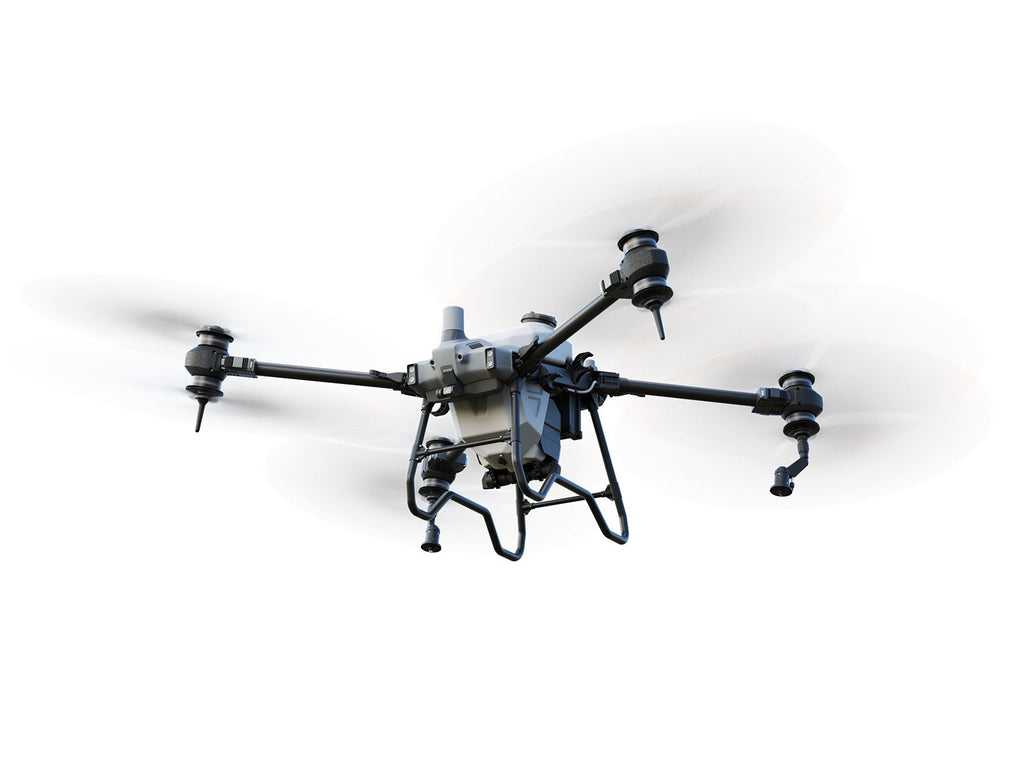

The DJI Agras T40 sprayer drone sprays up to 52 acres in one flight hour. This drone has four arms; however, on each arm, there are two motors and two pairs of propellers (54 inches props).

Payload Capacity
The DJI Agras T40 has a liquid payload of 40 liters (10.56 gallons). The tank can hold pesticides, herbicides, fungicides, and other liquid chemicals. Most of the Agras sprayer drone users spray between 1 to 5 gallons per acre which is a much more concentrated material used in ground applications. If you spray 2 gallons per acre, the DJI Agras T40 tank can hold enough liquid to spray up to five acres in one flight.

Dual Atomized Centrifugal Nozzles
The all-new dual atomized centrifugal nozzles have two spinners that make the droplets more uniform in size, avoid splashing, and dripping, and prevent clogging when spraying powder-based chemicals.

DJI Agras T40 centrifugal nozzle

Local Map Creation
For the first time, the Agras T40 has a 12-megapixel camera with an adjustable gimbal to take high-quality pictures of the field while flying, and Agras T40's remote controller can process the images in real-time.

RC mapping System ( maps 6.67 hectares in 10 mins)

The map creation process for orchard
First, the Agras T40 pilot draws out the border around the field that he wants to spray, then the Agras T40 drone will take off and takes pictures of the area and transmits them to the remote controller, where the remote controller works as a powerful computer and stitches the photos together to create a 3D map of the area then you will be able to create a spraying mission on the same remote controller for your DJI Agras T40 drone to spray the orchard or the mountainous areas. If you would like to spray corn, soybean, sugar cane, row crops, or any other flat crop, you do not need to take pictures first, and you can create a 2D spray mission on the google map on your Agras T40 remote controller.

Battery
The Agras T40 battery can be charged in almost 10 minutes when the charger is connected to a three-phase 240-volt outlet.

The Agras T40 battery has 1,500 Charging cycles

Magnetic Drive Impeller Pump
Updated Magnetic drive Transmission Impeller Pumps of the Agras T40 have a Massive flow rate of 12L/min. The new DJI pump design separates the pump motor and the fluid to provide a zero-corrosion pump.

110 lbs (50 Kg) Spreader Attachment
The Agras T40 Spreader can carry 110 lbs (50kg) of dry material and has a 70 Liter tank. The T40 spreader's new lid is much larger, which increases the spreading efficiency by reducing the refilling time. The T40 users can spray 1.5 tons of dry material per flight hour at the standard flight height of 10 ft (3m), with a spread width of 22.9 ft (7m) and an operational speed of 15.65 mph when spreading 133 lbs per acre (150 kg per hectare).

Improved Obstacle Avoidance System
The new active phased array radar of the Agras T40 has a 164 ft (50m) detection range. In addition to the mentioned radar, the Agras T40 is equipped with a binocular vision system that allows 3D terrain mapping and optimal bypassing of obstacles.
