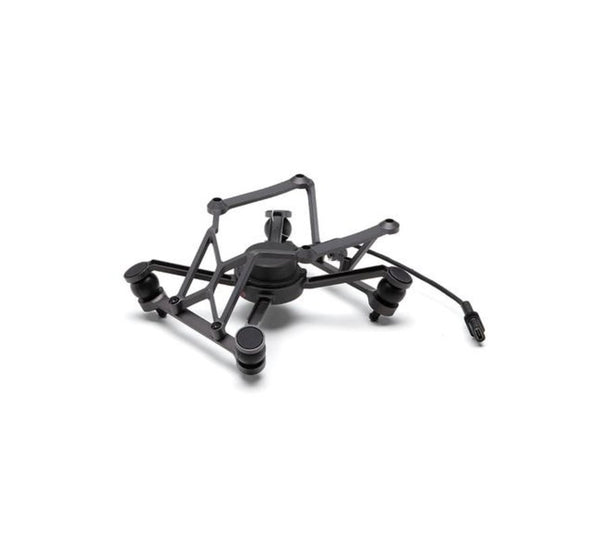

Matrice 300 Series Upward Gimbal Connector
The DJI Matrice 300 Single Upward Gimbal Connector is a payload mount that allows for a camera/sensor payload to be mounted on the top of the DJI Matrice 300 RTK. The design of the Single Upward Connector gives it an IP45 rating, but keep in mind that it must be equipped with a waterproof payload.
Compatible payloads consist of the Zenmuse H20, H20T, Z30 and other third party official DJI PSDK payloads. Note that the XT2 cannot be mounted on the upward gimbal mount.
Installing the Matrice 300 Single Upward Gimbal Connector
- Simply mount and screw in the four easy-connect mounting screws on the top on the top of the aircraft.
- Plug in the gimbal cable to the gimbal cable port on the top of the Matrice 300 RTK.
