DJI

UPC: 190021016668

The all-weather Zenmuse H30 combines a wide-angle, zoom, laser range finder, and NIR auxiliary light. With advanced intelligent algorithms, it excels in both day and night vision, making it ideal for public safety, energy inspection, water conservation, and forestry operations.

  • Wide Camera: 48 MP 1/1.3" CMOS (24mm Focal Length)
  • Zoom Camera: 40 MP 1/1.8" CMOS (34x Optical Zoom, 400x max digital zoom)
  • Laser RangeFinder: 3 km (~9842 ft) Range
  • NIR Auxiliary Light: Provides better auxiliary illumination for zoom camera
DJI Care Enterprise: Basic
Price:
$3,520.00

This Product is on Pre-Order - This product has recently launched and we have not received our initial batch.

Please note all pre-orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. If the product does not ship within 8 weeks, an automatic refund will be issued for your order. You may cancel an order at any time by calling 844-474-8833.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

The all-weather, multi-sensor flagship Zenmuse H30 Quad-Sensor Camera integrates four modules—a wide-angle camera, a zoom camera, a laser rangefinder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations including public safety, energy inspection, water conservation, and forestry. public safety, energy inspection, water conservation, and forestry.

All-Weather, Full-Day and Multi-Sensor Flagship Payload

  • Wide Camera: 48 MP 1/1.3" CMOS (24mm Focal Length)
  • Zoom Camera: 40 MP 1/1.8" CMOS (34x Optical Zoom, 400x max digital zoom)
  • Laser RangeFinder: 3 km (~9842 ft) Range
  • NIR Auxiliary Light: Provides better auxiliary illumination for zoom camera

The Zenmuse H30 empowers operators with high-magnification zoom once a target is recognized using the wide camera view/sensor. The laser rangefinder provides distance and location information of a subject which can be mission-critical information in many applications such as search and rescue, inspection, and more.

Laser ranging can measure the distance of objects within the measurement range (up to 3 km), and displays the distance from the aircraft, relative height, and GPS position of the measured object.

Superior Zoom Performance

  • 34x max. optical zoom
  • 400x max. digital zoom
  • Optimized stabilization in telephoto video
  • Maintained clarity during zooming
  • Faster focusing speed

 Additional Features of the Zenmuse H30T

    • IP54 Rating
    • -20°C to 50°C (-4°F to 122°F) operating temperature
    • Active image stabilization and EIS
    • Night scene mode

Zenmuse H30 Intelligent Camera Functions

Click to Aim: No more having to waste time trying to use your gimbal yaw and tilt controls, simply double-click on the point of interest and your camera/gimbal will automatically move to the point of interest.

Smart Track: Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

High-Res Grid Photo: This function allows you to take an overview photo using the wide camera sensor, and using the zoom camera, a set of 40 MP images will be captured of the grid area. This allows you to efficiently be able to observe a subject and easily be able to view the subject in greater detail.

Night Scene: This function provides great vision benefits in low-light environments with enhanced noise reduction and IR light options.

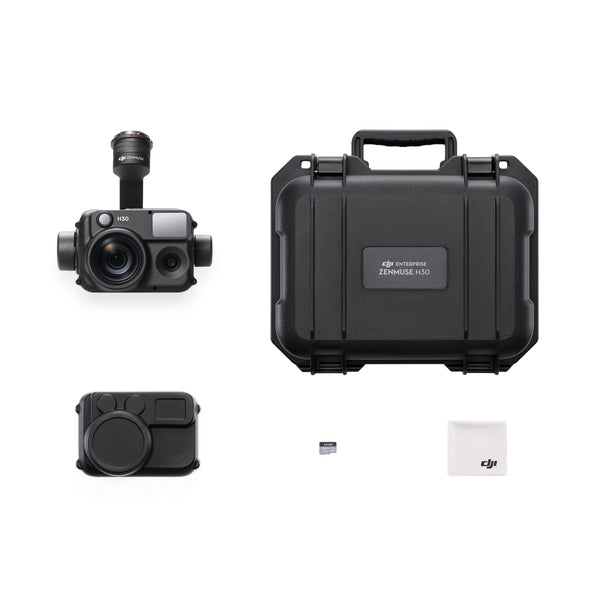

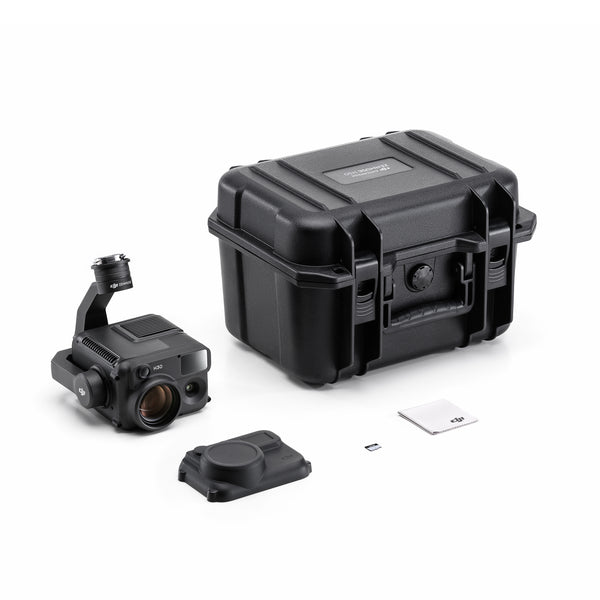

  • H30 Gimbal & Camera x1
  • Lexar Professional 1066x UHS-I microSDXC Memory Card 64GB x1
  • Storage Case x1
  • Lens Cleaning Cloth x1

General

  • Product Name

  • Zenmuse H30 Series

  • Dimensions

  • 170×145×165 mm (L×W×H)

  • Weight

  • 920±5 g

  • Power

  • H30: 26 W
    H30T: 28 W

  • Ingress Protection Rating

  • IP54

    Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

  • Supported Aircraft

  • Matrice 300 RTK (requires DJI RC Plus)
    Matrice 350 RTK

Environment

  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

  • Storage Temperature

  • -20° to 60° C (-4° to 140° F)

Gimbal

  • Stabilization System

  • 3-axis (tilt, roll, pan)

  • Angular Vibration Range

  • Hover: ±0.002°
    Flight: ±0.004°

  • Mounting

  • Detachable DJI SKYPORT

  • Mechanical Range

  • Tilt: -132.5° to +73°
    Roll: ±60°
    Pan: ±328°
    (Structural limit, not controllable range)

  • Controllable Range

  • Tilt: -120° to +60°
    Pan: ±320°

  • Operation Mode

  • Follow/Free/Re-center

Zoom Camera

  • Sensor

  • 1/1.8-inch CMOS, Effective Pixels: 40 MP

  • Lens

  • Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
    Aperture: f/1.6-f/5.2
    DFOV: 66.7°-2.9°

  • Focus Mode

  • MF, AFC, AFS

  • Exposure Mode

  • Manual, Auto

  • Exposure Compensation

  • ±3.0 (1/3 increments)

  • Metering Mode

  • Spot Metering, Average Metering

  • AE Lock

  • Supported

  • Electronic Shutter Speed

  • 1/8000-2 s

  • ISO Range

  • Single Shot: 100-25600
    Night Scene: 100-819200

  • Video Resolution

  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
    Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps

  • Video Format

  • MP4

  • Video Subtitles

  • Supported

  • Video Codec and Bit Rate Strategy

  • H.264, H.265
    CBR, VBR

  • Max Photo Size

  • 7328×5496, 3664×2748

  • Photo Format

  • JPG

Wide-Angle Camera

  • Sensor

  • 1/1.3-inch CMOS, Effective Pixels: 48 MP

  • Lens

  • Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
    Aperture: f/1.7
    DFOV: 82.1°

  • Focus Mode

  • MF, AFC, AFS

  • Exposure Mode

  • Manual, Auto

  • Exposure Compensation

  • ±3.0 (1/3 increments)

  • Metering Mode

  • Spot Metering, Average Metering

  • AE Lock

  • Supported

  • Electronic Shutter Speed

  • 1/8000-2 s

  • ISO Range

  • Single Shot: 100-25600
    Night Scene: 100-409600

  • Video Resolution

  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
    Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps

  • Video Format

  • MP4

  • Video Subtitles

  • Supported

  • Video Codec and Bit Rate Strategy

  • H.264, H.265
    CBR, VBR

  • Max Photo Size

  • 8064×6048, 4032×3024

  • Photo Format

  • JPG

Infrared Thermal Camera (H30T)

  • Thermal Imager

  • Uncooled VOx Microbolometer

  • Lens

  • Focal Length: 24 mm (equivalent focal length: 52 mm)
    Aperture: f/0.95
    DFOV: 45.2°

  • Digital Zoom Equivalent

  • 32×

  • Video Resolution

  • 1280×1024@30fps

  • Video Format

  • MP4

  • Video Subtitles

  • Supported

  • Video Codec and Bit Rate Strategy

  • H264, H265
    CBR, VBR

  • Photo Resolution

  • 1280×1024

  • Photo Format

  • R-JPEG

  • Pixel Pitch

  • 12 μm

  • Spectral Band

  • 8-14 μm

  • Noise Equivalent Temperature Difference (NETD)

  • ≤ 50 mk@f/1.0

  • Temperature Measurement Method

  • Spot Measurement, Area Measurement, Center Point Temperature Measurement

  • Temperature Measurement Range

  • High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
    Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)

  • Temperature Alert

  • Supported

  • Sun Burn Protection

  • Supported

  • FFC

  • Auto, Manual

  • Palette

  • White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

  • Wavelength

  • 905 nm

  • Measurement Range

  • 3-3000 m
    Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*

    The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
    * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).

  • Measurement Accuracy

  • ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
    ‌> 500 m: ±1.0 m

  • Laser Spot Size

  • @100 m: approx. 50×450 mm
    @1000 m: approx. 450×4500 mm

  • Safety Regulation Level

  • Class 1

  • Accessible Emission Limit (AEL)

  • 260 nJ

  • Reference Aperture

  • 18 mm

  • Max Laser Pulse Emission Power Within 5 Nanoseconds

  • 52 W

NIR Auxiliary Light

  • Wavelength

  • 850 nm

  • FOV

  • 4.6±0.6° (Round)

  • Safety Regulation Level

  • Class 1

  • Illumination Range

  • @100 m: Approx. 8m diameter circle

Special Features

  • Hybrid Optical Zoom

  • 34×

  • Max Zoom

  • 400×

  • Link Zoom

  • Supported

  • Click to Aim

  • Supported

  • High-Res Grid Photo

  • Supported

  • Night Scene

  • Supported

  • Timestamp

  • Supported

  • Smart Capture

  • Supported

  • Video Pre-Recording

  • Supported

  • UHR Infrared Image

  • Supported

Data Storage

  • Supported microSD Cards

  • U3/Class10/V30 or above is required, or use a memory card from the recommended list.

  • Supported File System

  • exFAT

  • Recommended microSD Cards

  • SanDisk Extreme Pro V30 A1 32GB microSDHC
    Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
    Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC

    Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.

Post-Processing Software

  • Mapping Software

  • DJI Terra, DJI FlightHub 2

  • Infrared Analysis Software

  • DJI Thermal Analysis Tool 3
