DJI - Zenmuse S1 Spotlight for Matrice 300 and 400 Series

Save 9%
DJISKU: CP.EN.00000650.01

UPC: 190021136137


The Zenmuse S1 is DJI’s high-intensity LEP spotlight, purpose-built for the Matrice 300 Series and now fully compatible with the Matrice 400 Series. It delivers an impressive 10,000 lumens and 35 lux at 100 meters, with the capability to illuminate targets up to 500 meters away—ideal for long-range visibility in low-light environments. Weighing just 760 grams, the S1 combines lightweight efficiency with IP54-rated durability, automatic safety features, and gimbal-synced control, making it a reliable and essential tool for demanding nighttime operations.

Price:
Sale price$1,720.00 Regular price$1,900.00

This Product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Special Orders over $5000.00 require payment by Wire Transfer or ACH.

Talk to an Expert



Dale Hylton - Sales Engineer
12+ Years of Experience in Unmanned Systems, Including UAVs, ROVs, USVs, and Robotics Solutions for Commercial, Industrial, and Public Safety Applications.

844-474-8833 x2

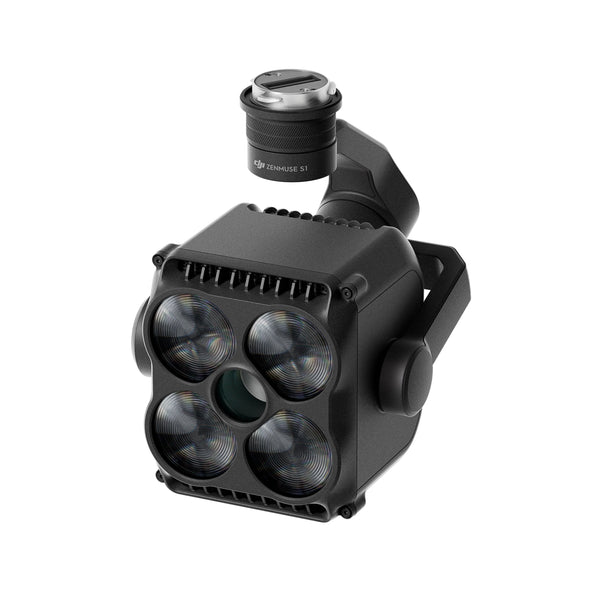

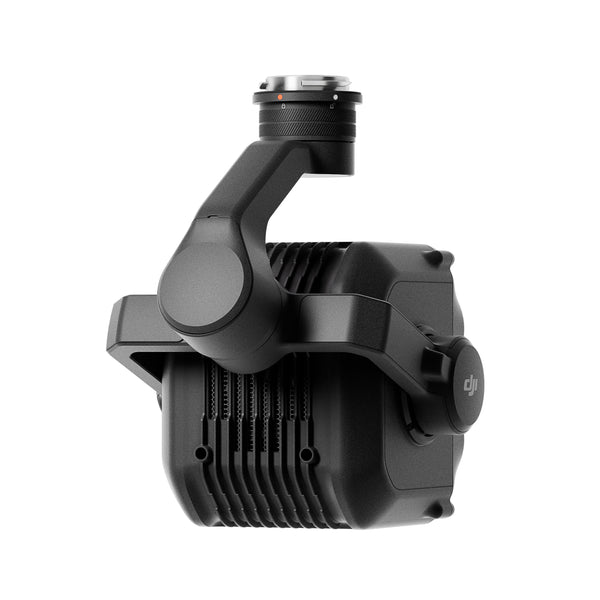

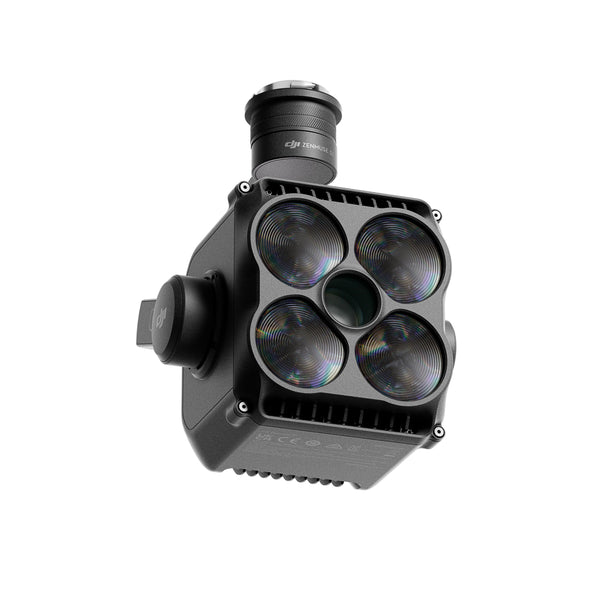

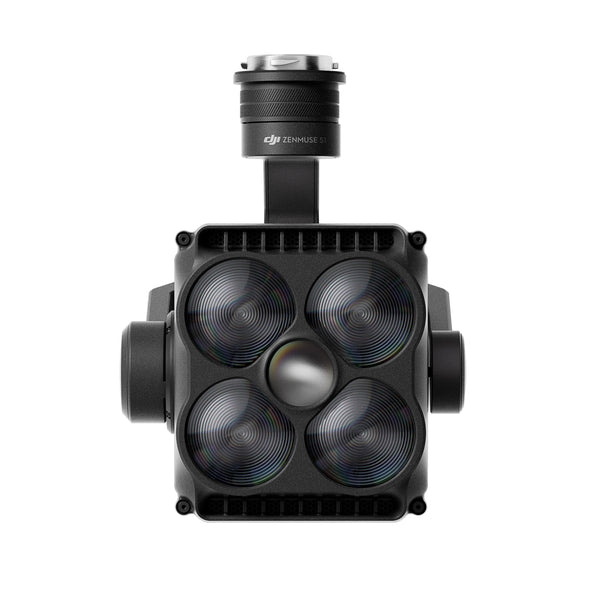

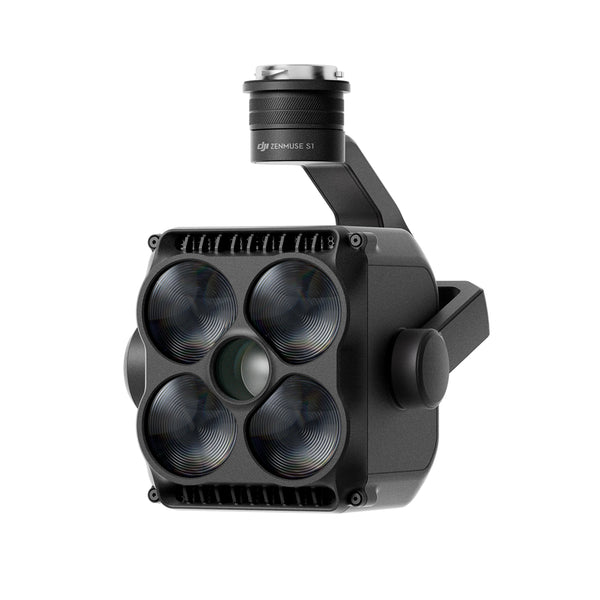

DJI Zenmuse S1 – High-Powered Spotlight for Nighttime Operations

The DJI Zenmuse S1 is DJI’s first high-powered spotlight designed for multi-payload drone platforms, compatible with the Matrice 350 RTK and Matrice 300 RTK. Utilizing advanced Laser Excited Phosphor (LEP) technology, the S1 delivers up to 10,000 lumens of brightness, with a central illuminance of 35 lux at 100 meters. This powerful beam enables visibility up to 500 meters (1,640 ft), ensuring clear visual support in complete darkness.

The Zenmuse S1 is an indispensable payload for public safety, emergency search and rescue, infrastructure inspections, and other critical nighttime operations.


Multiple Lighting Modes for Any Scenario

The Zenmuse S1 offers four selectable lighting modes to meet different mission needs:

  • Low Beam:
    A broad 15° beam reaching approx. 150 m (492 ft), ideal for close-range lighting. Matches the FOV of zoom cameras at 5× and above.

  • High Beam:
    A narrow 4° spotlight reaching up to 300 m (984 ft). Concentrated light for long-range targeting with low power draw—sized to the FOV of a camera at ~15× zoom.

  • Both On:
    Low and High beams activated together for maximum intensity and range. Effectively lights targets up to 500 m (1,640 ft), providing focused and wide-area coverage.

  • Strobe:
    5 Hz flashing light for signaling and hazard awareness. Perfect for emergency visibility or aerial warnings in low-visibility conditions.


Brightness Meets Energy Efficiency

Despite delivering 35 lux at 100 m, the Zenmuse S1 draws only 17 W in High Beam mode, maintaining low power consumption and preserving valuable flight time on your Matrice drone.


Reliability & Safety, Built‑In

  • Comprehensive Payload Protection:
    On-board temperature, over-current, and power regulation protect internal components and extend service life.

  • Cool-to-Touch Shell:
    The outer housing never exceeds 50 °C / 122 °F, eliminating burn risk during or after use.

  • Automatic Eye Protection:
    When the drone is grounded or hovering, output is automatically limited to 40% to prevent glare for ground crews and pilots.


One‑Touch Control via Remote Shortcuts

Use the DJI RC Plus custom buttons to instantly toggle light on/off, adjust brightness, or change lighting modes—keeping your focus on the mission, not the menu.


Engineered for the Elements

With an IP54 rating and a -20 °C to 40 °C (‑4 °F to 104 °F) operating range, the S1 is built to withstand dust, drizzle, and extreme temperatures for year-round deployments.


Flexible Mounting, Lightweight Build

At just 0.76 kg, the S1 supports mounting on any single or dual downward gimbal port, or even the upward gimbal mount, allowing flexible integration with cameras, speakers, or other payloads depending on your mission needs.

  • 1 X Zenmuse S1 Spotlight Payload
  • 1 X Gimbal Port Protection Cap
  • 1 X Storage Box
  • 1 X Lens Protection Rubber Cap
  • 1 X Lens Cleaning Cloth
  • 1 X Manuals

Zenmuse S1 – Technical Specifications

General

  • Weight: 760 ± 10 g
  • Dimensions: 125 × 152 × 171 mm (L × W × H)
  • Rated Power: 68 W


Supported Aircraft:

  • Matrice 300 RTK (requires DJI RC Plus)
  • Matrice 350 RTK
  • Matrice 400 Series


Eye Safety Class: IEC 62471: Risk Group 1

Shell Temperature: < 50° C (122° F)
(Plastic shell – measured at 25° C/77° F ambient temperature)

Ingress Protection Rating: IP54
(Tested under IEC 60529 standards – IP rating may degrade over time)

Environmental Conditions

  • Operating Temperature: -20° to 40° C (-4° to 104° F)
  • Storage Temperature: -20° to 60° C (-4° to 140° F)

Gimbal

  • Stabilization System: 3-axis (tilt, roll, pan)
  • Angular Vibration Range: ±0.01° (Hover) ±0.02° (Flight)
  • Mounting: Detachable DJI SkyPort
  • Mechanical Range: Tilt: -129° to +73° Roll: ±55.8° Pan: ±327° (structural limits)
  • Controllable Range: Tilt: -120° to +60° Pan: ±320°
  • Operation Modes: Follow / Free / Re-center

Illuminance & Beam Specs

  • Max Central Illuminance (Both On Mode): 35 lux @ 100 m
  • Low Beam Central Illuminance: 13 lux @ 100 m
  • High Beam Central Illuminance: 30 lux @ 100 m
    (All values measured at 25° C ambient temperature in lab conditions)
  • Effective Illumination Distance: Up to 500 m (Both On mode)
  • Effective Illumination Angle: 15 ± 1° (Low Beam / Both On mode) 4 ± 0.5° (High Beam mode)
  • Typical Color Temperature: 6500 K (Low Beam) 7500 K (High Beam)
  • Dimming Mode: Analog dimming

Lighting Features

  • Lighting Control: Turn light on/off, Adjust brightness
  • Lighting Modes: Low Beam mode, High Beam mode, Both On mode
  • Strobe Mode: 5 Hz flashing
  • Remote Controller Integration: Assignable buttons for light on/off, brightness, or mode changes
  • Gimbal Synchronization: Supports synchronized control with other gimbal payloads

Special Features

  • Eye Protection: Automatically limits brightness to 40% when not in flight
  • Payload Protection: LEP & LED temperature protection, Overcurrent and power safeguards, Designed to prevent internal damage during high-stress use
