Evo II Pro 6K RTK Rugged Bundle V3

  • $3,800.00

The NEW EVO II Version 3

This is NOT backwards compatible with any other remote controls.  It will work with existing EVO II Batteries.

Evo II Pro 6K RTK Rugged Bundle V3

CENTIMETER-LEVEL POSITIONING
The EVO II RTK Series V3 integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

  • RTK Horizontal Positioning Accuracy: 1cm+1ppm
  • RTK Vertical Positioning Accuracy: 1.5cm+1ppm
  • 5cm* absolute horizontal accuracy of photogrammetric models

*2.74 cm GSD when flying at 100 m height, Inertial Explorer for post processing

No GCP Required
EVO II RTK Series V3 connects to NTRIP network and does not need GCPs to provide centimeter grade accuracy.

3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP compatible base stations.

Robust Partnerships

  • Pix4d
  • DroneDeploy
  • Propeller
  • Skyebrowse
  • SkyLine

Autel Explorer for Mapping - Advanced Feature Sets

  • Create Rectangular or Polygon Missions
  • Supports Double grid mapping for additional angles
  • Non stop turning on corners saves time and battery life
  • Customizable course headings to meet all user flight orientation requirements
  • Have complete manual control over camera settings

Multi-NTRIP Profile Saving
The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info every travel.

Multi-Battery Missions
The EVO II RTK Series V3 returns to where it left off in multi-battery missions without starting from the beginning.

Photo Replication
For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

  • Replication 3
  • Replication 2
  • Replication 1
  • First shot


EVO 2 V3 Compatibility Chart

Aircraft
Weight (with propeller and battery) 2.75 lbs (1250g) EVO II DUAL 640T RTK V3
2.73 lbs (1237g) EVO II PRO RTK V3
Size 230*130*143mm(folded)
260*355*143mm(unfolded)
Max flight time 36 min (Windless environment)
Operating temperature range 14-104°F (-10-40°C)
Wind Resistance Force 8 wind
Hovering accuracy When RTK is enabled and RTK works normally:
Vertical: ± 0.1m
Horizontal: ± 0.1m
RTK is not enabled:
Vertical:
±0.1m (with visual positioning in normal operation)
±0.5m (with GNSS in normal operation)
Horizontal:
±0.3m (with visual positioning in normal operation)
±1.5m (with GNSS in normal operation)
GNSS
Single frequency high sensitivity GNSS GPS + BeiDou+Galileo (Asian Region)
GPS + GLONASS + Galileo (Other Region)
Multi-frequency multi-system high-precision RTK GNSS Frequency points used:
GPS: L1/L2
GLONASS: L1/L2
BeiDou: B1/B2
Galileo:E1/E5
First positioning time: <50s
Positioning accuracy:
Vertical: 1.5cm + 1ppm* (RMS)
Horizontal: 1cm + 1ppm (RMS)
*1ppm means that the error increases by 1mm for every 1km of the aircraft moving
RC and Image Transmission
Max Transmission Distance (unobstructed, free of interference) FCC:15km
CE:8km
Display screen 2048x1536 60fps
Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)
Charging time 120 minutes
Internal Storage ROM 128GB
EVO II Pro RTK V3 Camera
Sensor 1 inch CMOS; 20M pixels
Lens FOV: 82°
35 mm format equivalent focal length: 29 mm
Aperture: f/2.8 - f/11
Focus range: 0.5 m to infinity
ISO range Video: 100-44000
Photo: 100-6400
Zoom 1-16x (up to 3x lossless zoom)
Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Photo mode 5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24

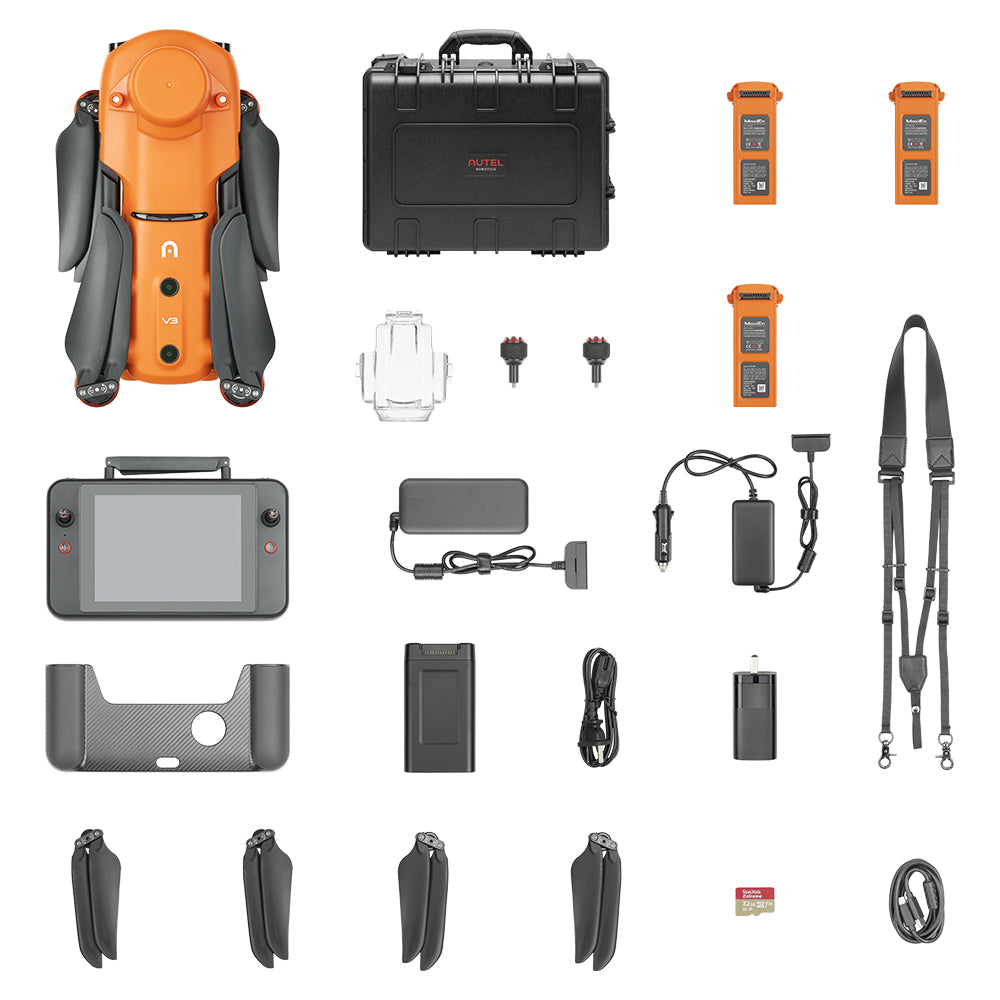

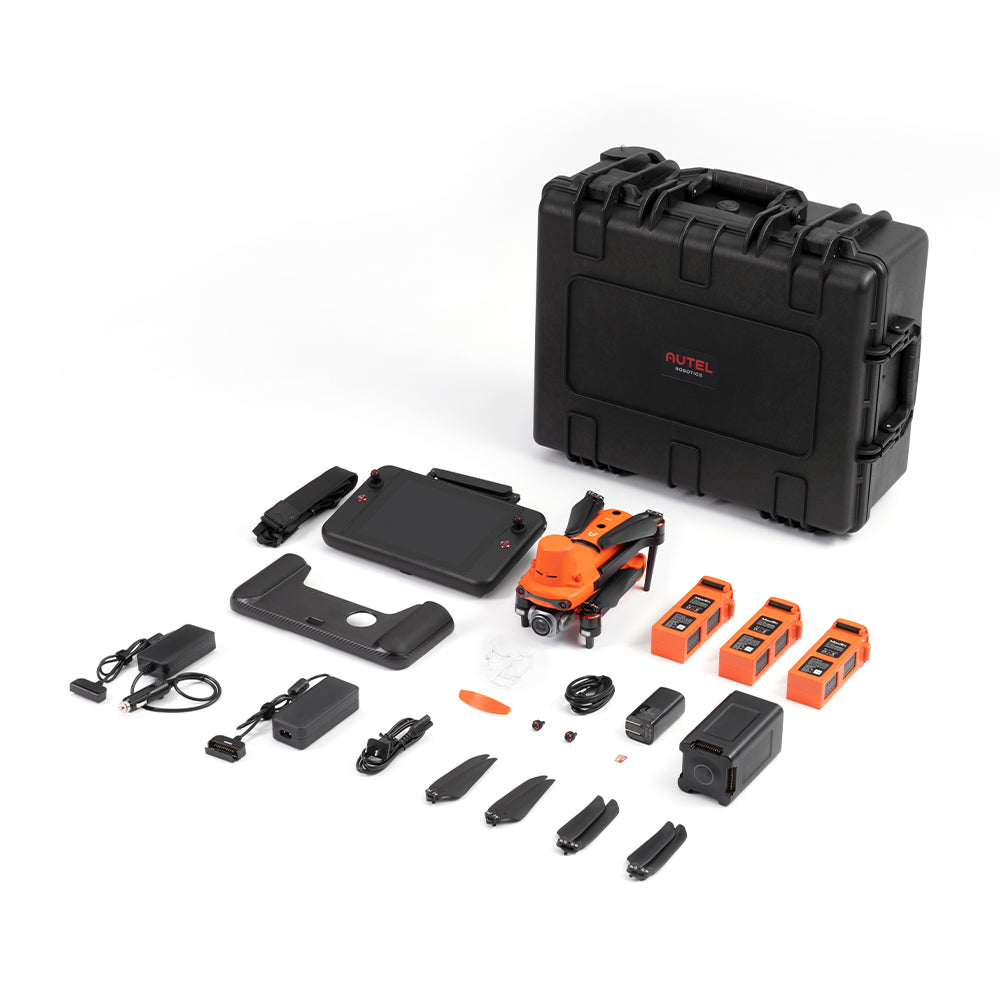

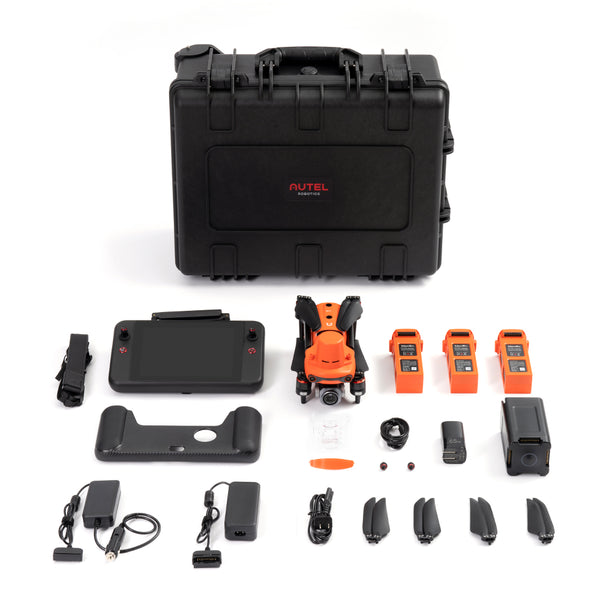

Evo II V3 Pro RTK Rugged Bundle Quantity
Aircraft (including battery, propellers, RTK Module, and gimbal cover) 1
Autel Robotics V3 7.9" Smart Controller (with controller case) 1
Spare Propellers (pair) 2
Smart Controller USB-C Charging Cable & Power Brick 1
Battery Charger (Wall Cord and Power Converter) 1
Spare Battery 2
Spare Controller Sticks 1 Set
32 GB SD Card 1
Smart Controller Hanging Neck Strap 1
RTK Module Attachment Port Cover 1
Evo II Battery Car Charger 1
Evo II Battery Multicharger 1
