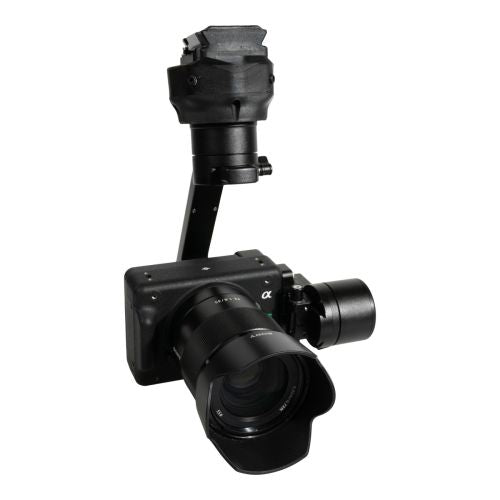

Combining the sensor and resolution of its mirrorless counterparts, the Sony ILX-LR1 Industrial Camera is tailored to capture stunning 4K imagery while remaining light enough to be mounted onto drones or industrial equipment. Weighing under 9 oz, its simplified design features an interchangeable E-mount for versatile lens options. Despite its compact size, it boasts numerous controls, HDMI and USB-C outputs, an SD card slot, and options for terminal power and remote control.

Designed for Ease of Integration

The ILX-LR1 is significantly lighter than conventional Alpha cameras, making it ideal for tasks like inspection, investigation, surveying, and mapping. Its slim, viewfinder-less form factor and integrated controls make it suitable for a variety of industrial applications.

High-Resolution Imaging

Equipped with a full-frame back-illuminated Exmor R CMOS sensor boasting approximately 61MP, the camera offers exceptional sensitivity, resolution, and dynamic range. Powered by the BIONZ XR image processing engine, it delivers natural gradations and realistic colors with low noise for both stills and movies. This high resolution and low noise capability enables detailed imaging, revealing fine details like small scratches and cracks, with a wide ISO range of 100-32000 ensuring adaptability to most daylight conditions.

Lightweight and Versatile

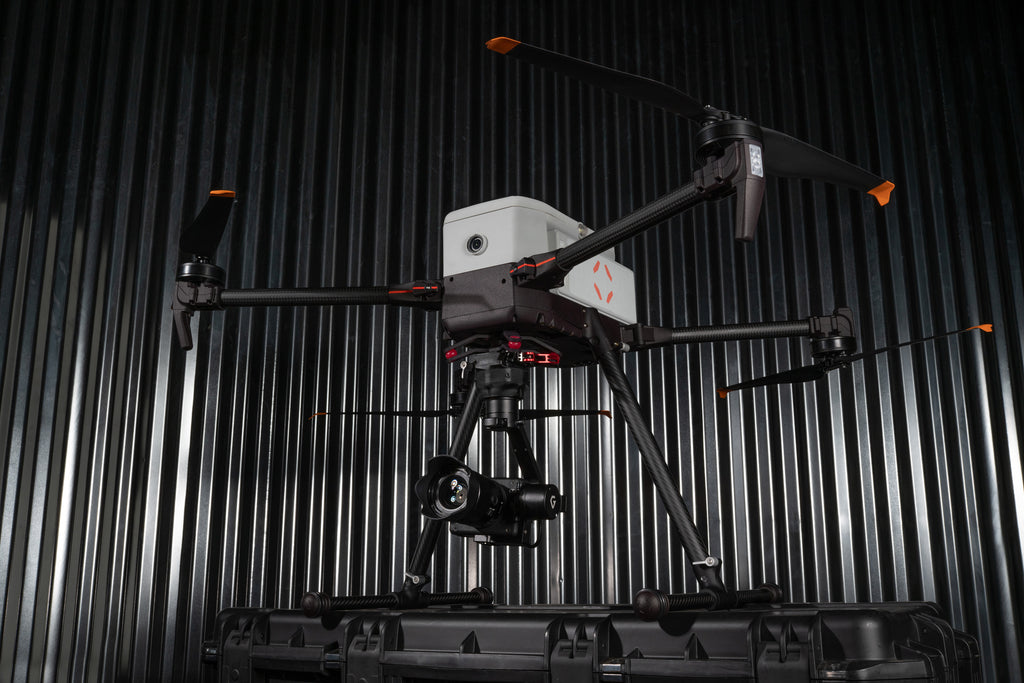

Design Designed for industrial applications where a conventional camera body is unnecessary, the ILX-LR1 features a lightweight and compact design. Its reduced weight allows for longer flight times and compatibility with smaller drones, facilitating quick completion of high-altitude shooting jobs. The camera's 3 fps continuous shooting capability is ideal for drone mapping, enabling rapid completion of high-altitude shooting tasks.

Dedicated Remote Software Development Kit (SDK)

The Sony Camera Remote SDK enables remote control of the ILX-LR1 menus and functions from custom software applications. Integration of an API allows remote control of camera settings, shutter release, live view monitoring, and more from a computer. This integration enables user applications to link unique image IDs with drone position data in post-processing.

Easy Mounting and Compatibility

Accepting DC power for extended operation without battery changes, the ILX-LR1 features power and recording indicator lamps for visual status checks. Its Power and Control Terminal provides power supply, exposure output, focus, and trigger from a single terminal for instant response in remote applications.

To prevent accidental changes to settings, the camera is equipped with a LOCK switch. Screw mounts on each of its six surfaces, along with micro-HDMI, top-lock USB-C, and grouped button controls, maximize mounting options.

Wide Selection of E-Mount Lenses

As an interchangeable lens camera, the ILX-LR1 is compatible with a wide range of E-mount lenses. Users can select the most suitable lens for any shot, including medium telephoto lengths. Utilizing a 61MP full-frame image sensor, a single high-altitude picture can replace several lower-resolution images from other cameras.

Key Features

• High-resolution 61MP full-frame Exmor R CMOS sensor
• Powered by the BIONZ XR processing engine
• Lightweight body specifically designed for drone use
• Supports Sony SDK for remote application control
• UHD 4K60 8-bit H.265/264 XAVC recording capability
• Equipped with an SD card slot for storage
• Features locking USB-C and micro-HDMI output ports
• Offers S-Log3/S-Cinetone profiles and more for enhanced versatility
• Includes a power/control terminal block input for flexible power options
