MicasenseSKU: 805-00090
High-resolution multispectral and RGB sensor

RedEdge-P features a high-resolution panchromatic band for pan-sharpened output resolutions of 2 cm / 0.8 in at 60 m / 200 ft.

Its five narrow multispectral bands with scientific-grade filters make it the perfect camera for calculating multiple vegetation indices and composites.

NDAA compliant.

Price:
$9,995.00
Request Quote

Government Customers:

Government customers are eligible for 30 days terms based on the issuance of a confirmed original purchase order on government letterhead. If you are a government agency and will be issuing a purchase order with 30 day terms, please notify your account manager. Credit terms for government agencies are not automatic so please discuss with your Blue Skies Drones account manager when submitting your order. All orders placed on terms must be shipped to a verifiable government address and will require adult signature.

Non-Government Customers:

Blue Skies Drones accepts credit card payments, money orders, certified checks, and wire transfers for customer purchases according to the following schedule below:

Credit Card Payments: Up to $5,000 can be charged on a credit card without incurring additional fees.

  • All credit card orders must be shipped to the credit card's billing address and will require a signature upon delivery.
  • Any amount above $5,000 requires another payment option below.

Wire Transfers: You can use a wire transfer to pay any Blue Skies Drones invoice. Please contact us for a quote to get wire transfer information

Money Order or Certified Check: You can mail a money order or certified check to: Blue Skies Drones, 1319 Grand Avenue, Centralia, WA 98531

Please fill out the quote request form to begin the purchase process.

If this product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

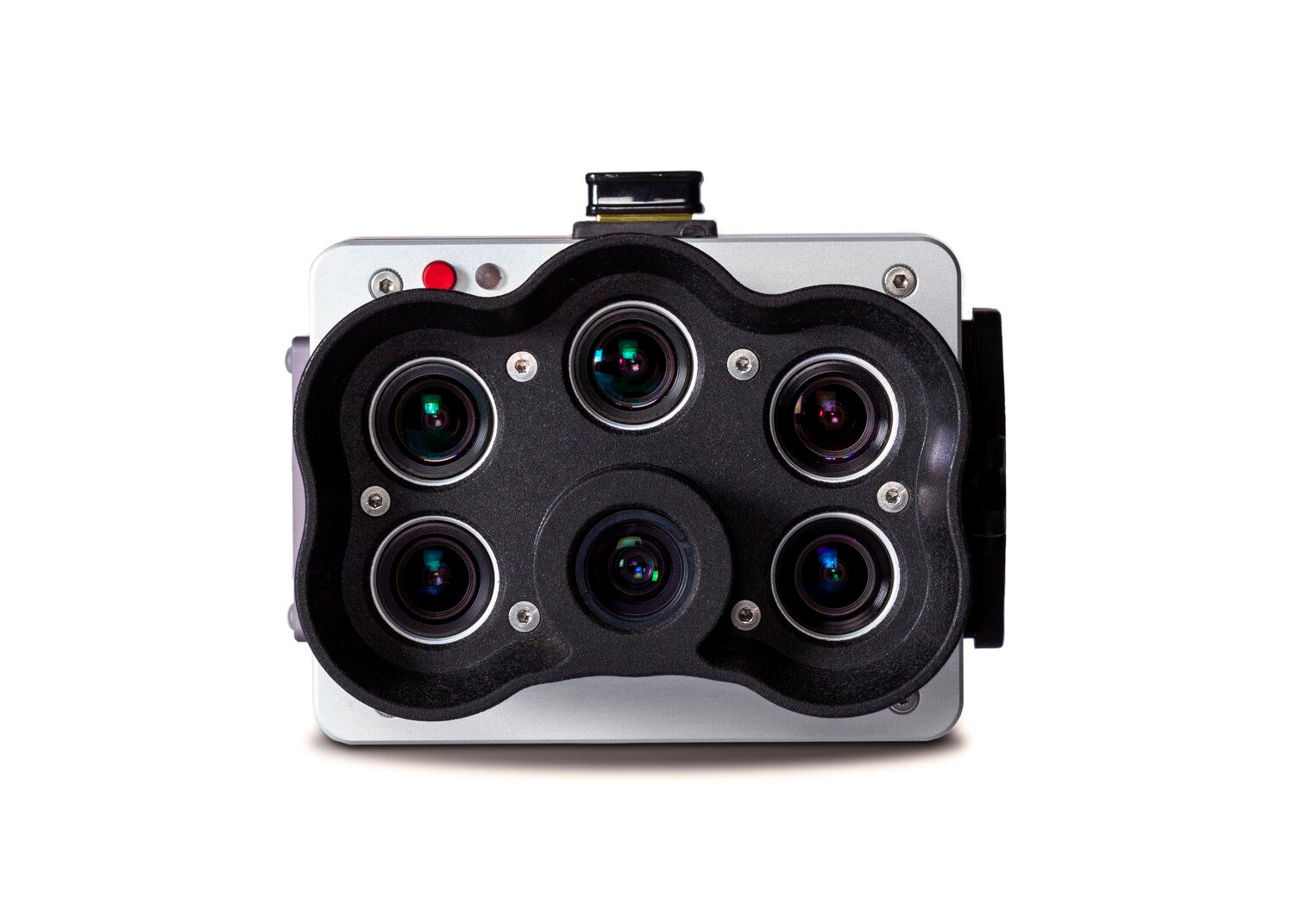

The RedEdge-P is a single camera solution for synchronized capture of calibrated high-resolution multispectral and RGB imagery, with an optimized FOV and capture rate for efficient flights. It seamlessly integrates a high-resolution all-color imager with synchronized multispectral imagers to enable pan-sharpened RGB and multispectral outputs at 2cm GSD from 60m, unlocking extensive analysis capabilities.

The sensor kit comes with: The RedEdge-P sensor, lens cover, a new professional removable storage standard in CFexpress, CRP 2 (the latest version of our calibrated reflectance panel), DLS 2 light sensor with integrated GPS, cables, mounting screws, hard carrying case.

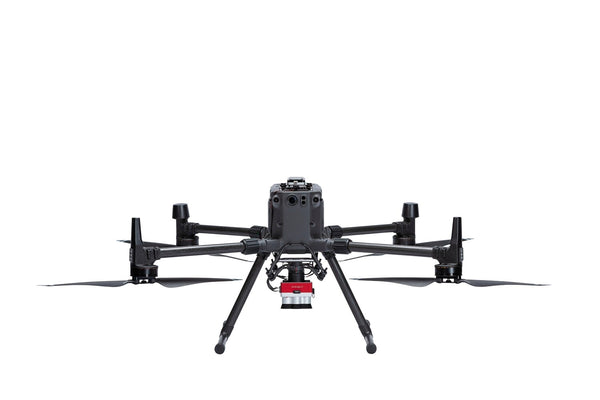

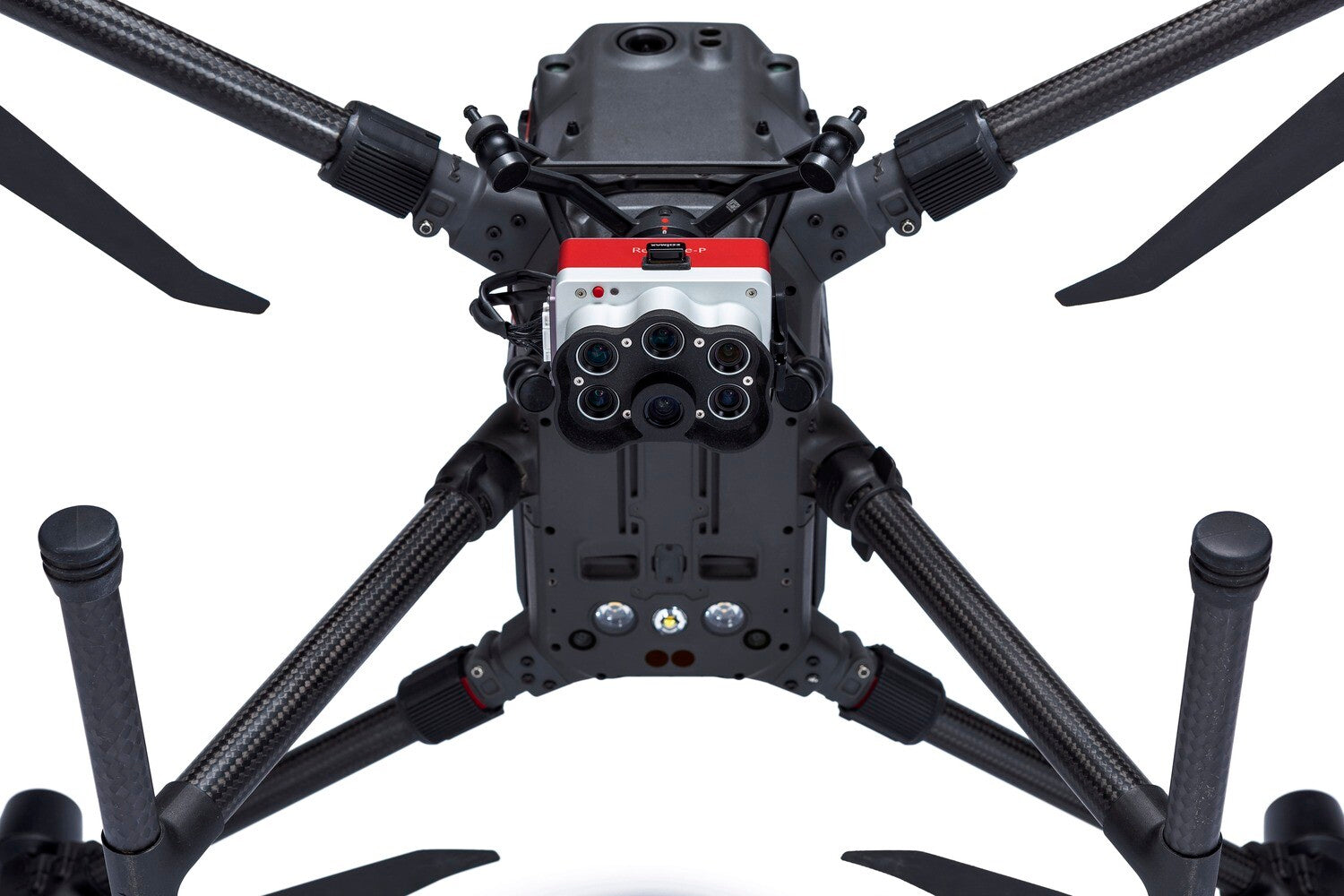

The RedEdge-P SkyPort comes ready to integrate with DJI SkyPort compatible drones (Matrice 300, Matrice 200 V1 and V2, and Matrice 210 V1 and V2) and enables RTK capabilities when integrated with the M300.

The sensor kit comes with: The RedEdge-P sensor, SkyPort adapter, lens cover, a new professional removable storage standard in CFexpress, CRP 2 (the latest version of our calibrated reflectance panel), DLS 2 light sensor with integrated GPS, cables, mounting screws, hard carrying case, and DLS2 mast kit.


Pan-sharpened resolution of:
  • 2cm/pixel at 60m
  • 4cm/pixel at 120m

Five spectral bans at 1.6mp each

CFexpress storage card for capture rate of 2-3 images per second

5.1MP panchromatic sensor

Specifications

  • Weight: 300g (10.6 oz.) RedEdge-P + DLS 2
  • Dimensions: 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)
  • External power: 7.0 V - 25.2 V
  • Spectral bands: Blue, green, red, red edge, near-IR (global shutter, narrowband)
  • Wavelength (nm): Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
  • RGB output: 5.1 MP (global shutter, aligned with all bands)*
  • Ground sample distance: 7.7cm per pixel (per MS band) at 120m AGL/3.98cm per pixel (panchromatic band) at 120m AGL
  • Capture rate: 2-3 captures per second raw DNG

  • RedEdge-P sensor with skyport
  • DLS 2 with embedded GPS
  • Calibrated Reflectance Panel (CRP 2)
  • USB WiFi dongle
  • Lens cover
  • Necessary integration cables
  • Assorted mounting hardware
  • CFexpress card
  • CFexpress card reader
  • Hard Carrying Case
  • Quick Start Guide

Weight

363 g / 12.8 oz. RedEdge-P + Wi-Fi + CFexpress card + DLS2 & cables

Dimensions

8.9 cm x 7.0 cm x 6.7 cm / 3.5 in x 2.8 in x 2.6 in

External Power

7.0 V - 25.2 V

Power Input

5.5 / 7.0 / 10W (standby, average, peak)

Sensor Resolution

1456 x 1088 (1.6 MP per MS band), 2464 x 2056 (5.1 MP panchromatic band)

Spectral Bands

Blue (475nm ±32nm), Green (560nm ±27nm), Red (668nm ±14nm), Red Edge (717nm ±12nm), NIR (842nm ±57nm)

RGB Color Output

5.1 MP (global shutter, aligned with all bands) *with appropriate post-processing

Capture Rate

Up to 3 captures per second raw DNG - Capture rates vary based on write speed of USB storage device

Multispec GSD (per multispec band)

7.7 cm per pixel at 120m / 3 in per pixel at 400 ft

Panchro & Pansharpened GSD

3.98 cm per pixel at 120m / 1.56 in per pixel at 400 ft

Interfaces

3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage

Field of View

50° HFOV x 38° VFOV (MS), 44° HFOV x 38° VFOV (PAN)
