RadSys Zond Aero 600 NG GPR system

SPH EngineeringSKU: IS-RS-ZOND-AERO-600-NG

Applications

The Zond Aero 600 NG is a truly versatile system that can be used in many applications, including but not limited to:

  • Utility Search
  • Underground infrastructure mapping
  • Archaeology
  • Geotechnical surveys
  • Geological stratigraphy
  • Glaciology, snow/ice thickness profiling
Request a Quote

In light of all the current implemented tariffs in place, all quotes are subject to tariffs upon delivery.

The manufacturer does not allow us to advertise this product's price online. Please use the form button below or Call +1 (844) 474-8833 Our team will be happy to provide and answer any questions you might have.

Have questions? Want to see sample footage or data? We're here to help. Free consultations conducted by our specialists.

This Product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Special Orders over $5000.00 require payment by Wire Transfer or ACH.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

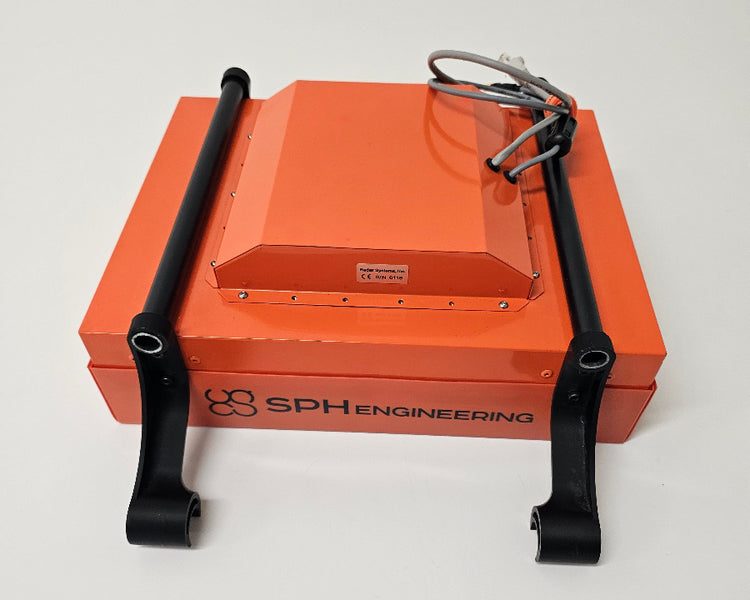

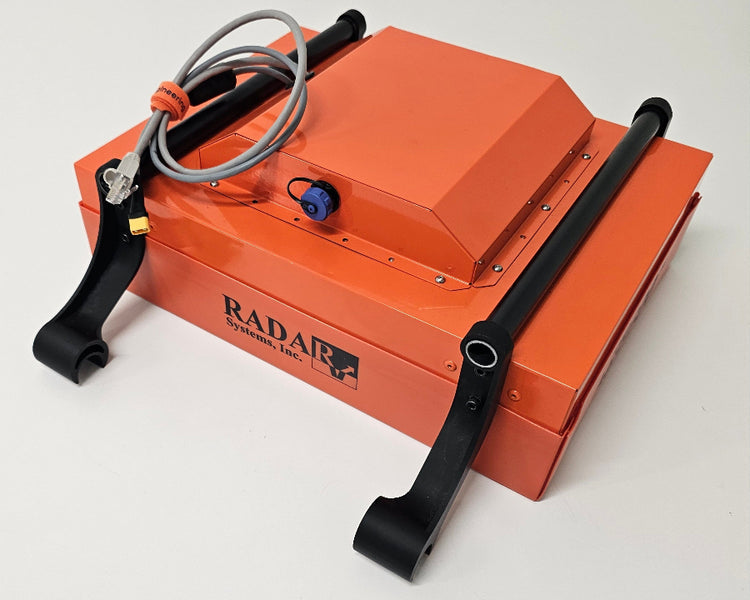

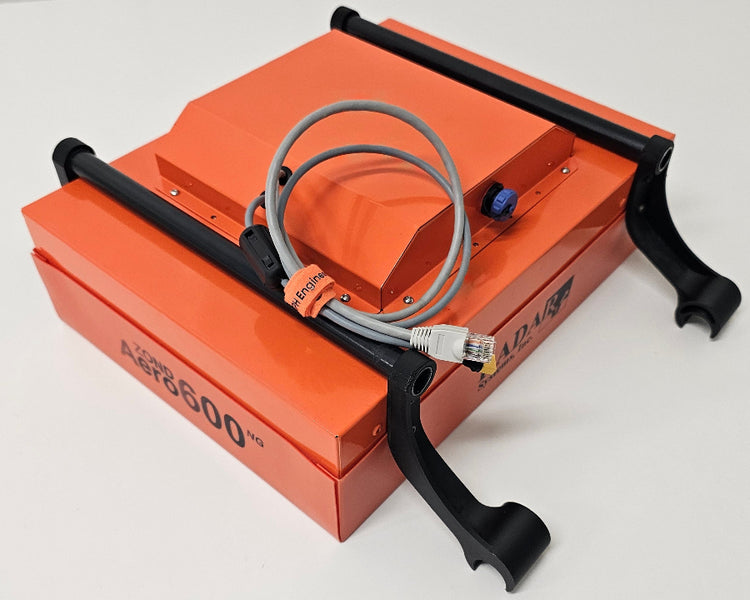

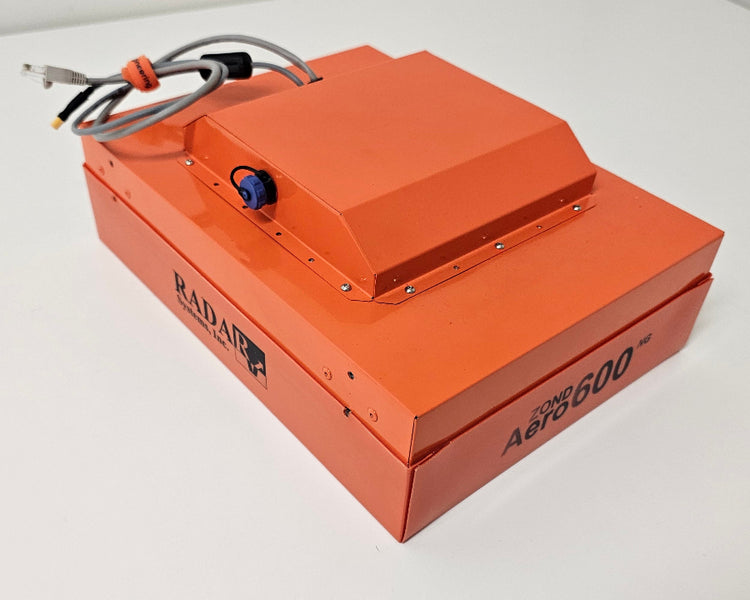

Universal ground penetrating radar system for terrestrial and airborne surveys with real-time sampling (RTS) technology and advanced built-in digital signal processing to provide high quality data with an exceptional signal-to-noise ratio.

The Zond Aero 600 NG is a slightly smaller model than the Aero 500 NG. It offers virtually the same data and penetration, but fits between the legs of most popular drones on the market without the need for complicated mounting hardware.

The Zond Aero 600 NG is a truly versatile system that can be used in the most appropriate way for specific survey conditions:

  • on a cart - the most standard method for scanning on the streets or in confined spaces
  • dragged with a tow rope if the load-bearing capacity of the ground surface is not suitable for a wheeled cart

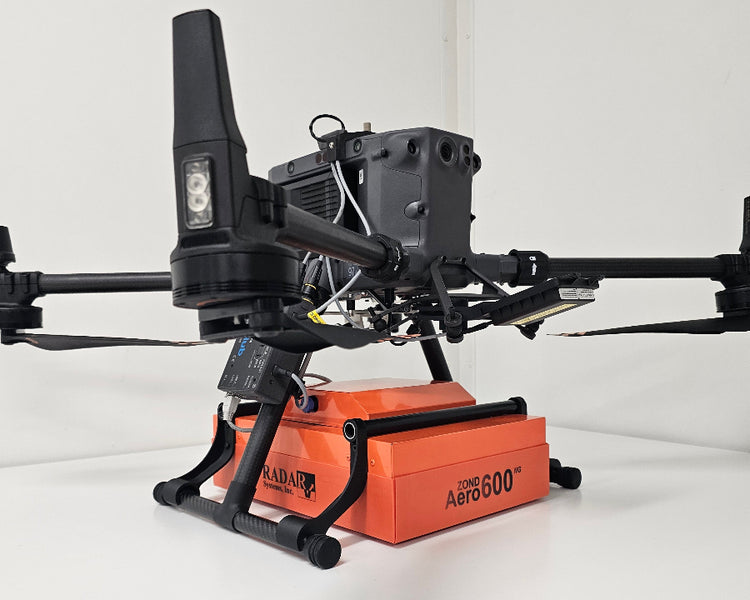

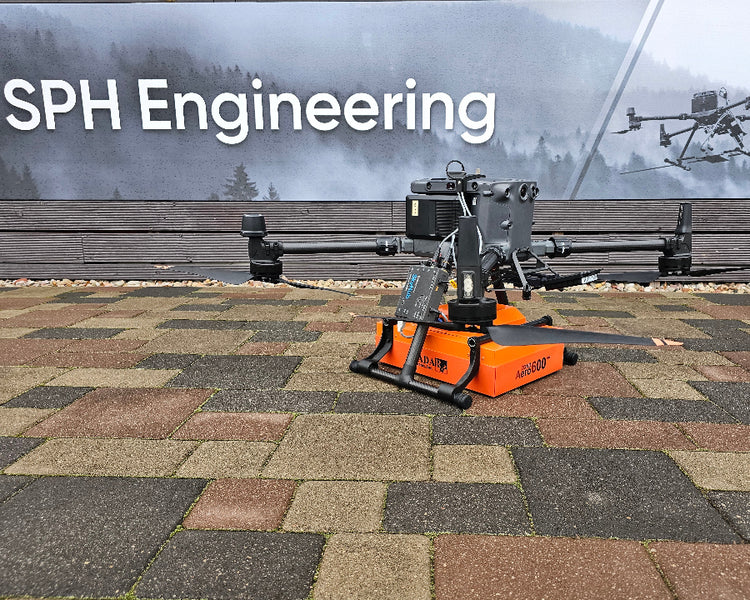

  • on a drone for large open areas without tall obstacles and vegetation

Lightweight GPR system on the market, suitable for medium-sized drones like DJI M400/M350/M300.

The user is responsible for checking the suitability of a given GPR model for use in a particular country.

Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set. Please ask for the quote.





  • Zond Aero 600 NG GPR system with 600 MHz center frequency antenna
  • Prism 2 Data Acquisition/Processing software
  • Protective case (also used for ground surveys)
  • 99 W/h Li-Ion battery integrated into the case (used for ground surveys only)
  • Wi-Fi router integrated into the case (used for ground surveys only)
  • Charger
  • Tow rope for terrestrial surveys

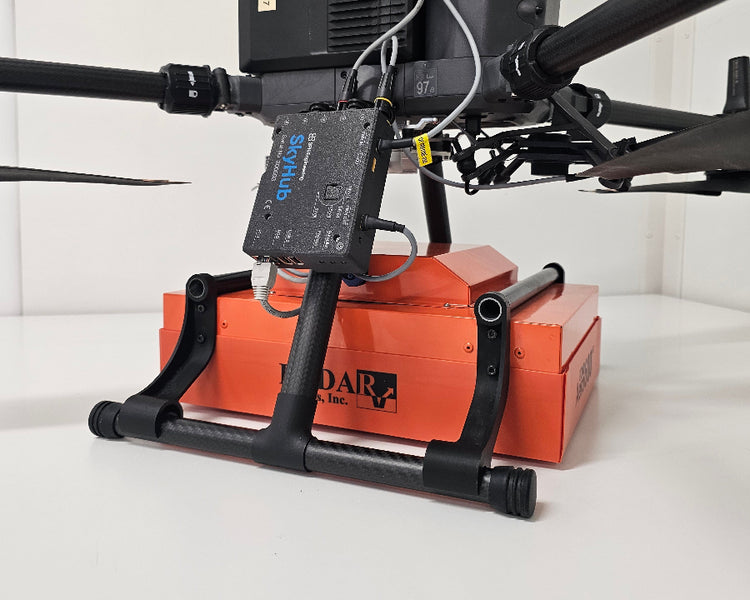

  • Mounting kit for fixing the GPR system to the DJI M400 or M300/M350 drone, mounts for other drone types can be provided upon request

Specifications

Type

Single-channel with shielded antenna

Central Frequency

600 MHz

Operating Bandwidth

300–950 MHz (-12 dB)

Sampling Method

Real-Time Sampling (RTS) with high hardware stacking

Samples per Scan

Selectable: 256 / 512 / 1024 / 2048 / 4096 / 8192

Sample Rate

Up to 1,280,000 samples/second

(dependent on hardware stacking)

Scan Rate

Up to 2,500 scans/second

(dependent on hardware stacking)

Sample Output

32-bit digital raw data

Time Range per Sample

Selectable: 71 ps / 125 ps / 179 ps / 250 ps / 500 ps / 625 ps / 714 ps / 1 ns

Depth Capability

Up to 4 m in average soil

Up to 2 m with antenna elevated at 0.6 m

Data

Format: Standard Geophysical SEGY (.sgy)

Features: Geotagged traces

Environmental

Operating Temperature: -20°C to 60°C (internal)

Humidity: Up to 96% non-condensing

Ingress Protection:

• IP68 in protective transport box (ground surveys)

• IP52 in airborne configuration

Mechanical

Dimensions (L × W × H)

• 34 × 25 × 13 cm (airborne configuration)

• 52 × 43 × 21 cm (protective transport box)

Weight

• 1.5 kg (airborne, without mounting kit)

• 1.7 kg (airborne, with drone mounting kit – M400/350)

• 6.5 kg (with protective transport box)

Power / Battery

Airborne Variant

• Powered by drone main battery via standard payload power socket

Ground Surveys

• Integrated battery in protective box

• Operating time: up to 12 hours

• Battery capacity: 99 Wh Li-Ion
