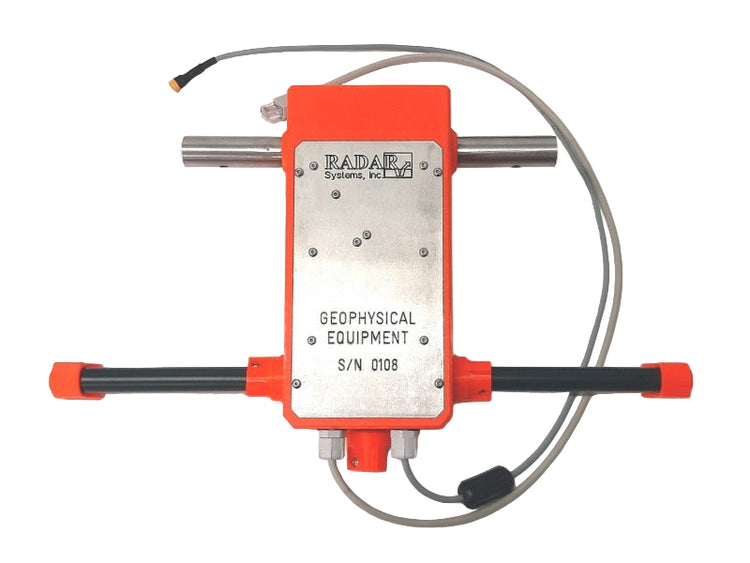

RadSys Zond Aero LF GPR system

SPH EngineeringSKU: IS-RS-ZOND-AERO-LF

Applications

The Zond Aero LF (Low Frequency) Ground Penetrating Radar (GPR) system is designed for deep subsurface investigations, especially in geophysicalarchaeological, and engineering applications. Its low-frequency antenna allows for greater penetration depth, though with lower resolution compared to high-frequency systems.

Request a Quote

In light of all the current implemented tariffs in place, all quotes are subject to tariffs upon delivery.

The manufacturer does not allow us to advertise this product's price online. Please use the form button below or Call +1 (844) 474-8833 Our team will be happy to provide and answer any questions you might have.

Have questions? Want to see sample footage or data? We're here to help. Free consultations conducted by our specialists.

This Product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Special Orders over $5000.00 require payment by Wire Transfer or ACH.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

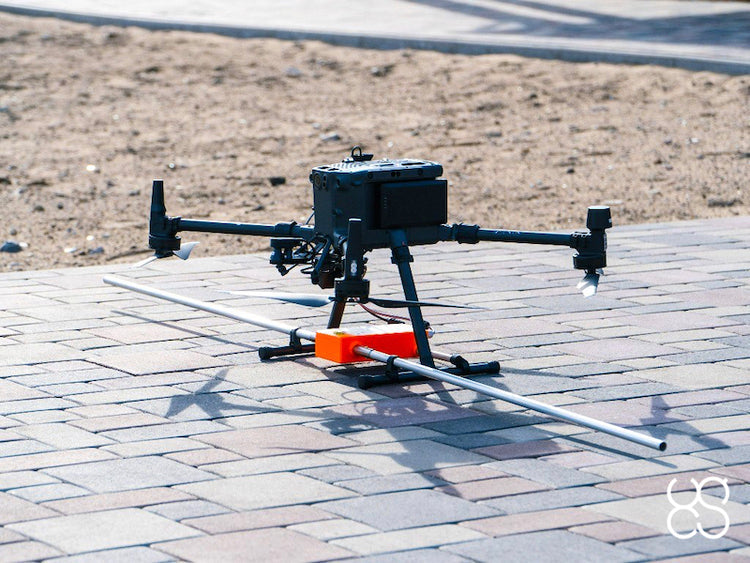

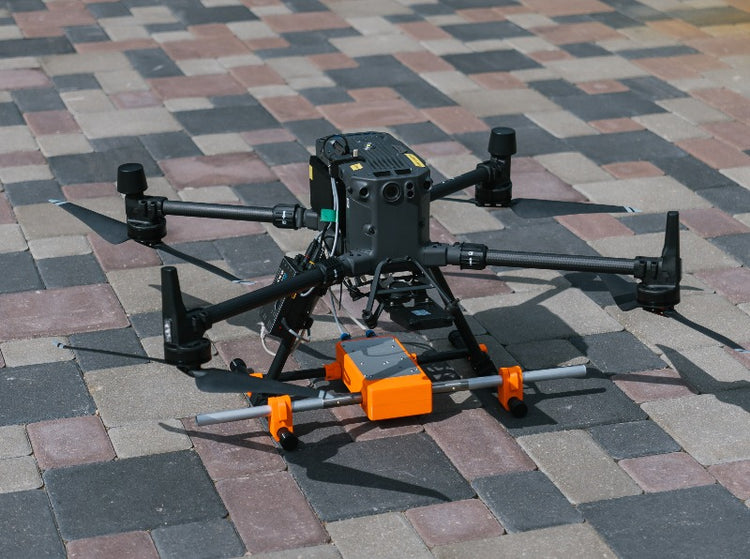

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M400/M300/M350 RTK.

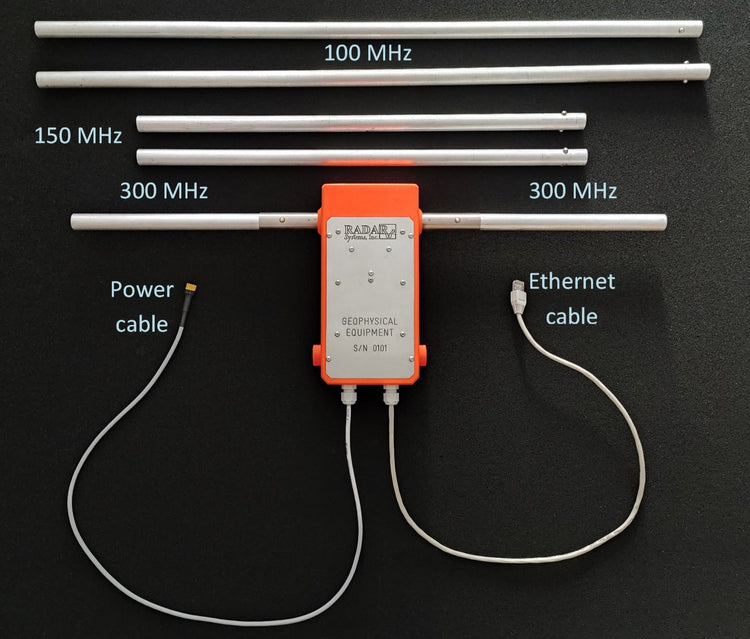

Zond Aero LF is extremely customizable GPR system in terms of available frequencies, it was tested with antennas in the range 50...400MHz making it most versatile system in our portfolio. By default, it comes with 3x sets of dipoles for the 300, 150, and 100 MHz. Dipoles for other frequencies are available by request OR you can even cut supplied dipoles to get required center frequency for your GPR!

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

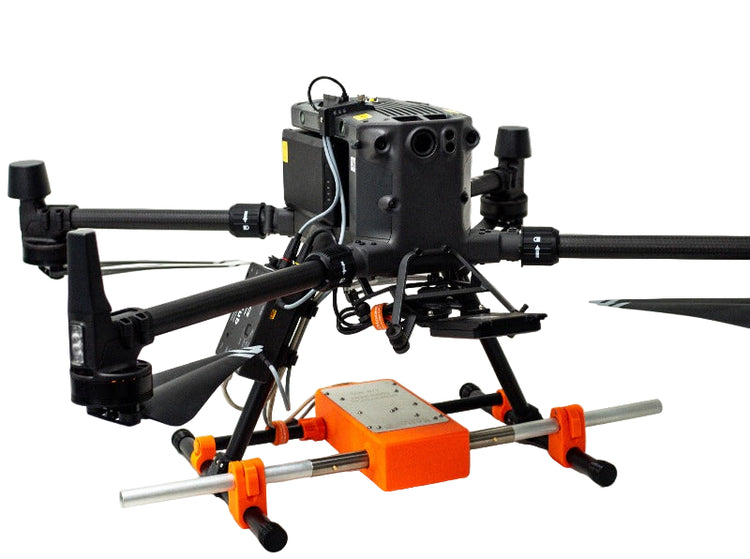

Includes a transportation box and mountings for the DJI M400 or M300/M350 RTK drone. Mounts for other types of drones are available upon request.

The user is responsible for checking the suitability of a given GPR model for use in a particular country.

Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set. Please ask for the quote.





  • Zond Aero LF GPR system with 100, 150, 300 MHz center frequency antennas
  • Prism 2 Data Acquisition/Processing software

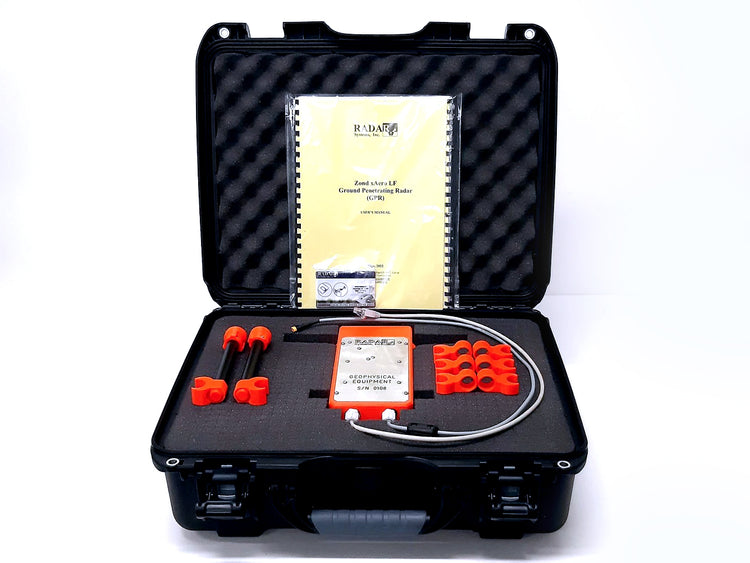

  • Transport case for GPR controller
  • Tube for antennas
  • Mounting kit to fix GPR system on the DJI M300/M350 RTK drone or M400

Technical Specifications

Type

Single-channel Ground Penetrating Radar (GPR) system

Unshielded dipole antenna

Central Frequency

100 / 150 / 300 MHz (based on antenna used)

Custom frequencies available upon request (50–400 MHz)

Operating Bandwidth

• 50–200 MHz

• 75–300 MHz

• 150–600 MHz

(-12 dB)

Sampling Method

Real-Time Sampling (RTS) with high hardware stacking

Samples per Scan

Selectable:

256 / 512 / 1024 / 2048 / 4096 / 8192

Sample Rate

Up to 1,280,000 samples/second

(dependent on hardware stacking)

Scan Rate

Up to 2,500 scans/second

(dependent on hardware stacking)

Sample Output

32-bit digital raw data

Time Range per Sample

Selectable:

18 ps / 36 ps / 71 ps / 89 ps / 125 ps / 143 ps /

179 ps / 250 ps / 357 ps / 500 ps / 625 ps / 714 ps /

1 ns / 1.25 ns / 2.5 ns

Depth Capability

Up to 20 m in average soil

Up to 10 m with antenna elevation under 3 m

Data

Format: Standard Geophysical SEGY (.sgy)

Features: Geotagged traces

Environmental

Operating Temperature: −20°C to 60°C (internal)

Humidity: Up to 96% non-condensing

Ingress Protection:

• IP68 (protective transport box)

• IP52 (airborne configuration)

Mechanical

Dimensions (L × W × H)

GPR Controller: 23 × 25 × 5.5 cm

Dipole Antenna Lengths

• 100 MHz: 0.75 m

• 150 MHz: 0.50 m

• 300 MHz: 0.25 m

Weight

• 0.8 kg – GPR controller with drone mounting

• 0.1 kg – 300 MHz antenna

• 0.2 kg – 150 MHz antenna

• 0.4 kg – 100 MHz antenna

Power / Battery

Airborne Variant

Powered by the drone’s main battery via payload power connection
