UgCS - GPR Bundle: Radar Systems Zond Aero 500 GPR

SKU: GPR-system-aero500-bundle
Price
$33,194.99
Special Order - This item is a special order and delivery will be longer than normal. You can still order this product, and it will be shipped to you as soon as stock arrives.

Zond Aero 500 GPR plus all required components and software for use with DJI M300 (drone not included).

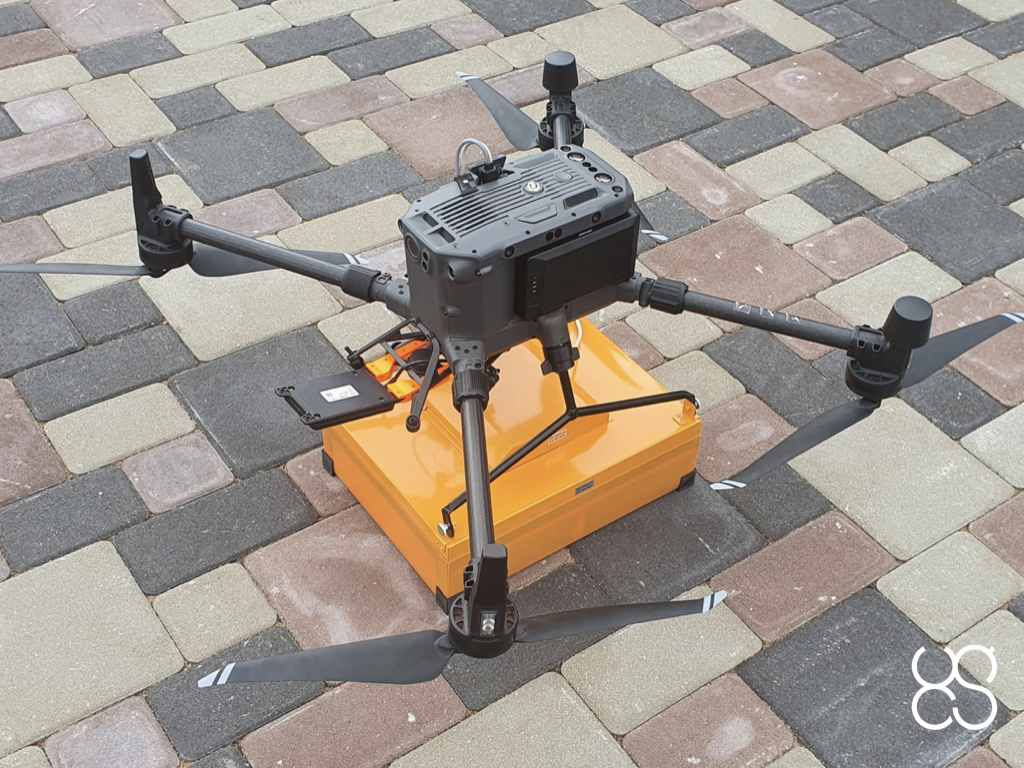

Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Includes a transportation box and mountings for the DJI M300 RTK

FCC Code: 2AUQQ-ZONDAERO500

IC Code: 25515-ZONDAERO500

Type Single-channel with shielded antenna
Center frequency 500 MHz
Operating bandwidth 200-900 MHz (-12 dB)
Samples 512 per trace
Sample rate 25600 samples/second
Scan rate 50 scans/s
Sample output 16-bit digital raw data
Time range Selectable time range 50, 100, 200 or 300ns
Depth Up to 4 meters in average normal soil with 100ns time range
Data format Standard Geophysical SEGY Data Format (.sgy) with traces geotagging
DOCUMENTATION & DATA SETS
Data Sheet
User Manual
Data Samples
ENVIRONMENTAL
Temperature -20°C to 60°C internal temperature
Humidity 96% non-condensing
Ingress protection IP68 in a protective box (used for transportation and for ground surveys) IP52 in airborne variant
MECHANICAL
Size (L x W x H)
  • 41 x 31 x 16 cm - airborne configuration
  • 52 x 43 x 21 cm - in protective case
  • 71 x 45 x 28 cm – carton box for delivery
Weight
  • 2.1 kg - airborne configuration without mounting kit for the drone
  • 7.1 kg – in protective case
  • 10.0 kg – in cardboard box for delivery
BATTERY
Airborne variant DJI M300 RTK drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload
Ground surveys The battery is integrated into a protective box, operating time up to 12 hours 99 W/h Li-Ion


In The Box

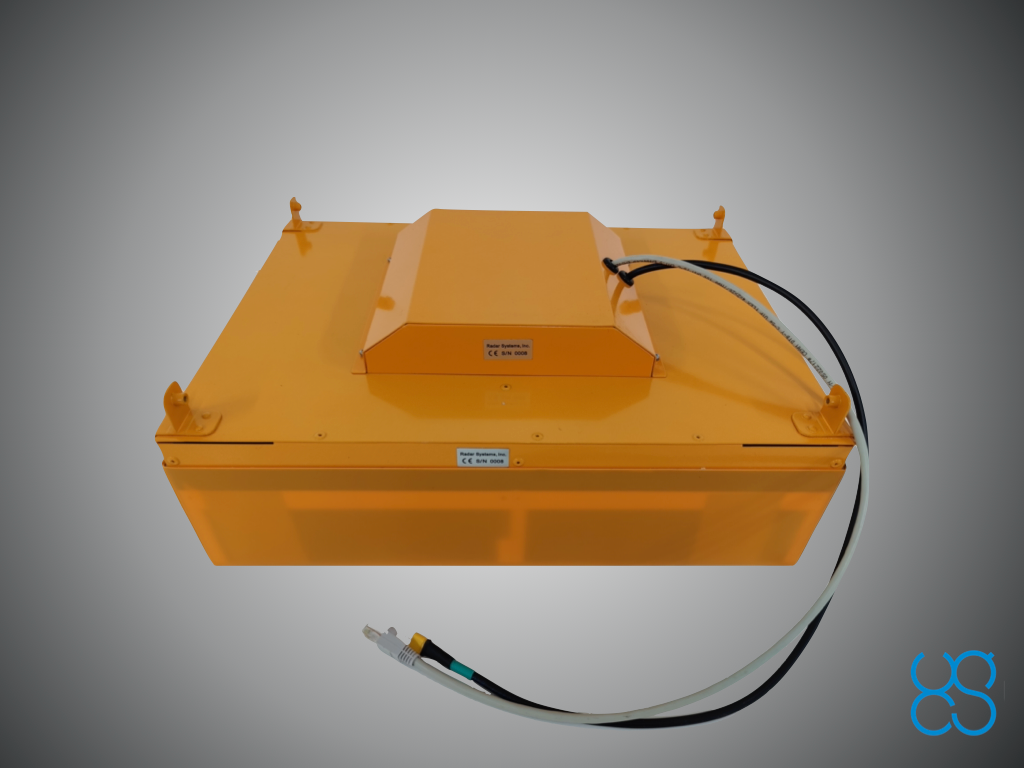

Zond Aero 500 GPR system with 500 MHz center frequency antenna
Prism 2 Data Acquisition/Processing software
NANUK protective case (also used for ground surveys)
99 W/h Li-Ion battery integrated into the case (used for ground surveys only)
Wi-Fi router integrated into the case (used for ground surveys only)
Charger
Tow rope for terrestrial surveys
Mounting kit to fix GPR system on the DJI M300 RTK or M600/M600 Pro drone
Skyhub with GPR support
Cables
Altimeter
Terrain Following Software
GPR Processing Software (Prism 2)
